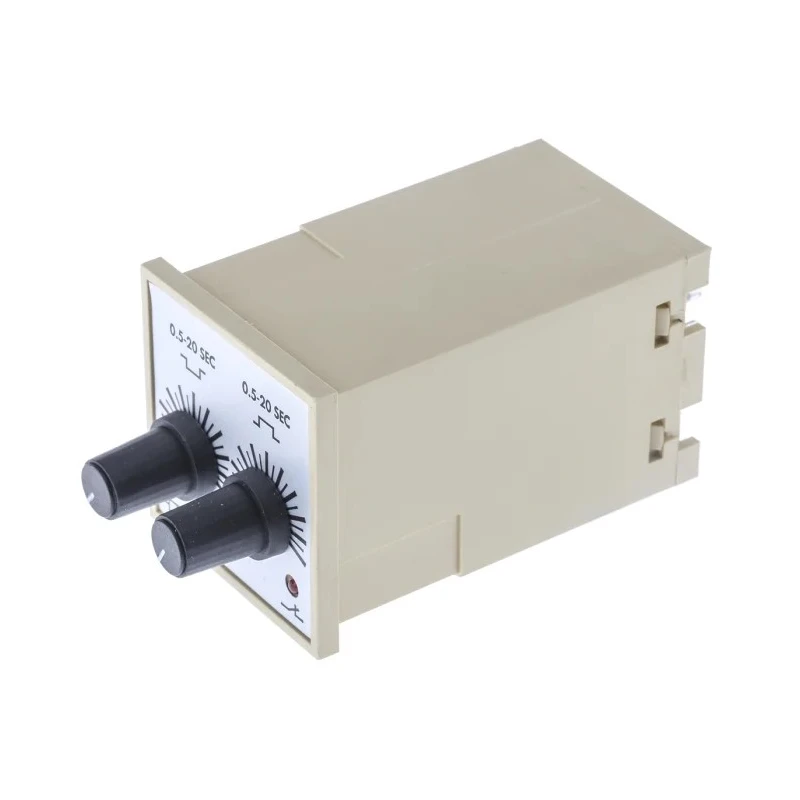

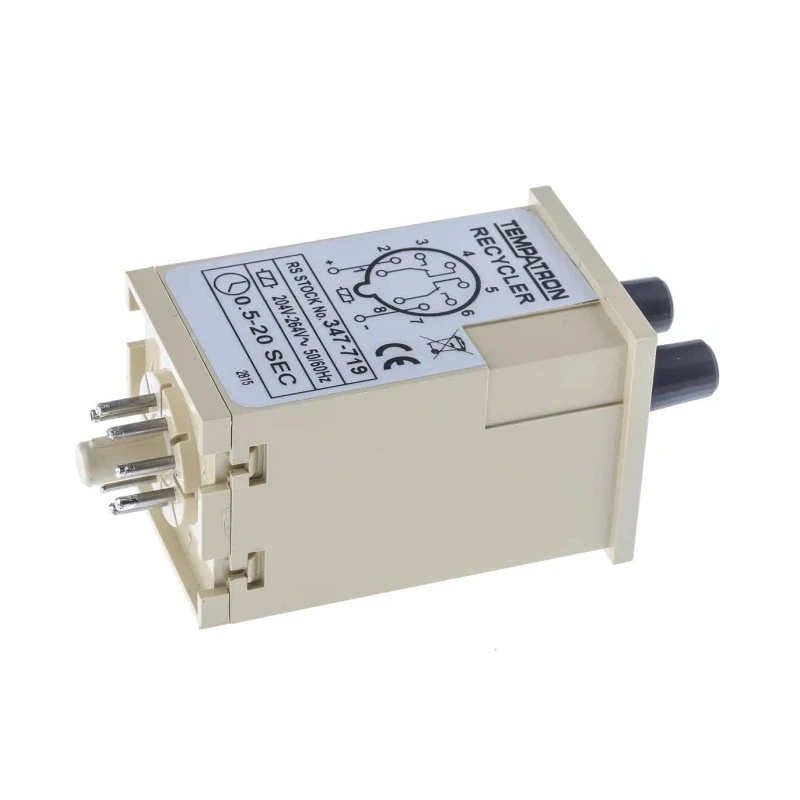

Tempatron FBD Series DIN Rail, Panel Mount Timer Relay, 2-Contact, DPDT Switch, 230V AC, 0.5 to 20 s FBDC20SLP20SLP230VAC

Free Delivery in India | Lowest Global Shipping Charges

Tempatron FBD Series DIN Rail, Panel Mount Timer Relay, 2-Contact, DPDT Switch, 230V AC, 0.5 to 20 s FBDC20SLP20SLP230VAC

Name: Tempatron FBD Series DIN Rail, Panel Mount Timer Relay, 2-Contact, DPDT Switch, 230V AC, 0.5 to 20 s FBDC20SLP20SLP230VAC
Brand: Tempatron
SKU: 294727
Price: 137.32 USD
Availability: InStock



Category Timer Relay Brand Tempatron Condition New

Specifications

Country of Origin	United Kingdom
Brand	Tempatron
Height	106mm
Function	Multifunction
Length	48mm
Model	FBDC20SLP20SLP230VAC
IP Rating	IP40
Mode	Other
Width	48mm
Mount Type	DIN Rail, Panel Mount
Series	FBD
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.5 to 20 s
Terminal type	8-Pin
Standards/Approvals	EN/IEC
Number of Contacts	2
Number of Timer Functions	1
Contact Current	10A
Timing Adjustment	Knob
Supply AC Voltage	230V ac

Key Features

Features a time range adjustment from 0.5 to 20 seconds for flexible timing applications.
Equipped with 2 contacts and a double-pole double-throw (DPDT) switch configuration for versatile control.
Mounts easily on DIN rail or panel for convenient installation in electrical enclosures.
Built to operate within -10°C to 60°C temperature range suitable for various industrial environments.
IP40 rated for protection against solid objects larger than 1mm but not water resistant.
Timing is adjustable via a knob allowing user-friendly manual configuration.
Contact current rated at 10A ensuring reliable switching of moderately powered circuits.
Compact dimensions of 48mm width, 48mm length, and 106mm height optimize space usage.

Product Description

Tempatron FBDC20SLP20SLP230VAC is a multifunction timer relay designed for DIN rail and panel mounting applications, operating at a supply voltage of 230V AC. The device provides a timing range from 0.5 to 20 seconds adjustable by a convenient control knob, making it ideal for various automation and control tasks in industrial settings.

This timer relay features 2 contacts configured as DPDT switches allowing the control of two separate circuits with a single device. It comes with an 8-pin asymmetrical octal base terminal for straightforward wiring. The relay is rated for a contact current of 10A and supports operation in temperature ranges from -10°C to 60°C, suitable for typical electrical cabinets and control panels.

The unit is IP40 rated, providing protection against solid objects larger than 1 millimeter. It complies with EN/IEC standards including EN 50081-1, EN 50082-1, and EN 61010-1, which certify its electrical safety and electromagnetic compatibility.

The compact form factor with dimensions 48mm width, 48mm length, and 106mm height facilitates mounting in space-constrained environments. It is manufactured in the United Kingdom, reflecting high production standards and reliability.

This timer relay finds extensive use in industrial automation, manufacturing process control, HVAC systems, and electrical distribution panels where reliable timed switching is critical.

Time range adjustable from 0.5 to 20 seconds via knob. DPDT contact configuration with 2 contacts rated at 10A. DIN rail and panel mount design for versatile installation. IP40 ingress protection for solid object resistance.

Compliance with EN/IEC electrical safety and EMC standards. Operating temperature range of -10°C to 60°C. Compact dimensions 48mm x 48mm x 106mm. Eight-pin asymmetrical octal base terminal type. Constructed with AgCdO contact material for durability.

Explore EnvMart for a comprehensive range of Tempatron Timer Relays and automation components designed for precise and reliable control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The timing range of this model is adjustable from 0.5 to 20 seconds, allowing for flexible timing applications.

It features a double-pole double-throw (DPDT) contact configuration with 2 contacts, enabling control of two separate circuits.

The contact current is rated at 10A, making it suitable for switching moderately powered circuits.

The compact dimensions of this model are 48mm in width, 48mm in length, and 106mm in height.

It can be mounted on DIN rail or panel, providing versatility for installation in various electrical enclosures.

This model operates within a temperature range of -10°C to 60°C, suitable for various industrial environments.

It is equipped with an 8-pin asymmetrical octal base terminal for straightforward wiring.

Yes, it complies with EN/IEC standards including EN 50081-1, EN 50082-1, and EN 61010-1, ensuring electrical safety and electromagnetic compatibility.

The unit has an IP40 rating, providing protection against solid objects larger than 1mm, but it is not water resistant.

Timing is adjusted via a convenient control knob, allowing for user-friendly manual configuration.

This timer relay is manufactured in the United Kingdom, reflecting high production standards.

It is suitable for various applications in industrial automation, manufacturing process control, HVAC systems, and electrical distribution panels.
