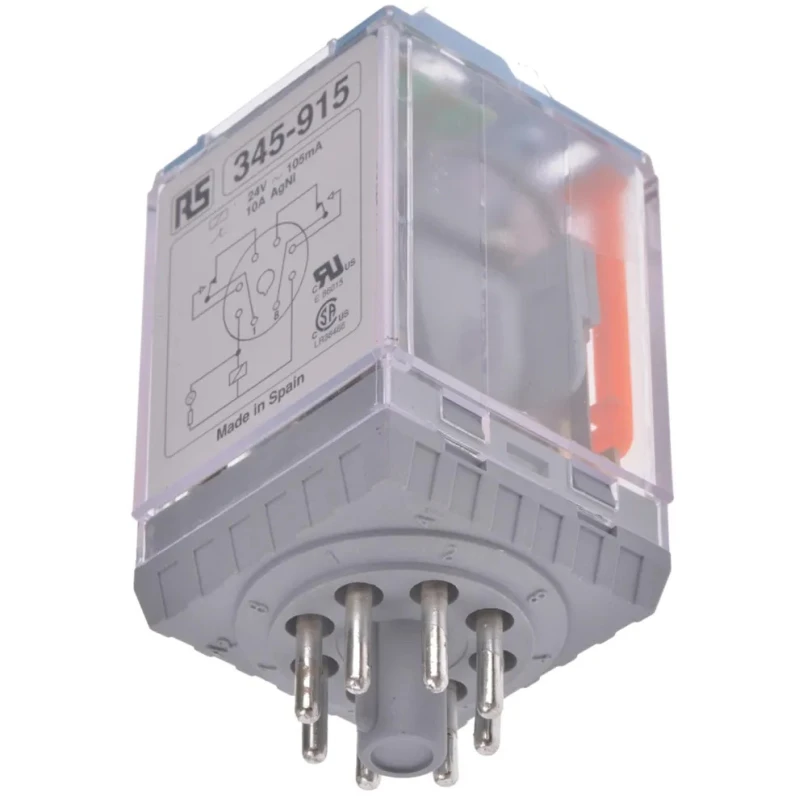

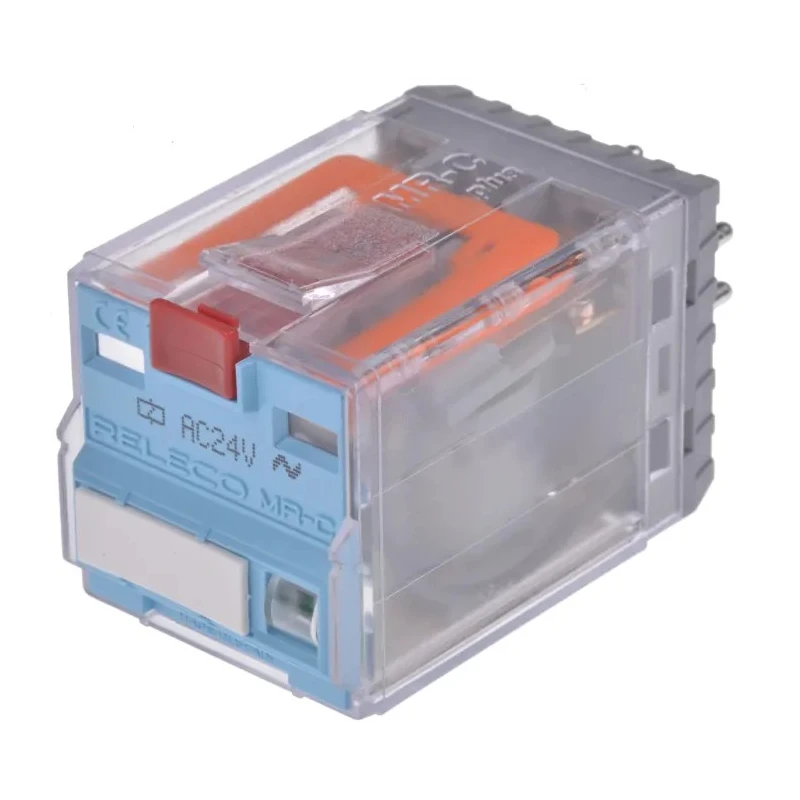

Releco Power Relay 24V AC Coil 10A Switching Current DPDT MRC Series Plug-In Model C2-A20X / AC 24V

Releco C2-A20X / AC 24V power relay is a high-quality industrial electrical component designed for efficient switching control in automation and power systems. It features a 24V AC coil voltage and is capable of handling 10A switching current with a DPDT (double-pole double-throw) contact configuration, ideal for various commercial and industrial switching needs.

This MRC series relay comes with a plug-in terminal design allowing quick and secure installations, reducing downtime. It operates reliably within a wide temperature range from -40°C to 60°C, making it suitable for harsh industrial environments.

The relay supports switching AC voltages up to 240V AC and has a coil resistance of 67Ω, with coil power rated at 2.5kW. Contact materials are made of silver alloy for excellent electrical conductivity and longevity.

Physically, the relay measures 35mm in length and width, and 66mm in height, providing a compact footprint for tight electrical panels and machinery.

Additional features include a dual function color-coded test button that can be pushed to test or lifted to latch, mechanical flag indicator to visually confirm contact status, and a coil LED indicator for operational monitoring. These features enhance the ease of maintenance and troubleshooting in electrical circuits.

Manufactured in Spain to meet international standards including CSA, EN, IEC, RoHS, and UL compliance, this relay is suitable for application in industrial automation, HVAC control systems, manufacturing machinery, and power distribution boards.

The product is new and is an essential component for reliable electrical switching and control in diverse industrial settings. This MRC series relay is designed for plug-in terminal connection for easy installation. It operates reliably within a temperature range of -40°C to 60°C.

The relay supports switching AC voltages up to 240V AC with a coil resistance of 67Ω. Constructed with silver alloy contact material for enhanced conductivity and durability. Compact dimensions include length 35mm, width 35mm, and height 66mm.

Includes dual function color-coded test button with push to test or lift to latch capability. Mechanical flag indicator and coil LED are standard for operational status indication. Suitable for industrial automation and electrical control applications requiring reliable power relay switching.

Explore more Power Relay options and industrial electrical components at EnvMart for your automation and control needs.
