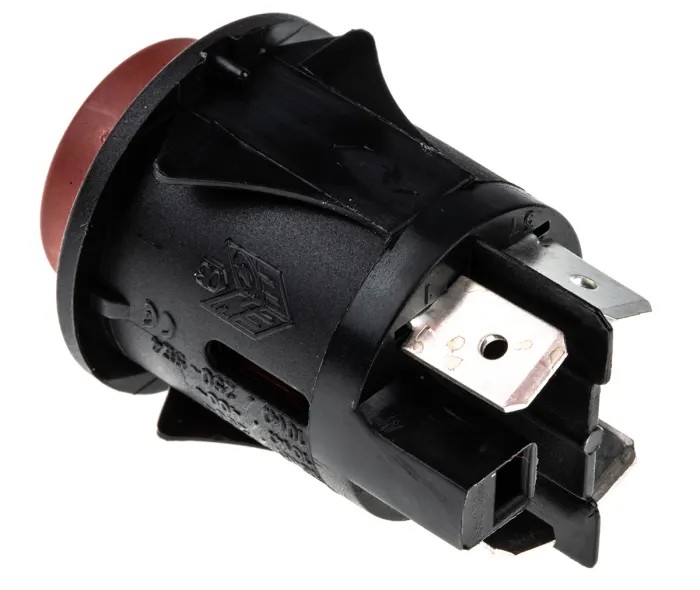

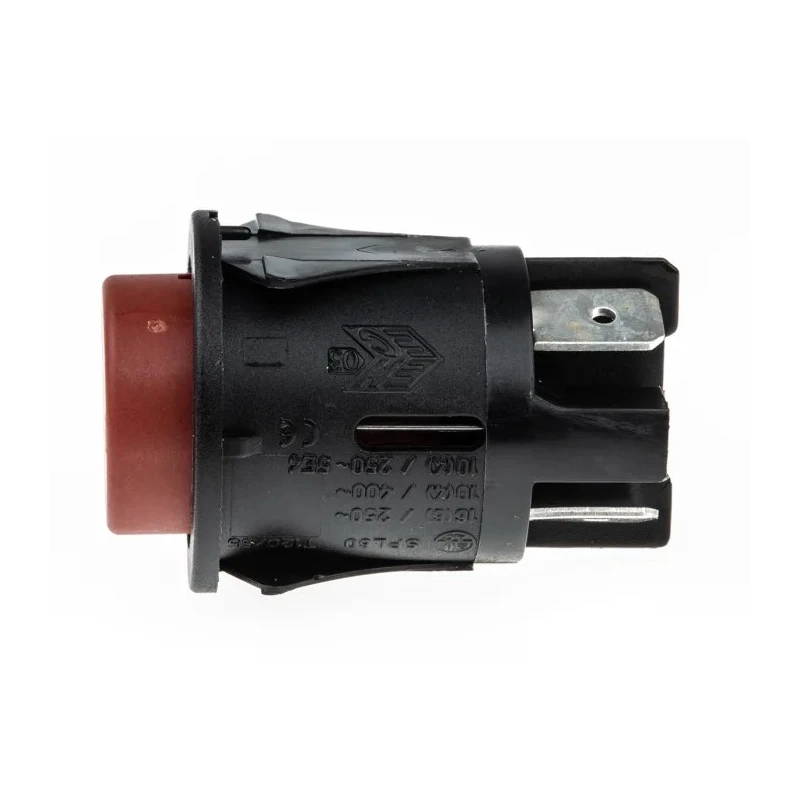

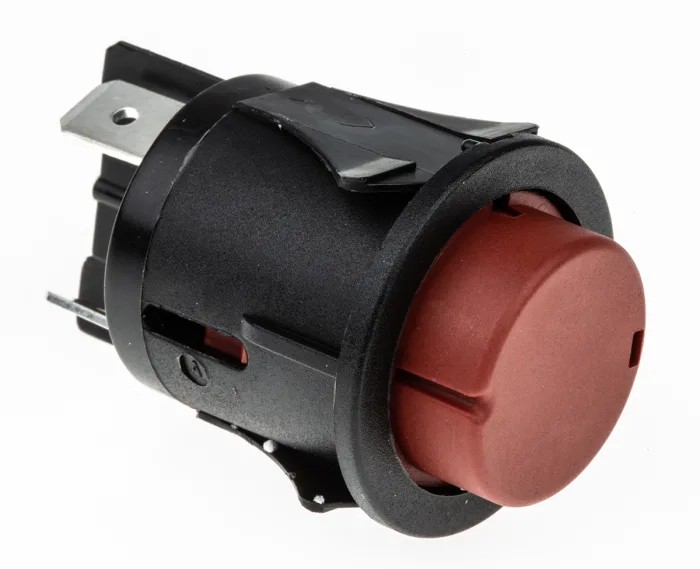

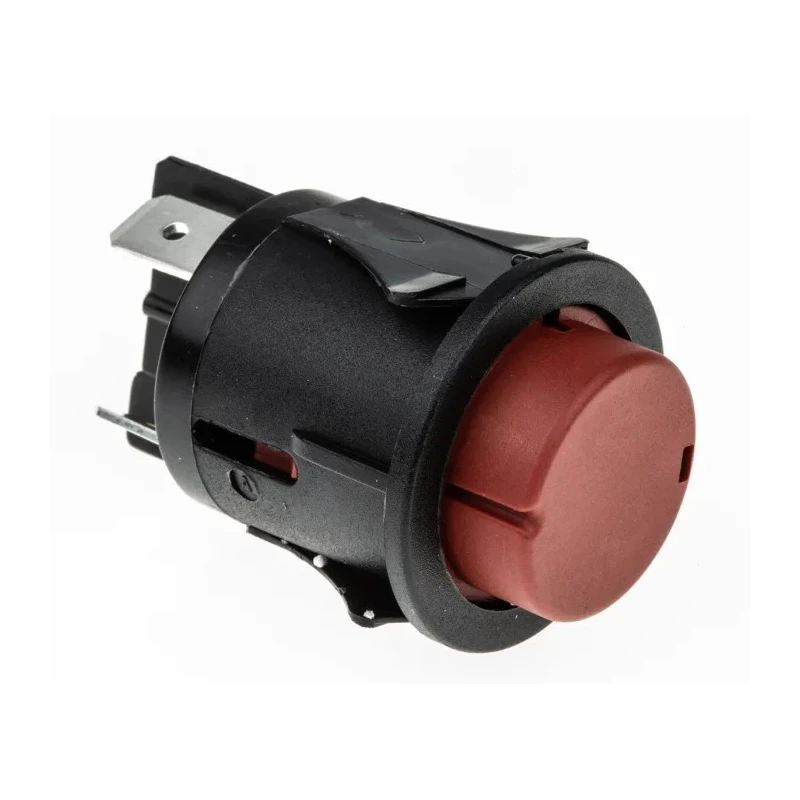

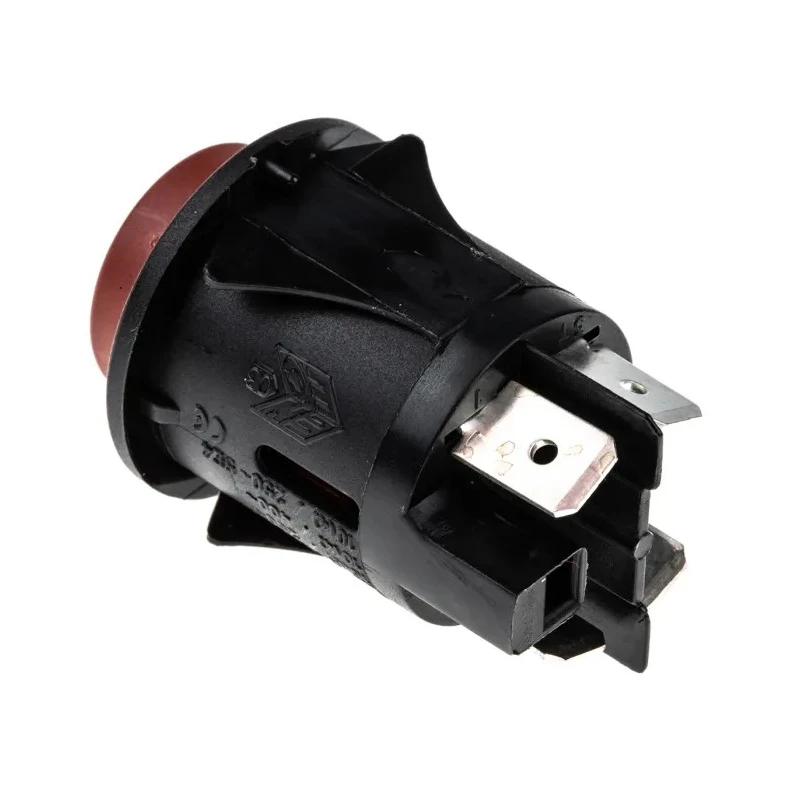

RS PRO Push Button Switch Latching Panel Mount DPST Green LED IP67 250 V ac 319-360

RS PRO 319-360 Push Button Switch is a high-quality latching switch designed for panel mounting with a 25 mm cutout size. It features a Double Pole Single Throw (DPST) contact configuration with a green LED for status indication, providing clear on/off signaling. This switch operates at 250 V ac voltage rating with a contact current of 16A, making it suitable for demanding electrical and automation control applications.

The actuator style is a button type, constructed using self-extinguishing thermoplastic material compliant with UL94V-2 standards, enhancing safety by resisting fire hazards. It is engineered for a mechanical life of over 105 operations guaranteeing long-term reliability in industrial and manufacturing environments.

The product boasts an IP67 ingress protection rating, ensuring that it is fully dust-tight and can withstand temporary immersion in water. This robustness makes it ideal for use in harsh industrial, electrical panels, and automation systems where environmental protection is critical.

Additional technical advantages include silver contacts for improved electrical conductivity and resistance to corrosion. It supports a maximum operating temperature of 120°C, allowing functionality even in high-temperature conditions. The compact design with a panel depth of 34 mm and maximum panel thickness compatibility of 2.5 mm facilitates seamless integration into existing panels.

Designed with industrial and electrical control applications in mind, the RS PRO 319-360 Push Button Switch is perfect for manufacturing plants, laboratory equipment control, HVAC systems, and other commercial uses requiring reliable switch operation combined with environmental protection.

The switch features a latching operation ensuring reliable On-Off control. It has a panel cutout size of 25 mm suitable for compact mounting. Equipped with green LED for clear status indication in systems. Constructed to IP67 rating providing complete protection against dust ingress and water immersion.

Rated for 16A contact AC current at 250 V ac, facilitating high power switching. Buttons are made of self-extinguishing thermoplastic UL94V-2 for enhanced safety. Mechanical life exceeds 105 operations, ensuring durability in industrial use.

Maximum operating temperature of 120°C supports applications in harsh environments. Silver contacts improve conductivity and reliability. Compact depth behind panel is 34 mm with max panel thickness 2.5 mm for flexible installation.
