Microchip 8 bit PIC16F PIC16 Microcontroller 32 MHz 7kB FLASH 16-Pin VFQN PIC16F15224-I/MG

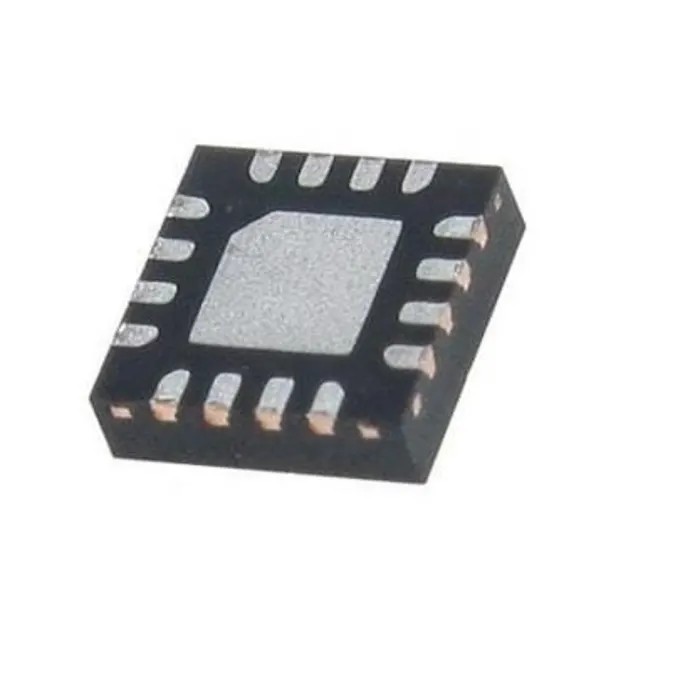

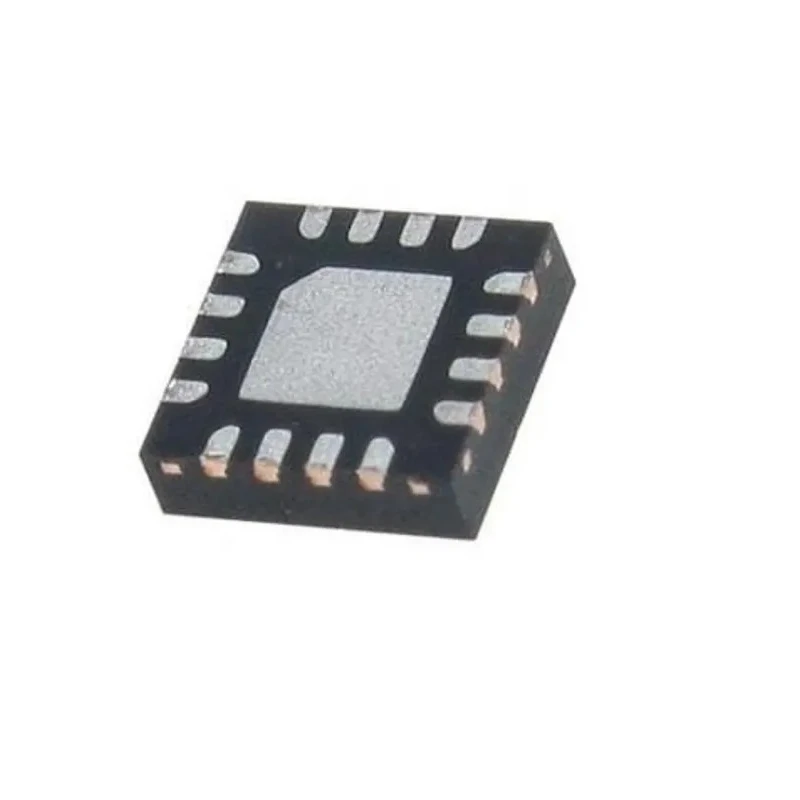

The Microchip PIC16F15224-I/MG is an 8-bit PIC16F microcontroller designed for cost-sensitive sensor and real-time control applications. Featuring a compact 16-pin VFQN surface mount package measuring 3 mm by 3 mm with a height of 900µm, it fits well in space-constrained industrial and commercial electronics.

Operating at a maximum clock frequency of 32 MHz, this microcontroller boasts 7 kB of flash program memory and 512-bit RAM, providing ample capacity for embedded application code and data processing. It supports a broad operating voltage range from 1.8 V to 5.5 V and features 12 programmable I/O pins for flexible peripheral interfacing.

With 9 channels of 10-bit analog-to-digital converters (ADCs), it is well suited for sensor-based and measurement applications requiring precision analog inputs. The device adheres to RoHS standards, ensuring environmental compliance.

This microcontroller operates reliably within an industrial temperature range from -40°C to 85°C and supports a maximum power dissipation of 800 mW, suitable for efficient embedded systems. It utilizes a Reduced Instruction Set Computing (RISC) architecture to enable optimized instruction processing and performance.

Typical applications include embedded control in industrial sensors, real-time automation systems, and compact electronic devices requiring efficient computation and signal interfacing. Its surface mount VFQN package and compact dimensions facilitate integration in high-density PCB layouts.

Features a VFQN 16-pin surface mount package suitable for compact PCB designs. 7 kB of FLASH program memory enables efficient code storage and execution. 8-bit PIC16F device core operates with a 32 MHz maximum clock frequency.

Includes 12 programmable I/O pins to interface with a variety of peripherals. 512-bit RAM supports data processing and temporary storage. Supports a minimum operating voltage of 1.8 V and maximum supply voltage of 5.5 V.

Operating temperature range from -40°C to 85°C for extended environmental tolerance. Incorporates 9 x 10-bit ADC channels for precise analog input conversions. Designed with RISC architecture instruction set for optimized performance.

Maximum power dissipation is 800 mW, ensuring energy-efficient operations. Explore EnvMart's extensive range of Microchip Microcontrollers and semiconductor components for industrial, automation, and embedded system applications.
