Littelfuse Non-Resettable Fuse, Radial Lead 100mA, 250V AC, Fast Acting, Series 370 3700100000

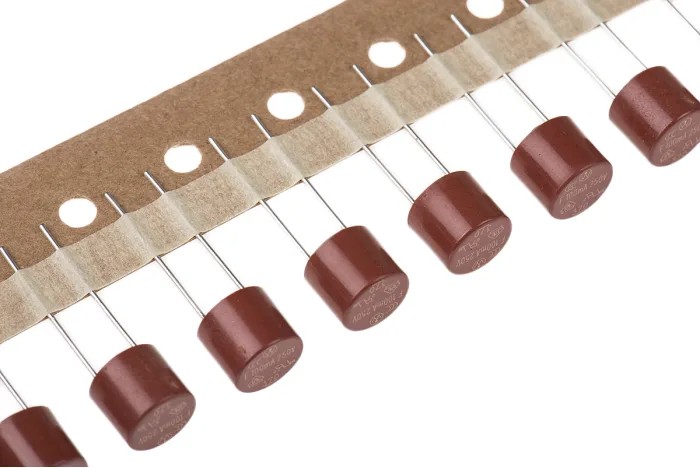

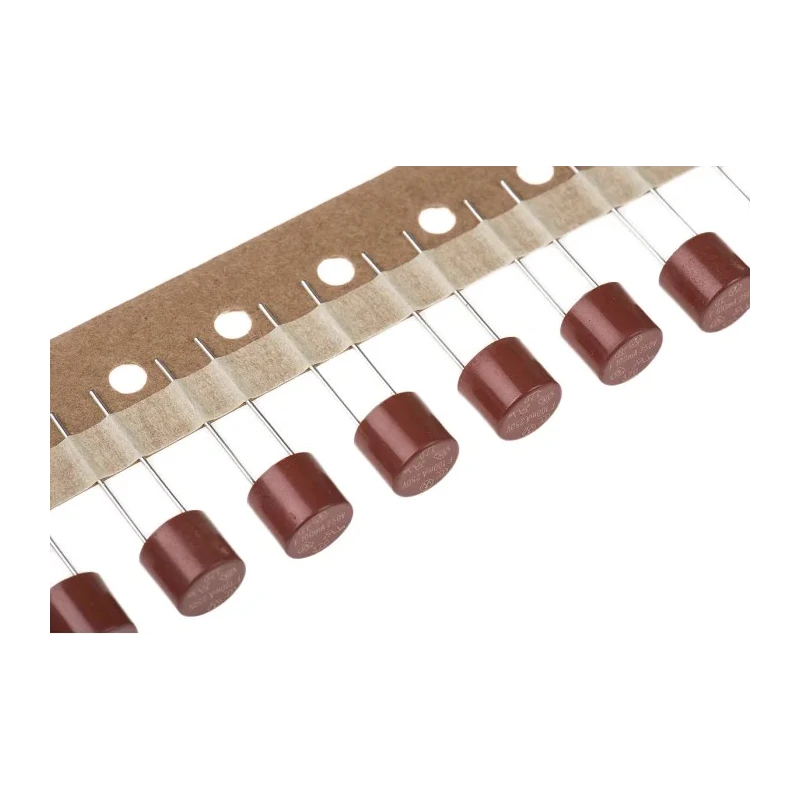

Littelfuse 3700100000 Non-Resettable Fuse is a high-performance, fast acting fuse designed with radial lead orientation. It operates at a current rating of 100mA and voltage rating of 250V AC, making it an essential component for electrical and automation systems requiring precise circuit protection.

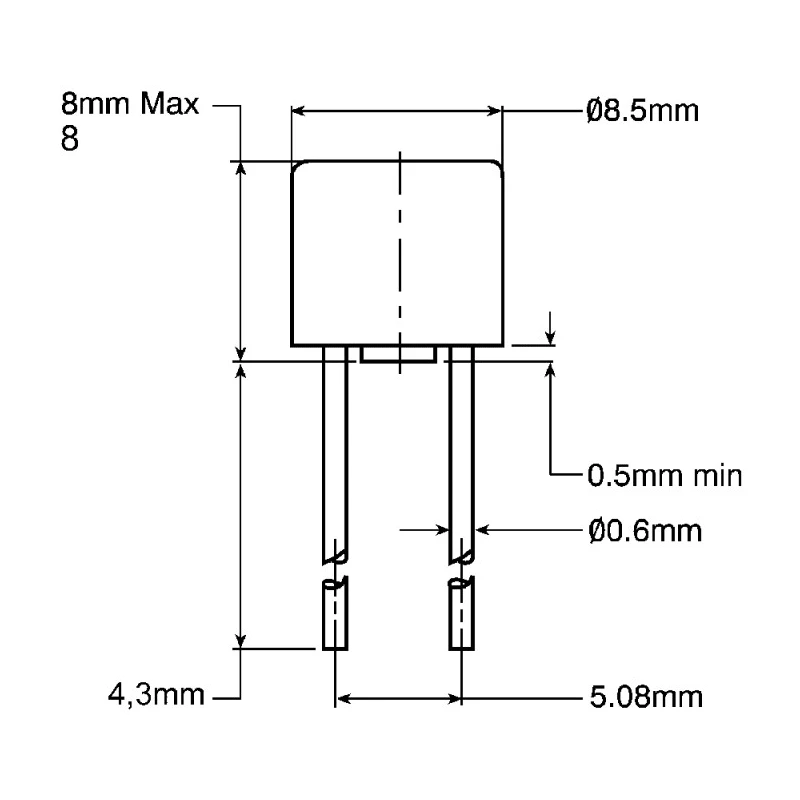

The fuse is constructed with a robust nylon body that provides excellent insulation and durability. It features compact dimensions with a length of 8mm, height of 8mm, and diameter of 8.5mm, allowing it to fit efficiently in tight circuit designs. The radial lead orientation, combined with a lead diameter of 0.6mm and lead length of 18.8mm, facilitates easy soldering or plug-in installation using fuse holders.

Operating reliably within a temperature range from -40°C to 85°C, this fuse offers a breaking capacity of 35A to protect circuits against overloads or short circuits. Its fast acting characteristic ensures rapid response to electrical faults, safeguarding sensitive components in industrial, laboratory, and commercial applications.

The fuse meets stringent international safety and quality certifications including VDE and UL approvals. Suitable for automatic insertion, the Series 370 fuse can be soldered directly or used with compatible fuse holders, enhancing versatility and ease of use.

This Non-Resettable Fuse is widely used in electrical, automation, and industrial equipment for ensuring safe operation and preventing potential damage. Environmentally compliant, it features thermoplastic polyamide bodies that contribute to product safety and reliability.

Constructed with a durable nylon body material ensuring insulation and safety. Radial lead orientation with 0.6mm lead diameter and 18.8mm lead length for easy mounting. Compact dimensions: 8mm length, 8mm height, and 8.5mm diameter for space-efficient installations.

Operating temperature range from -40°C minimum to 85°C maximum for reliable performance. Breaking capacity of 35A suitable for high protection levels in electrical circuits. Certified approvals including VDE and UL guaranteeing compliance and safety standards.

Fast acting fuse type ideal for sensitive electronic components and circuits. Series 370 designed for automatic insertion and direct soldering or use with fuse holders. Explore more Littelfuse protective devices and fuses at EnvMart for dependable industrial and electrical applications.
