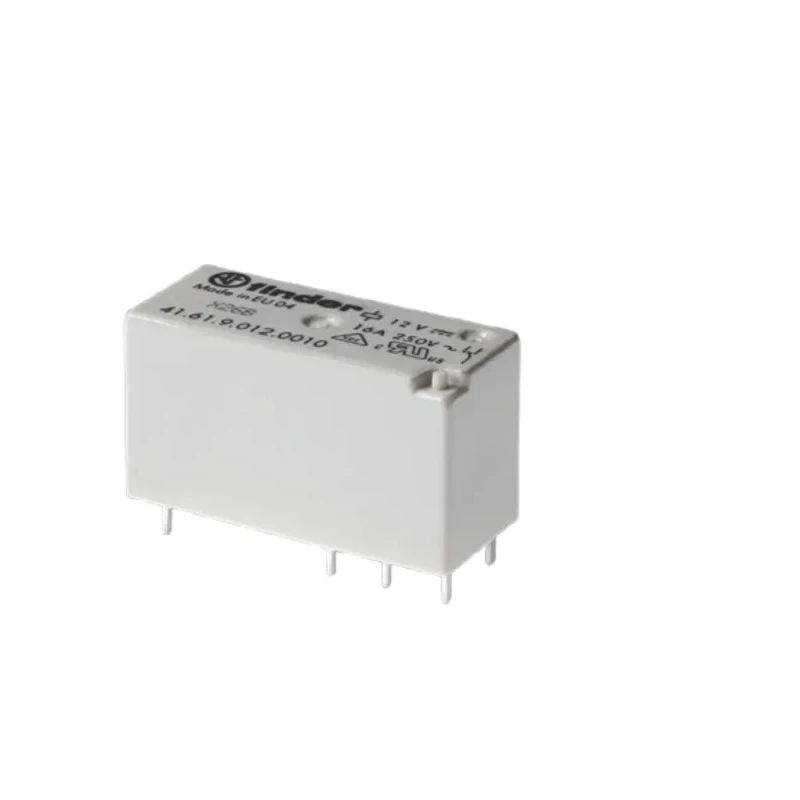

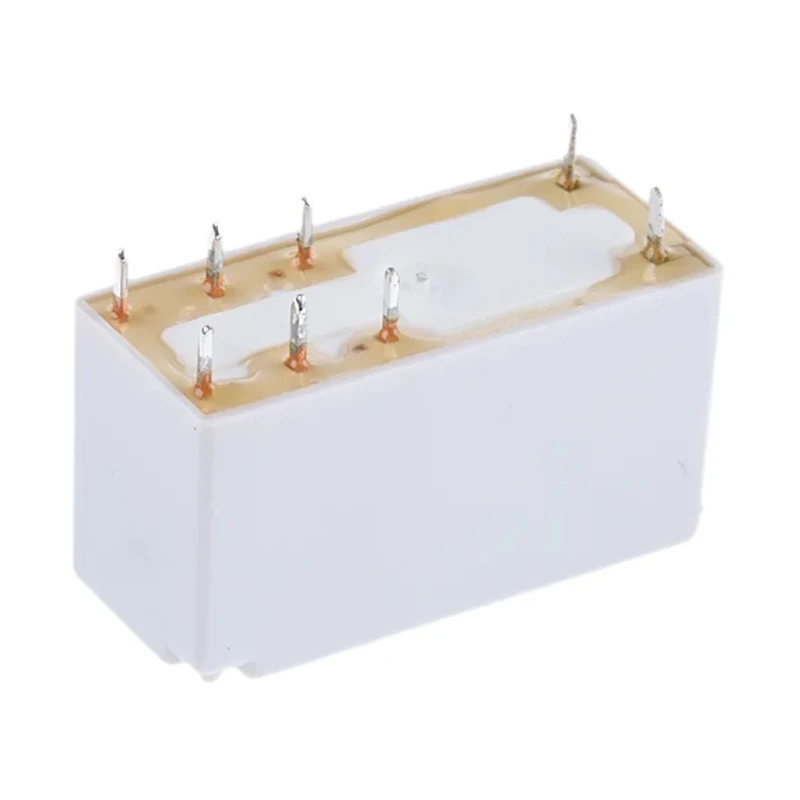

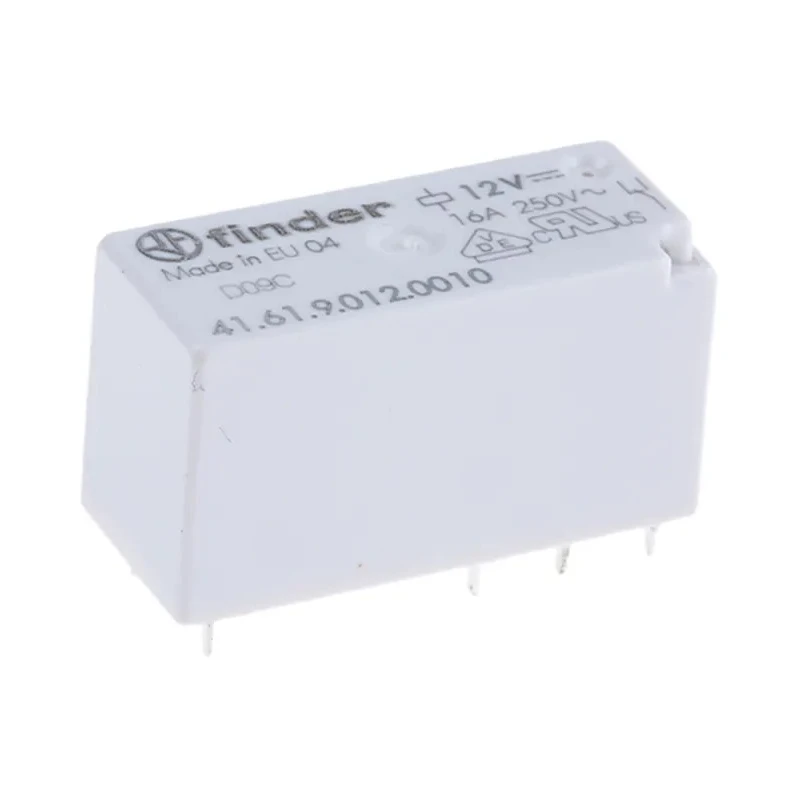

Finder PCB Power Relay 12V DC Coil 16A Switching Current SPDT Model 41.61.9.012.0010

Finder 41.61.9.012.0010 PCB Power Relay is a high-quality relay designed for precise and reliable switching in industrial and automation applications. Featuring a 12V DC coil and a robust 16A switching current, this relay is optimized for printed circuit board (PCB) mounting with through hole solder terminals, providing secure and stable integration into various electronic systems.

The relay employs an SPDT (Single Pole Double Throw) contact configuration, which allows both normally open and normally closed contact options, providing versatility in circuit design. It supports switching AC voltages up to 400V and DC voltages up to 110V, making it suitable for handling high-voltage loads efficiently while maintaining safety standards.

Constructed with silver alloy contacts, the relay ensures high conductivity and durability under frequent switching cycles. The coil resistance is 360Ω, with a coil power rating of 400mW, contributing to its energy-efficient operation within automated systems.

Its compact size of 29mm length, 12.5mm width, and 15.7mm height allows easy installation in space-constrained environments. Rated for operation from -40°C up to 85°C, the relay performs reliably even under extreme temperature conditions encountered in industrial and commercial applications.

Typical applications include use in building automation systems, industrial robotics for precise load control, timer circuits, lighting control, and vending machines requiring trustworthy switching components. The relay's long operational life of up to 50,000 cycles ensures dependable performance over extended periods with minimal maintenance.

This relay operates with a coil voltage of 12V DC, suitable for PCB mounting. Supports a switching current of up to 16A, allowing efficient control of various electrical loads. Configured as Single Pole Double Throw (SPDT) for flexible circuit design options.

Designed to switch voltages up to 400V AC and 110V DC safely. Features through hole solder terminal type for secure PCB integration. Operates reliably within temperature limits from -40°C to 85°C. Compact dimensions facilitate easy integration in various electronic systems.

Silver alloy contacts provide excellent conductivity and long-term durability. Designed for a long life of up to 50,000 switching cycles for reliable operation.

Finder is recognized for its quality and reliability in electrical components, and this PCB Power Relay model 41.61.9.012.0010 upholds those standards, delivering robust performance in demanding industrial and automation environments. Explore more high-quality relays in the Electronics & Electricals relays category on EnvMart.
