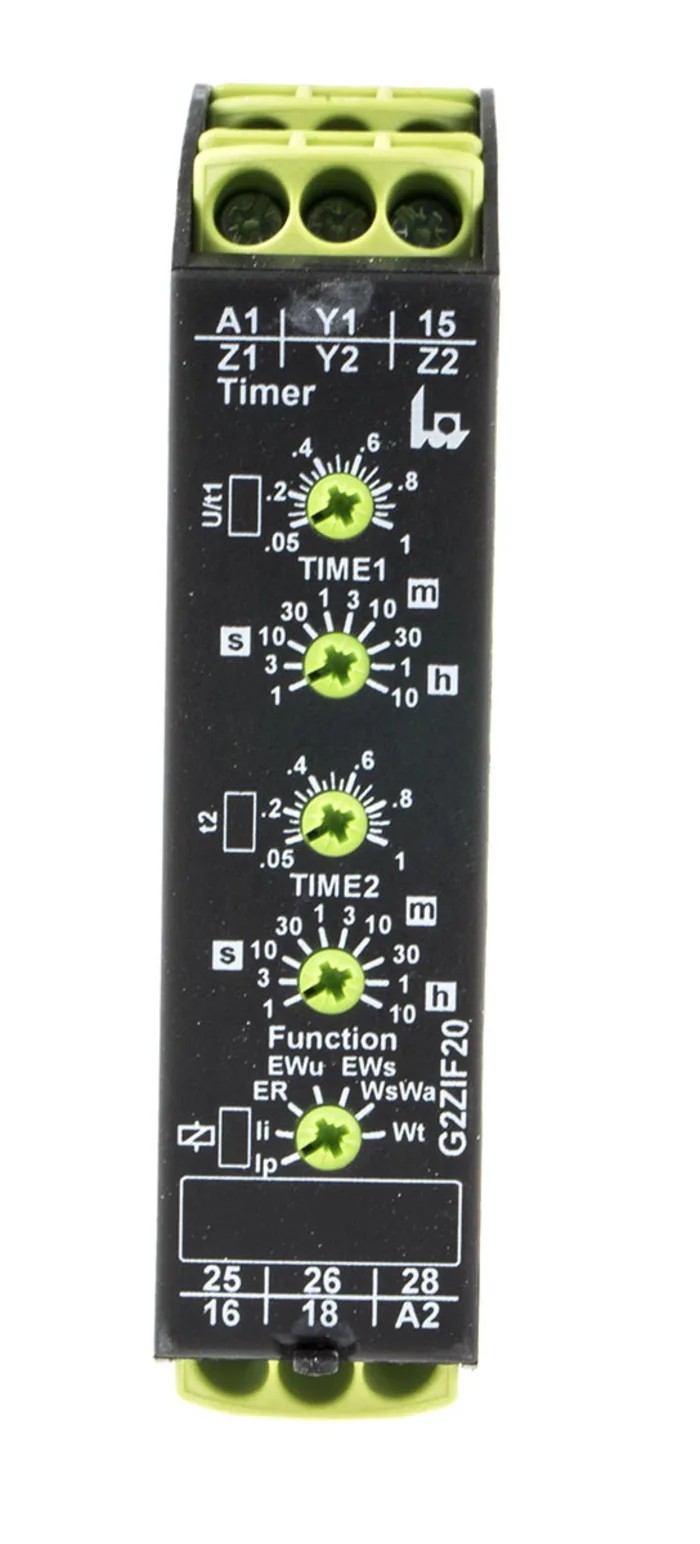

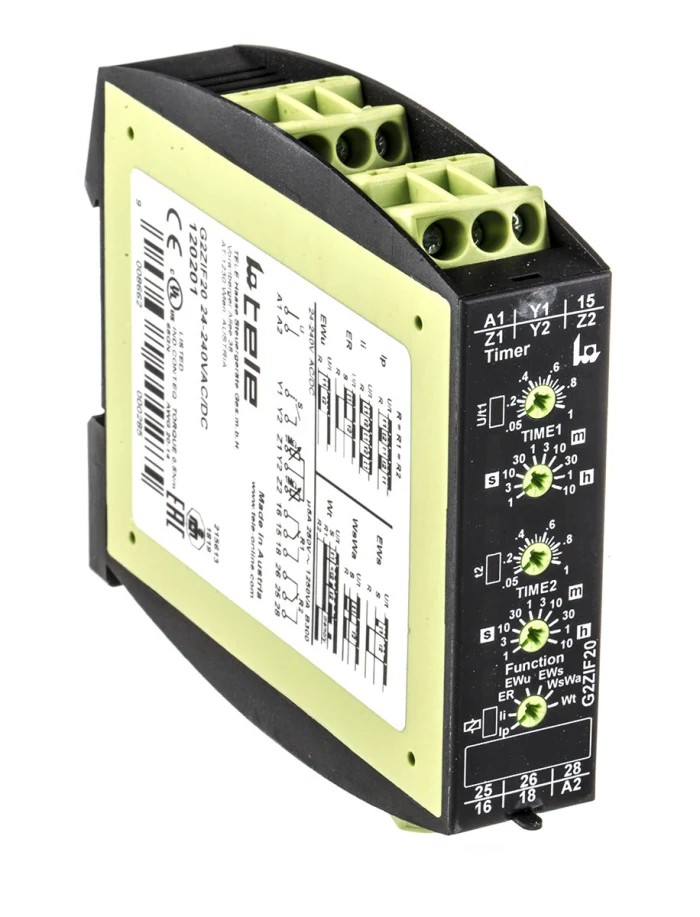

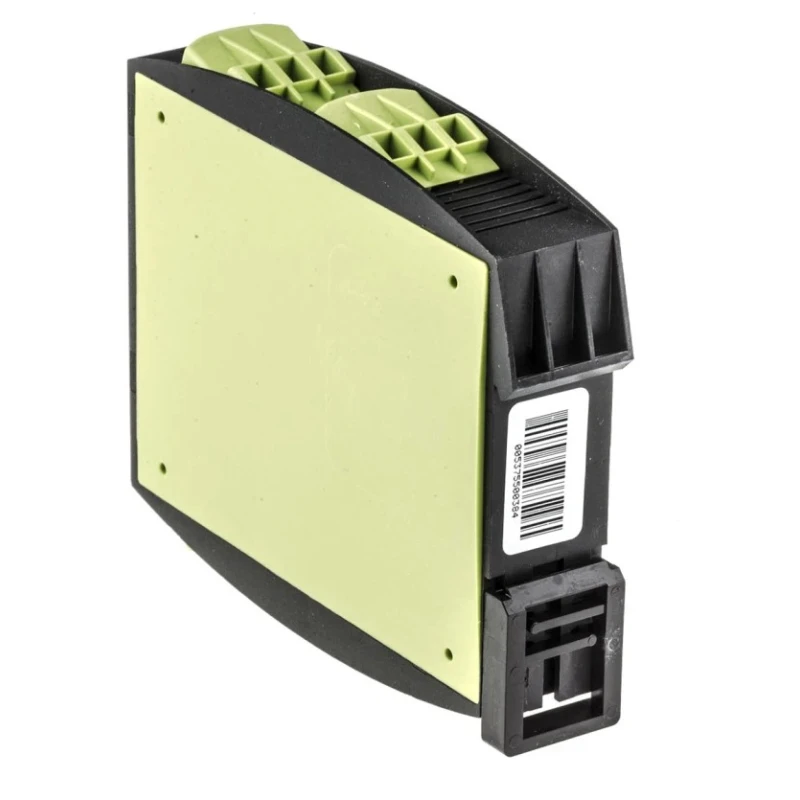

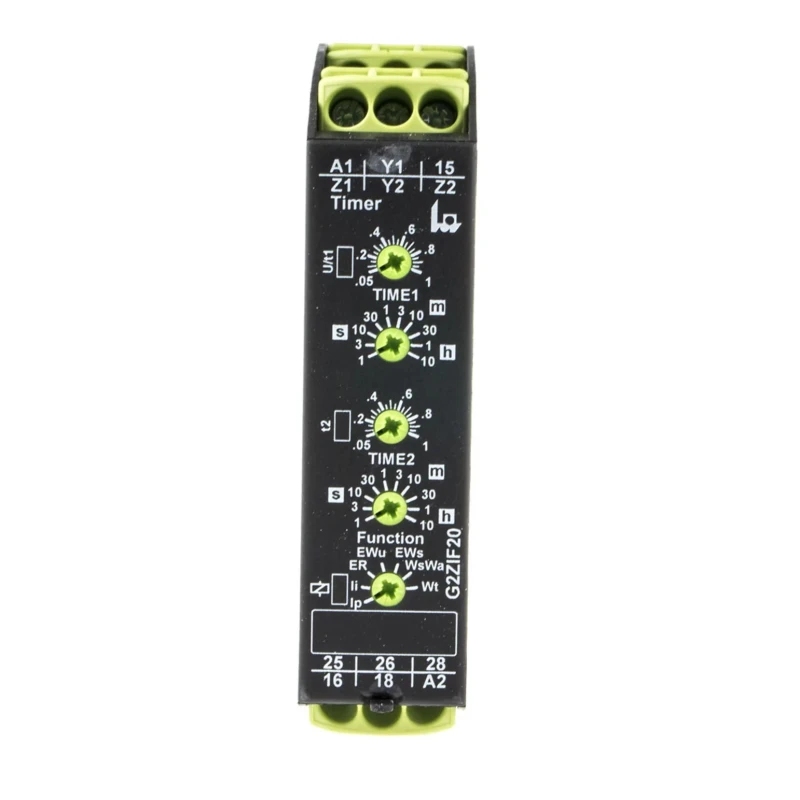

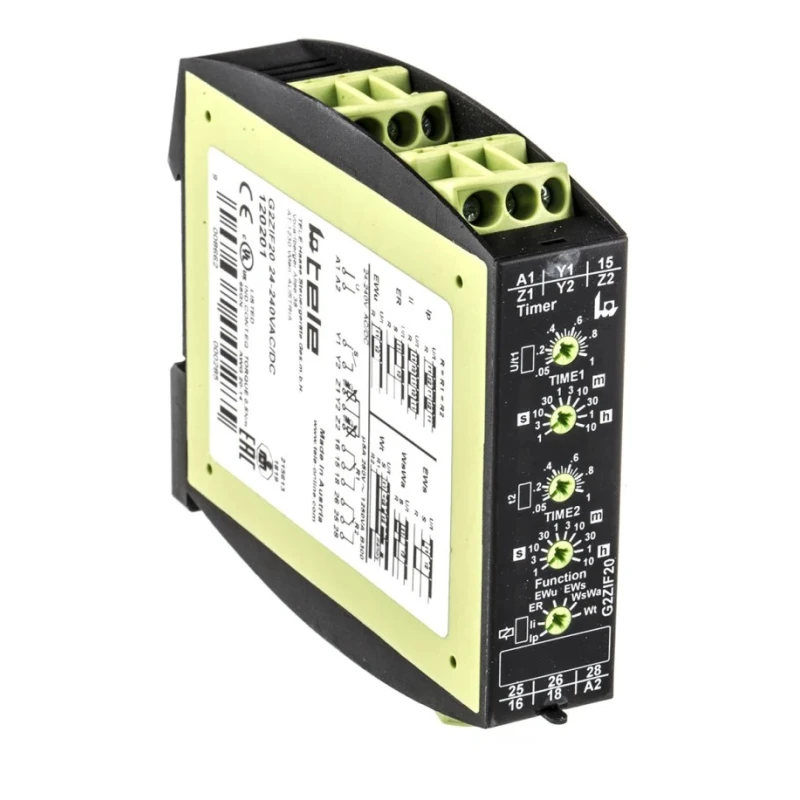

Tele Multifunction DIN Rail Timer Relay 2-Contact DPDT, 24-240 V AC/DC, 10.05 s to 10 h G2ZIF20

Tele G2ZIF20 series multifunction DIN rail timer relay features a robust solid-state compact design, offering high precision operation with a comprehensive range of timing functions suitable for varied industrial needs. Designed for 24-240 V AC/DC power supply, the unit supports an adjustable time range spanning from 10.05 seconds to 10 hours, configurable via selectable rotary switches.

The relay includes a 2-contact DPDT (Double Pole Double Throw) contact configuration rating at 5A, with self-extinguishing plastic housing and an IP40 protection rating ensuring reliable performance in demanding environments. The timer is operated through a knob adjustment and supports connection of a remote potentiometer, allowing versatile control in complex systems.

The device is intended for DIN rail mounting with screw-type terminal connectors simplifying installation in control cabinets or panels. The housing width is compact at 22.5mm, and the relay dimensions measure 108 mm in height and 90 mm in length, enabling efficient space utilization. It is suitable for industrial sectors including textiles, chemical, mining, irrigation, food and beverage processing, and general industrial process control.

Key benefits include multifunction timer capabilities such as asymmetric flasher modes with pulse or pause start, on and off delay with control contacts, single-shot leading and trailing edge options, and pulse sequence monitoring. The relay’s industrial design integrates LED status indications for easy monitoring.

Compact solid-state multifunction timer relay. Wide 24-240 V AC/DC voltage supply compatibility. 10 selectable time ranges from 150 milliseconds up to 10 hours. 2-contact DPDT relay output rated at 5A. Self-extinguishing plastic housing with IP40 rating.

DIN rail mount with screw terminal connections. LED status indicator for operational feedback. Suitable for diverse industrial control applications.

The Tele G2ZIF20 timer relay is engineered to meet IEC standards ensuring safety and performance, with country of origin Austria. This product is ideal for integration into automated industrial, manufacturing, and process control systems demanding precise and reliable timing functions.
