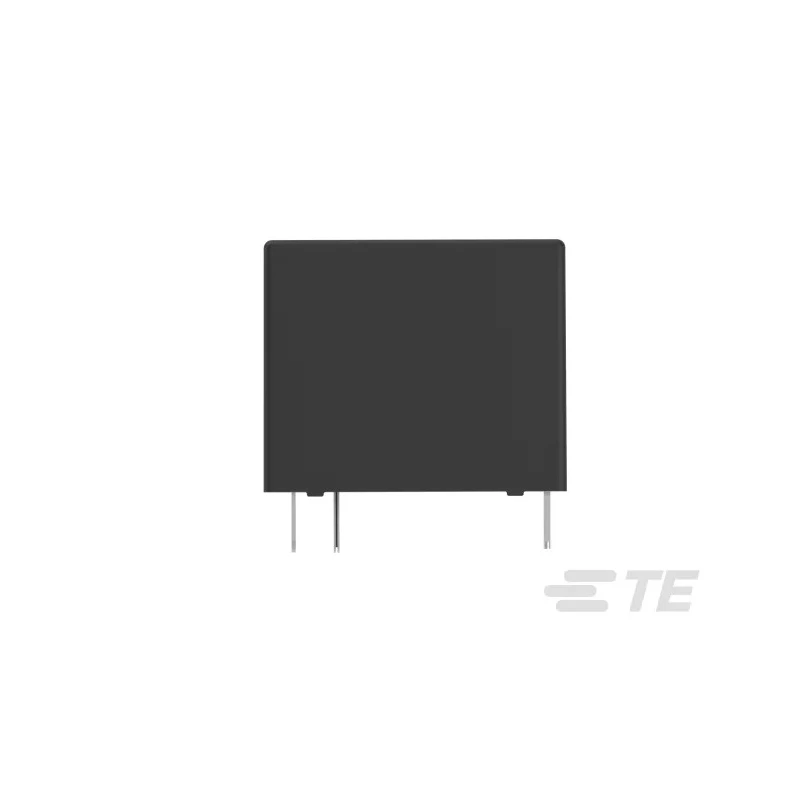

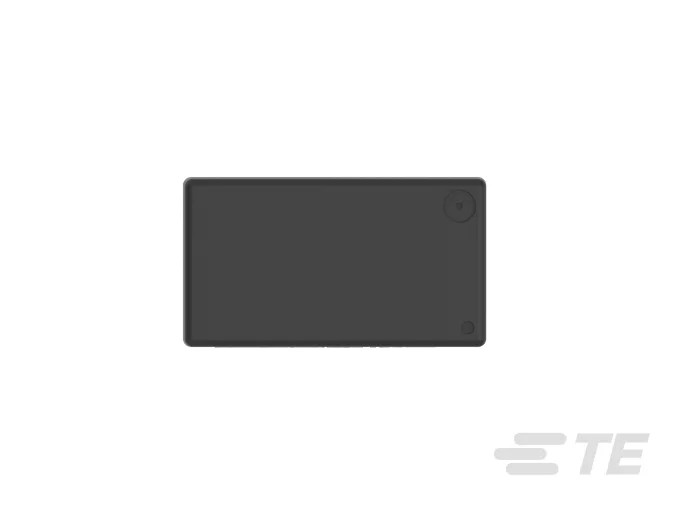

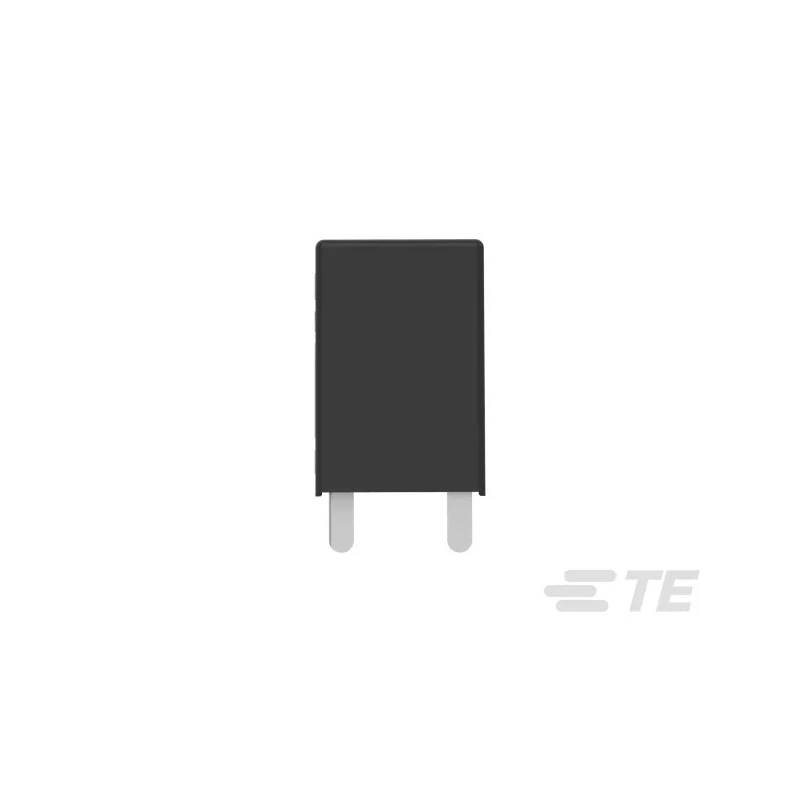

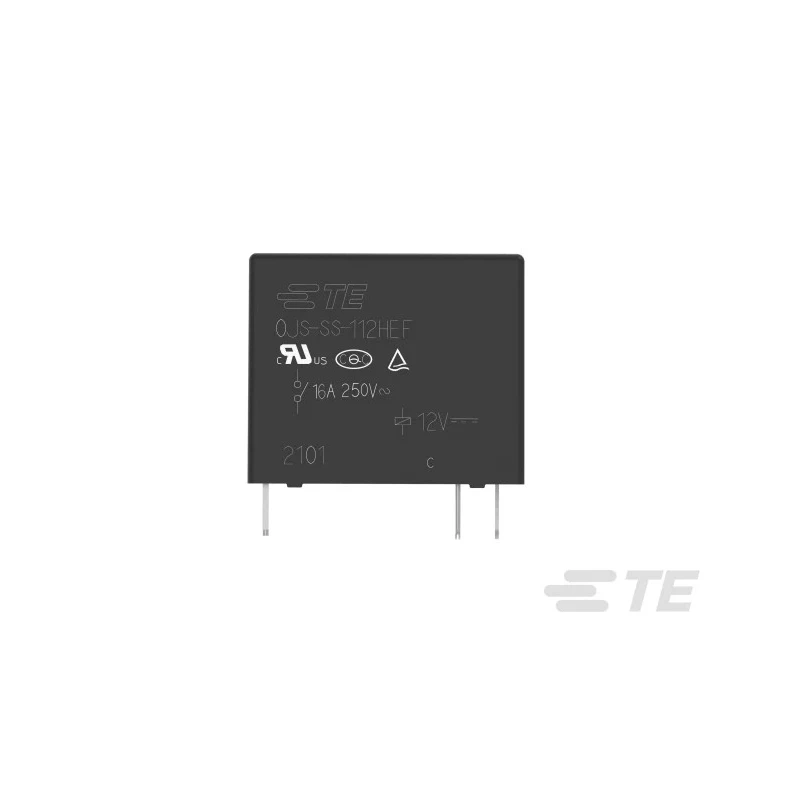

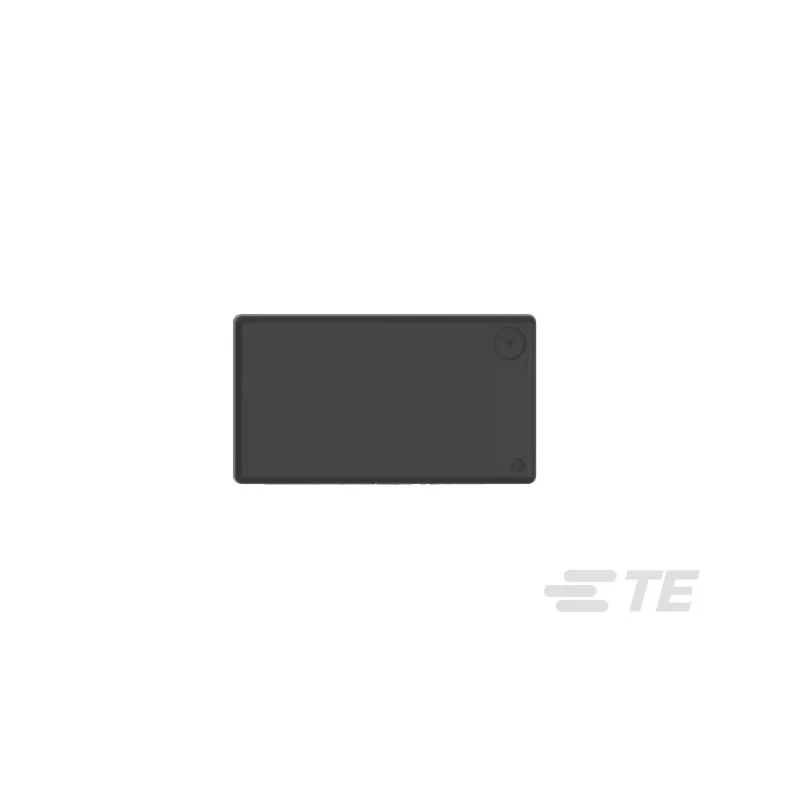

TE Connectivity PCB Relay SPST 12V DC Coil 16A Switching Current Model 2071556-1

TE Connectivity 2071556-1 PCB Relay is a high-quality power relay designed for demanding electrical control applications. Featuring a 12V DC coil and a robust 16A switching current capability, this SPST relay provides reliable electrical circuit control through a single pole single throw contact arrangement. The compact relay with dimensions 18.2mm length, 10.2mm width, and 14.8mm height fits standardized PCB footprints, facilitating easy integration into electronic assemblies.

Constructed with Silver Tin Oxide contact material, the relay assures low contact resistance and stable performance in switching AC voltages up to 250V AC with a power rating of 450mW. The coil resistance of 320 ohms and coil power rating of 450mW enable sensitive and efficient operation. The relay operates safely across a wide temperature range from -30°C to 85°C, making it suitable for industrial, manufacturing, HVAC, CNC machines, and safety-critical applications including robotics and building systems.

The product conforms to IEC 62368-1 safety standards and environmental directives such as RoHS and REACH, ensuring compliance with global quality and sustainability requirements. The relay’s solder terminal type offers secure mounting on PCBs, while dielectric strength of 4000Vrms between coil and contacts enhances operational safety under high voltage conditions.

This TE Connectivity relay is ideal for controlling electrical power flow by interrupting or closing circuits remotely. Its sensitive coil power, compact size, and robust switching current capability make it a versatile component in automation, control panels, lighting, solar systems, and elevator controls.

Compact 18.2 x 10.2 x 14.8 mm PCB mount relay for versatile applications. Silver Tin Oxide contacts assure low resistance and high reliability. Coil voltage of 12V DC with power consumption of 450mW. 16A switching current and 250V AC rated voltage for power relays.

Wide temperature tolerance: -30°C to 85°C suitable for harsh environments. Compliance with IEC 62368-1, RoHS, and REACH standards. Solder terminal type for strong PCB connectivity. 4000Vrms coil to contact dielectric strength for enhanced safety.
