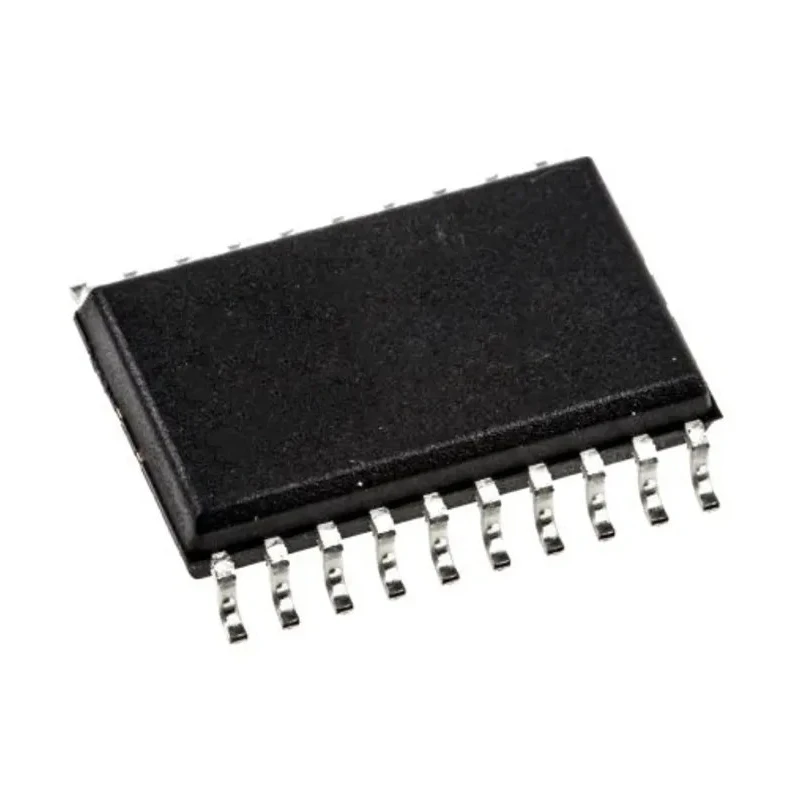

Microchip 12-bit AVR ATTINY Microcontroller 16kB FLASH 2kB SRAM 20 MHz 20-Pin SOIC ATTINY1626-SU

Microchip ATTINY1626-SU is a 12-bit AVR microcontroller optimized for efficient embedded computing applications. Featuring the AVR CPU with a hardware multiplier, it supports clock speeds up to 20 MHz, enabling high-speed processing in compact devices. This microcontroller integrates 16 kB of FLASH program memory alongside 2 kB of SRAM and 256 bytes of EEPROM, providing versatile storage solutions.

Encased in a 20-pin SOIC surface mount package with a width of 7.5 mm, the ATTINY1626-SU is ideal for space-constrained designs. It operates over a wide voltage range from 1.8 V to 5.5 V and tolerates ambient temperatures between -40°C and 85°C, making it suitable for industrial and commercial electronics.

The device includes 18 programmable I/Os and a rich peripheral set. Notably, it offers a 12-bit differential ADC with programmable gain amplifier (PGA) for advanced analog signal processing, one analog comparator with an internal DAC reference, three timers (two 16-bit Timer/Counter type B units), and multiple serial communication interfaces, including dual USARTs, SPI, and I2C.

Built-in core-independent peripherals and event system enable low power operation. The controller supports configurable custom logic (CCL), enhancing flexibility and control in embedded applications. Compliance with REACH and RoHS3 standards ensures environmental safety.

This microcontroller is extensively used in embedded system design, industrial automation, consumer electronics, and other sectors requiring compact, low-power processors with versatile analog and digital interfacing capabilities.

Features an AVR CPU with hardware multiplier for efficient processing. Operates at a maximum clock frequency of 20 MHz for responsive performance. Includes 16 kB of FLASH program memory and 2 kB SRAM for data storage. Low power consumption with minimum supply voltage of 1.8 V and maximum of 5.5 V.

Supports 12-bit ADC with programmable gain amplifier for precise analog inputs. Offers multiple serial communication interfaces: 2x USART, SPI and I2C. Equipped with 3 timers and 1 analogue comparator with internal DAC reference.

Designed for surface mount with a compact 7.5 mm width in SOIC package type. Operates reliably in temperature range from -40°C to 85°C. Complies with REACH and RoHS3 environmental standards. Explore EnvMart's Microcontrollers category for a wide range of Microcontroller options and technical support for embedded system design projects.
