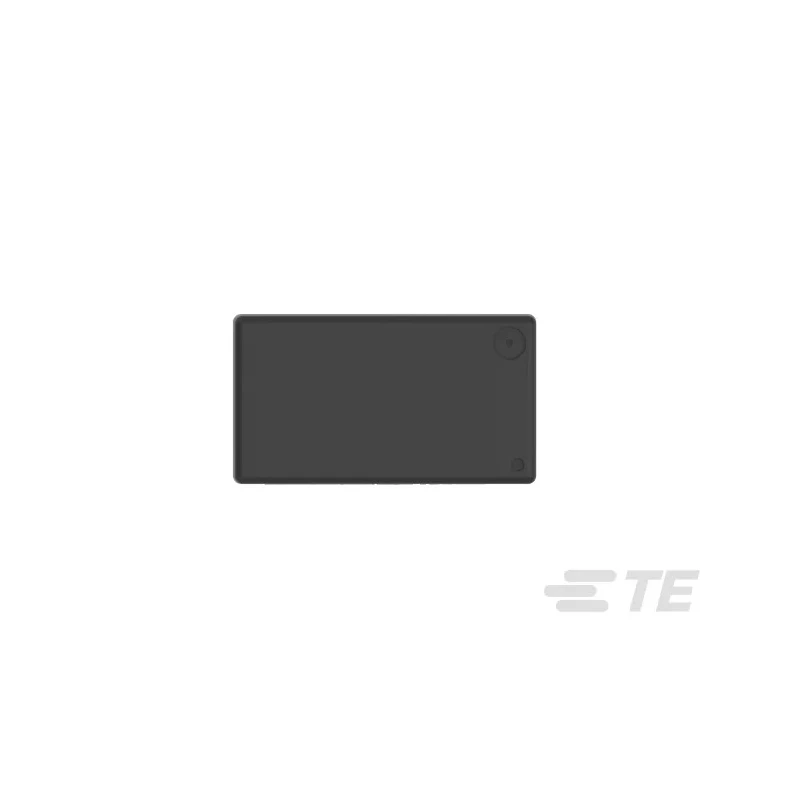

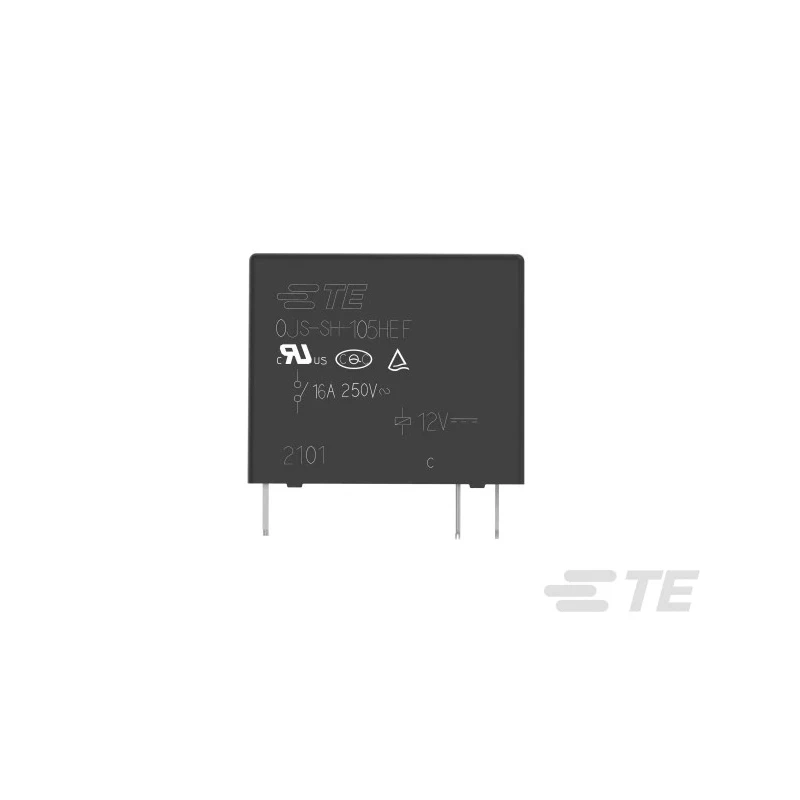

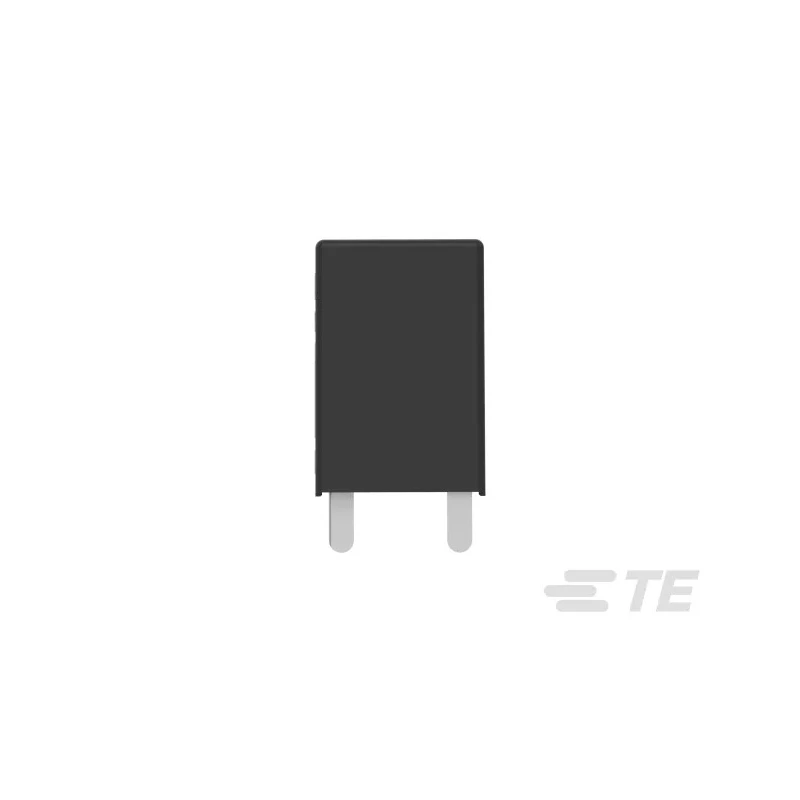

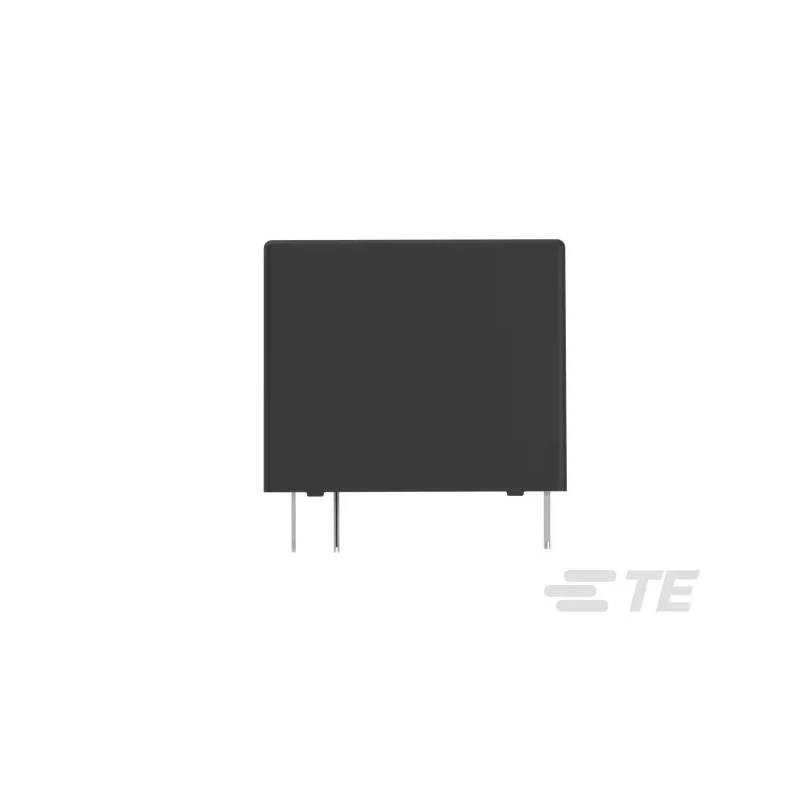

TE Connectivity PCB Relay 5V dc Coil 16A Switching Current SPST 1-2071556-2

TE Connectivity 1-2071556-2 PCB Relay is engineered for high performance and reliability in switching applications. It features a 5V dc coil and supports a switching current of up to 16A with a SPST contact configuration, making it ideal for controlling electrical power flow in PCB mounted circuits.

The relay’s compact size of 18.2mm length, 10.2mm width, and 14.8mm height allows integration into densely packed electronic systems. Its screw terminal type ensures durable and secure electrical connections suitable for industrial and commercial applications.

With an operating temperature range from -40°C to 70°C and compliance with RoHS standards, this relay is suitable for a wide variety of environments including industrial automation, HVAC systems, robotics, CNC machines, lighting control, and solar power systems.

The contact material is silver alloy, which provides excellent conductivity and durability over extended cycling. The coil power rating of 450 mW supports efficient energy use during operation, while a coil resistance of 56 ohms contributes to stable and predictable performance. Rated for a maximum switching AC voltage of 277V ac, the relay can safely handle moderate-voltage AC loads.

TE Connectivity ensures this product adheres to IEC 62368-1 standards and provides reliable, consistent switching performance for critical control applications requiring compact and high-capacity relays.

The relay operates at a coil voltage of 5V dc ensuring low power consumption. It supports a switching current rating of 16A suitable for high load applications. Contact configuration is SPST with silver alloy contacts for optimal conductivity.

Designed for PCB mounting with screw-type terminals for secure connections. Compact dimensions of 18.2 x 10.2 x 14.8 mm make it suitable for space-constrained circuits. Operating temperature range from -40°C to 70°C allows use in diverse environments.

The coil power consumption is 450 mW, contributing to efficient operation. Complies with RoHS standards ensuring environmental safety. Coil resistance is 56 ohms, providing stable electrical characteristics. Offers a high switching AC voltage capacity of 277V ac to handle various AC loads.
