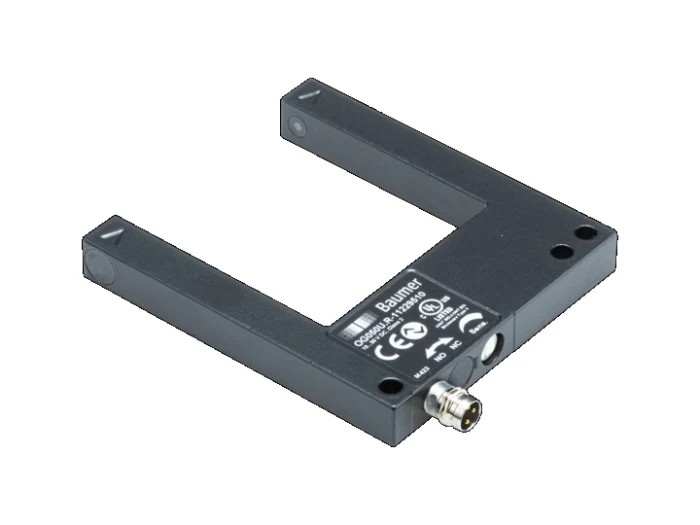

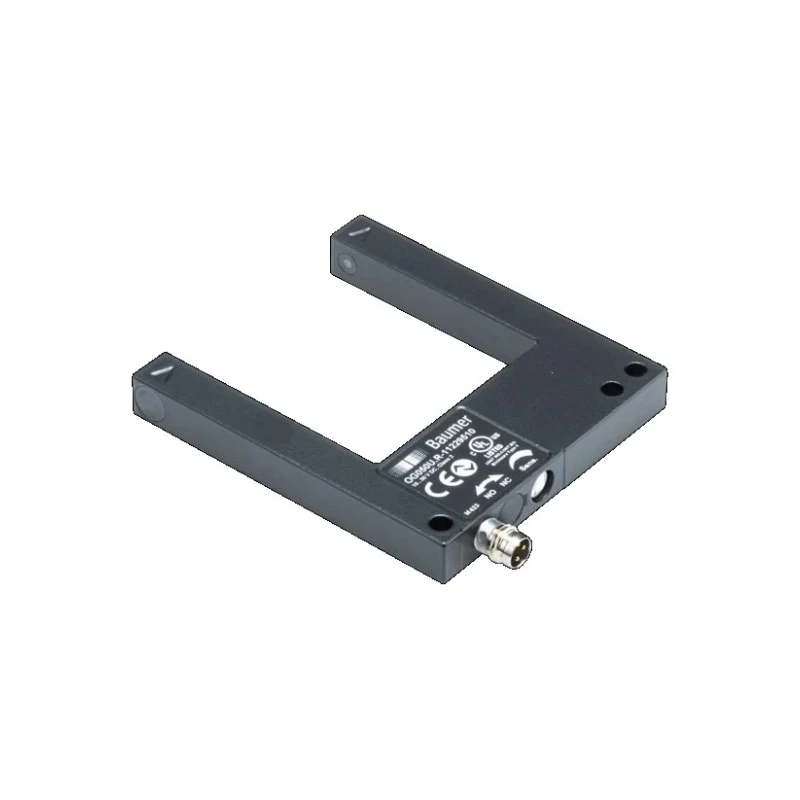

Baumer Photoelectric Fork Sensor 50 mm Detection Range, Push Pull Output, IP67, Die Cast Zinc Housing OG050U.R-GW1O.7WL
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Response time | 0.1ms |
| Light Source | Red LED |
| Detection range | 50 mm |
| Model | OG050U.R-GW1O.7WL |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Die Cast Zinc |
| Output type | Push Pull |
| Series | OG |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |
| DetectIon Type | Fork Sensor |
| Terminal type | 8-Pin M3 Connector |
| Interface Type | IO-Link V1.1 |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Fork |
Key Features
- This sensor features a robust die cast zinc housing for durability in industrial environments.
- It provides a push pull output type with an 8-pin M3 connector terminal.
- Operates reliably within a temperature range of -25°C to 60°C.
- The sensor is equipped with a red LED light source and has a fast response time of 0.1 ms.
- Its IP67 rating ensures excellent protection against dust and water ingress.
- The device supports IO-Link V1.1 interface for easy integration.
- Maximum operating voltage is 30V DC with a maximum current of 200 mA.
- Mounting is done via screw for secure installation.
Product Description
Baumer OG050U.R-GW1O.7WL is a high-precision photoelectric fork sensor designed for industrial automation applications requiring accurate object detection within a 50 mm range. Manufactured with a durable die cast zinc housing, it is engineered for harsh environments, providing mechanical robustness and enhanced lifespan.
This sensor employs a red LED light source in a through-beam configuration, generating a push pull output signal through its 8-pin M3 connector, facilitating straightforward interfacing with control systems.
It operates over a wide temperature range from -25°C up to 60°C, maintaining stable performance. The device features a fast response time of 0.1 ms, ensuring timely detection and process control.
With an IP67 ingress protection rating, the sensor is highly resistant to dust and water exposure, making it suitable for demanding industrial environments such as manufacturing lines, automated assembly, material handling, and packaging equipment.
The IO-Link V1.1 interface enhances communication capabilities and configuration flexibility, supporting integration into modern Industry 4.0 systems. Robust die cast zinc housing for industrial durability. Push pull output with 8-pin M3 connector terminal.
Wide operating temperature range from -25°C to 60°C. Red LED light source with 0.1 ms response time. IP67 rated for excellent protection against dust and water. Maximum DC voltage of 30V and current up to 200 mA. Screw mounting for secure installation.
CE certified and manufactured in Germany.
This fork sensor is ideal for use in electrical automation, control gear, industrial manufacturing, laboratory instrumentation, HVAC systems, and other commercial industrial applications requiring reliable fork-style object detection.
Explore the range of Baumer sensors at EnvMart for precise and durable sensing solutions perfectly suited for your automation needs.
Explore more products in our Photoelectric Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 50 mm.
It provides a push pull output type.
The maximum operating voltage is 30V DC.
The response time is 0.1 ms.
The sensor has an IP67 rating, providing excellent protection against dust and water ingress.
It operates within a temperature range of -25°C to 60°C.
It features an 8-pin M3 connector terminal.
Mounting is done via screw for secure installation.
The sensor uses a red LED light source.
The housing is made of die cast zinc, ensuring durability in industrial environments.
It supports the IO-Link V1.1 interface for easy integration into control systems.
Yes, this model is CE certified.
