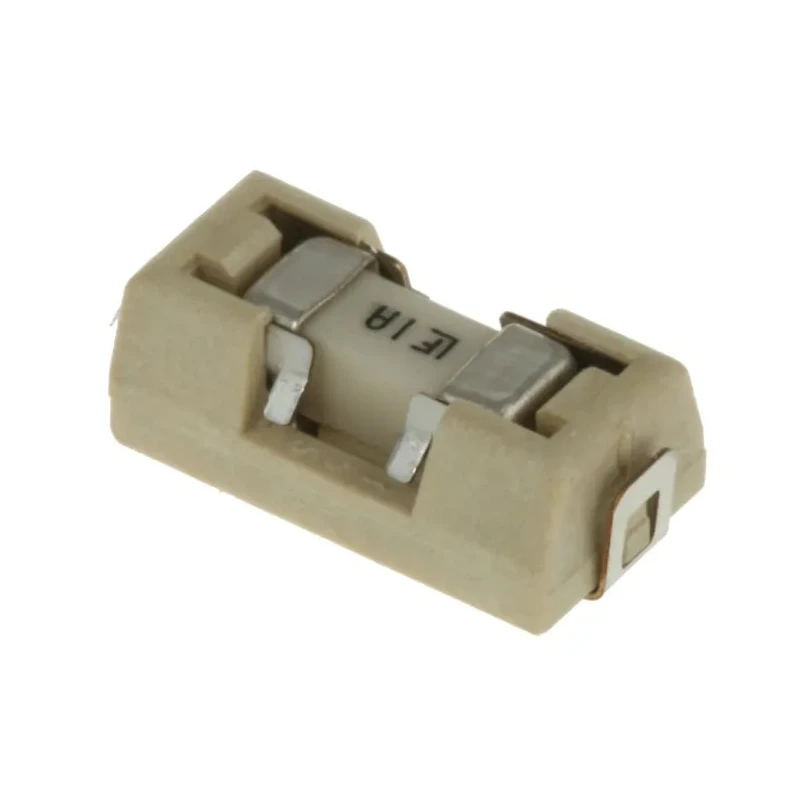

Littelfuse Non-Resettable Fuse 1A 125 V AC 125V DC Thermoplastic Body Time Delay FF Fuse Speed 0154001.DR
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Littelfuse |
| Body Material | Thermoplastic |
| Height | 3.81mm |
| Model | 0154001.DR |
| Depth | 9.73mm |
| Width | 5.03mm |
| Current Rating | 1A |
| Series | 154 |
| Maximum Operating Temperature | -55°C |
| Package Type | Reel |
| Minimum Operating Temperature | 125°C |
| Breaking Capacity | 50A |
| Terminal Material | Tin/Lead Plated Beryllium Copper Alloy |
| Standards/Approvals | UL 94 V-0, CSA, RoHS |
| Fuse Characteristics | Time Delay |
Key Features
- Constructed with a thermoplastic body for durability and electrical insulation.
- Time delay fuse speed classified as FF for high-value silicon IC protection.
- Surface mount technology suitable for compact installations.
- Features a breaking capacity of 50A for reliable circuit protection.
- Operating temperature ranges from -55°C to 125°C for flexible environmental usage.
- Complies with UL 94 V-0, CSA, and RoHS standards ensuring safety and environmental compliance.
- Terminal made of tin/lead plated beryllium copper alloy for excellent conductivity.
Product Description
Littelfuse 0154001.DR Non-Resettable Fuse offers precise circuit protection with a 1A current rating and 125 V AC/125 V DC voltage capacity. Its thermoplastic body ensures robust insulation and reliable performance in compact electronic assemblies.
This fuse operates with a time delay FF speed characteristic, providing excellent safeguard for sensitive electronic devices such as alarm systems, audio/visual equipment, computer boards, and medical apparatus where temporary current surges may occur.

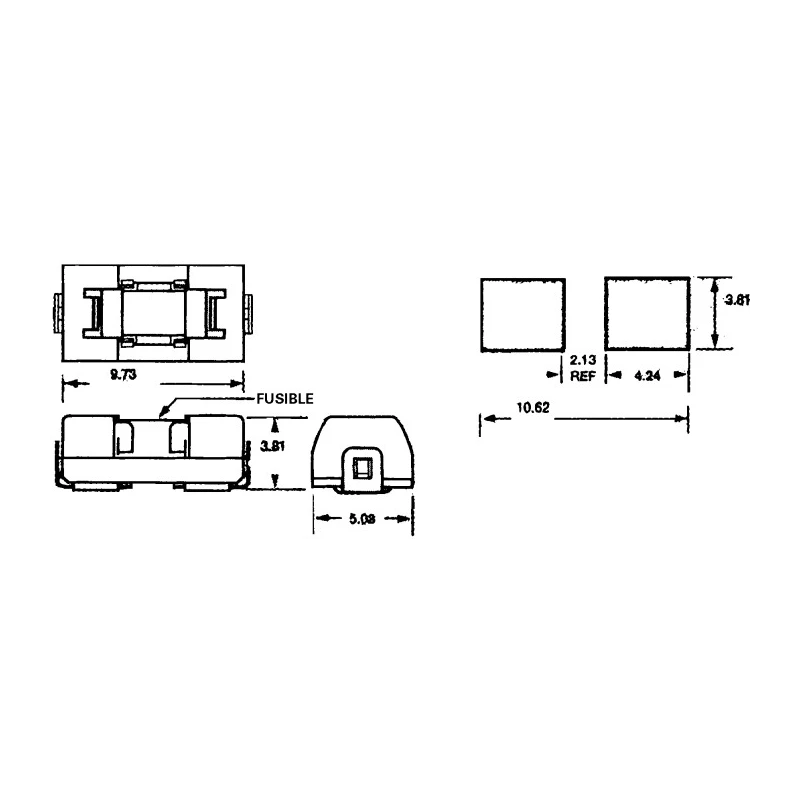

The miniature size (5.03mm width, 3.81mm height, 9.73mm depth) and surface mount design enable efficient and space-saving installation on PC boards. Its 50A breaking capacity ensures high fault tolerance, essential for industrial and laboratory applications.
Operating reliably within temperatures from -55°C to 125°C, this fuse meets stringent international safety and environmental standards including UL 94 V-0 flammability rating, CSA certification, and RoHS compliance.
Terminals are crafted from tin/lead plated beryllium copper alloy, optimizing conductivity and durability during repeated thermal cycles. The fuse is supplied on a reel package type, facilitating efficient production line insertion.
Durable thermoplastic body material for electrical insulation. Time delay characteristic to protect high-value electronic components. Compliant with UL 94 V-0, CSA, and RoHS standards. Compact footprint suitable for surface mount technology applications.
Reliable operation within -55°C to 125°C temperature range. Breaking capacity of 50A for enhanced circuit protection. Reel packaging for efficient manufacturing deployment. Terminal made from tin/lead plated beryllium copper alloy.
This Littelfuse 154 Series OMNI-BLOK fuse and holder combination provides a convenient and efficient solution for rapid fuse replacement and installation in electronics manufacturing, water treatment, commercial electrical installations, and HVAC systems.
Explore more Littelfuse products and related electrical components on EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This fuse has a current rating of 1A.
It has a voltage capacity of 125V AC and 125V DC.
The breaking capacity of this model is 50A.
The body is made from thermoplastic, and the terminals are crafted from tin/lead plated beryllium copper alloy.
This fuse measures 5.03mm in width, 3.81mm in height, and 9.73mm in depth.
It operates reliably within a temperature range of -55°C to 125°C.
This fuse features a time delay characteristic, classified as FF.
It complies with UL 94 V-0, CSA, and RoHS standards.
It is supplied in a reel package type, facilitating efficient production line insertion.
This fuse is suitable for protecting sensitive electronic devices such as alarm systems, audio/visual equipment, computer boards, and medical apparatus.
The 50A breaking capacity ensures high fault tolerance, making it essential for industrial and laboratory applications.
The country of origin for this fuse is the Philippines.
