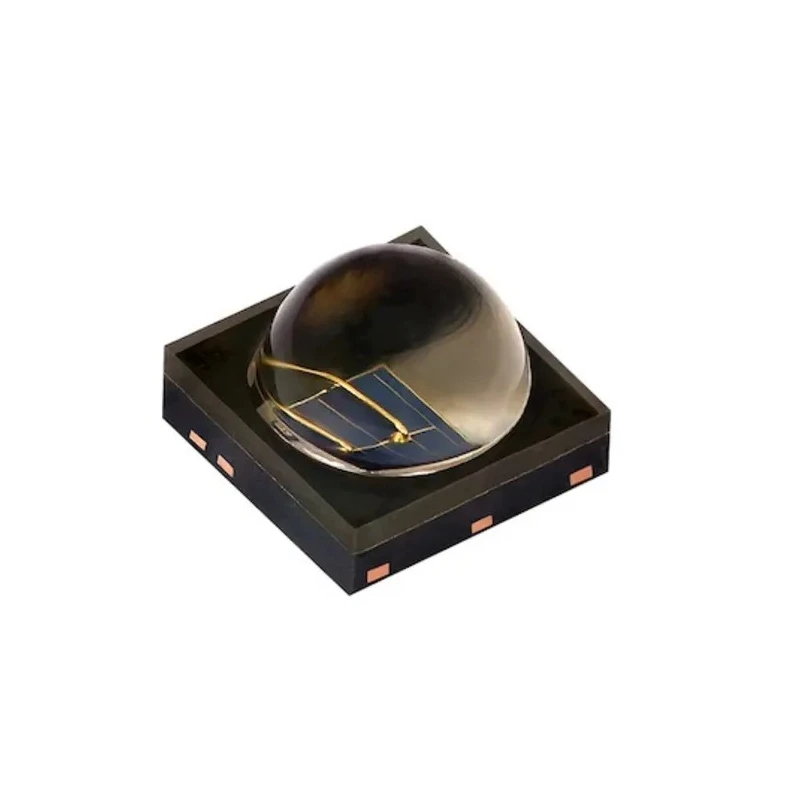

Vishay High Power Infrared Emitting Diode 860 nm Radiant Flux 2100 mW Surface Mount VSMA1085400

Vishay VSMA1085400 is a high power infrared emitting diode specifically designed for surface mount applications. It emits infrared radiation with a peak wavelength of 860 nm, making it suitable for various infrared sensing and illumination uses in industrial, laboratory, and electronic manufacturing sectors.

This diode achieves a radiant flux of 2100 mW and radiant intensity of 1350 mW/sr, delivering strong and reliable infrared output. The compact package size of 3.4 x 3.4 x 2.45 mm combined with the double stack emitter chip design allows it to handle continuous currents up to 1.5 A DC and pulsed currents up to 5.0 A, supporting demanding applications requiring high power.

The lens package and surface mount form factor enable easy integration into automated PCB assembly lines, while the ±40° angle of half intensity ensures broad infrared beam coverage suitable for sensing and communication technologies.

Designed for robustness, the diode meets industry standards including ANSI, ESDA, J-STD-020E, and JEDEC JS-001. It possesses ESD protection rated up to 5 kV, ensuring durability against electrostatic discharge events during handling and operation.

Additional features include low thermal resistance values between 6 K/W and 9 K/W, and compatibility with lead-free reflow soldering processes, aligning with modern environmental and manufacturing standards.

This device is ideal for use in electronics manufacturing, industrial automation, optical sensors, and other applications requiring precise and high-intensity infrared emission. The product is supplied in tape and reel packaging, facilitating efficient insertion into assembly machinery and enhancing production efficiency.

For detailed integration and design, users can refer to technical documents and 3D models available from Vishay to support accurate mechanical and electronic assembly. Explore the extensive range of infrared emitting Diodes and other optoelectronic components on EnvMart to meet your industrial and electronic component needs.

Emits infrared light at a peak wavelength of 860 nm. High radiant flux output of 2100 mW for powerful emission. Radiant intensity of 1350 mW/sr for focused energy delivery. Compact surface mount package size 3.4 x 3.4 x 2.45 mm.

Maximum supply voltage is 5 V. Supports 1.5 A DC and pulsed currents up to 5.0 A. Wide ±40° angle of half intensity for beam coverage. Compliant with ANSI, ESDA, J-STD-020E, JEDEC JS-001 standards. ESD protection up to 5 kV and lead-free reflow soldering compatible.

Supplied in tape and reel packaging for automated assembly.
