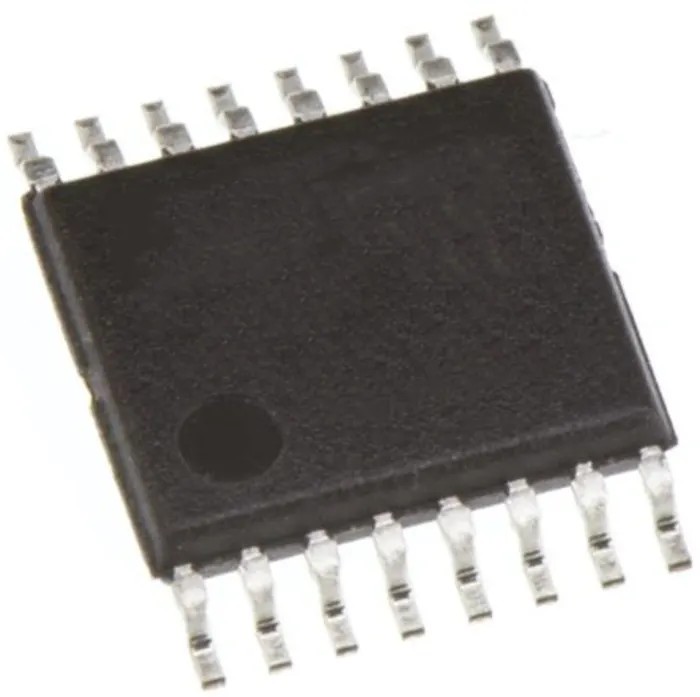

NXP UART Interface IC 16-Pin TSSOP-16 3.3V Surface Mount 5Mbps SC16IS740IPW,112
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.1mm |
| Length | 6.6mm |
| Model | SC16IS740IPW,112 |
| Mount Type | Surface |
| Maximum Operating Temperature | 95°C |
| Package Type | TSSOP-16 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 5Mbps |
| Transmit FIFO | 64bit |
| Receive FIFO | 64bit |
Key Features
- The device supports a single UART channel for serial communication.
- Equipped with 64-bit transmit and receive FIFOs to ensure efficient data buffering.
- Operates between -40°C and 95°C suitable for industrial applications.
- Compact dimensions of 6.6mm length and 1.1mm height enable space-saving PCB design.
- Surface mount type with 16 pins in TSSOP-16 package allows easy soldering on PCBs.
- Includes software reset and independent transmitter/receiver enable/disable functions.
- Ideal for high-speed serial interface in embedded systems and communication devices.
- Designed for low operating and sleep current to optimize power consumption.
Product Description
The NXP SC16IS740IPW,112 is a high performance UART interface integrated circuit featuring a 16-pin TSSOP-16 surface mount package optimized for embedded and communication applications. It operates at a fixed 3.3V supply voltage and supports data rates up to 5 Mbps, making it suitable for fast and efficient serial data transmission.
This IC includes a single UART channel with 64-bit transmit and receive FIFOs, allowing buffered data flow that reduces processor overhead and enhances communication reliability. The device incorporates software reset capabilities and allows the transmitter and receiver components to be enabled or disabled independently according to system requirements.
With a compact form factor measuring 6.6 mm in length and 1.1 mm in height, the SC16IS740IPW,112 is ideal for space-constrained electronic designs. The device is qualified for operation in harsh environments over a wide temperature range from -40°C to 95°C, making it suitable for industrial, telecommunications, and embedded systems.
This UART IC interfaces seamlessly with I²C bus or SPI protocols to enhance system flexibility and integration options. Its low power consumption in both active and sleep modes ensures energy-efficient performance in battery-sensitive applications.
The SC16IS740IPW,112 is widely used in industrial control, data acquisition, instrumentation, networking devices, and other applications requiring robust UART serial communication.
The device supports a single UART channel for serial communication. Equipped with 64-bit transmit and receive FIFOs for efficient data buffering. Operates between -40°C and 95°C suitable for industrial use. Compact 16-pin TSSOP package of 6.6 mm length and 1.1 mm height.
Supports surface mount technology (SMT) for easy PCB assembly. Software reset and independent transmitter/receiver enable features. Maximum data transmission rate of 5 Mbps enabled by UART design. Compatible with both I²C bus and SPI interface communication protocols.
Low operating and sleeping current for energy-efficient applications.
Set yourself up for success with this reliable and high-performance UART interface IC from a globally recognized brand NXP. Browse the Semiconductor and Interface ICs category on EnvMart for more high-quality electronic components to enhance your projects and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SC16IS740IPW,112 supports a maximum data rate of 5 Mbps, enabling fast and efficient serial data transmission.
This model operates within a temperature range of -40°C to 95°C, making it suitable for industrial applications.
The device supports a single UART channel for serial communication.
It has compact dimensions of 6.6 mm in length and 1.1 mm in height, allowing for space-saving PCB design.
The SC16IS740IPW,112 comes in a TSSOP-16 package, which is a surface mount type with 16 pins.
This model is equipped with 64-bit transmit and receive FIFOs, which help ensure efficient data buffering.
It operates at a fixed supply voltage of 3.3V.
Yes, it interfaces seamlessly with I²C bus or SPI protocols, enhancing system flexibility and integration options.
It includes software reset capabilities and allows independent enabling or disabling of the transmitter and receiver components.
This UART interface IC is widely used in industrial control, data acquisition, instrumentation, and networking devices.
The low operating and sleep current ensures energy-efficient performance, making it suitable for battery-sensitive applications.
The country of origin for this model is India.
