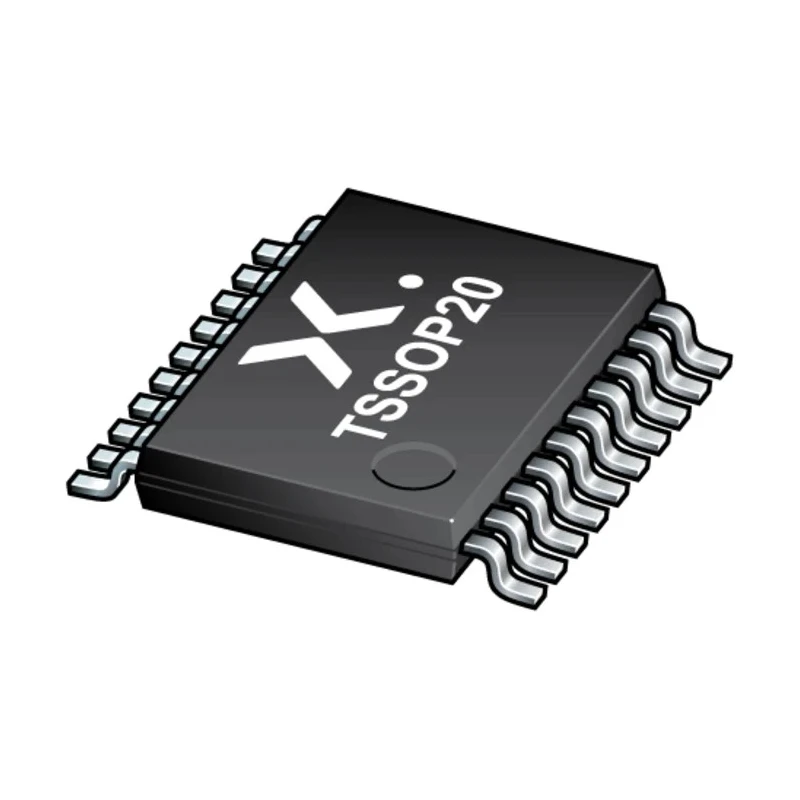

Nexperia 9-Bit Non-Inverting 3-State Bus Transceiver 20-Pin TSSOP 1.2-3.6V 74LVC245APW,118

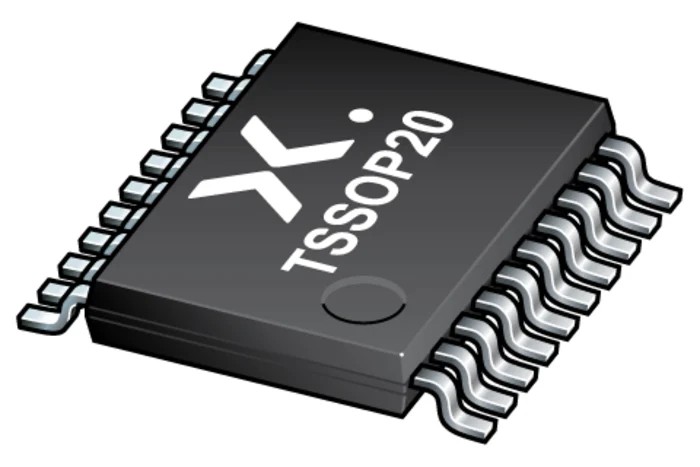

Nexperia 74LVC245APW,118 is a 9-bit non-inverting bus transceiver with 3-state outputs, housed in a 20-pin Thin Shrink Small Outline Package (TSSOP). It operates over a supply voltage range from 1.2 volts minimum to 3.6 volts maximum, enabling low-power CMOS logic level interfacing with TTL inputs.

The device features an output enable function and direction control allowing bidirectional data flow management. It is designed for high-speed data applications with a maximum propagation delay time of 8 nanoseconds at capacitive load.

With a pin count of 20 and a compact length of 6.6 mm, this surface-mount device is well-suited for space-constrained industrial and commercial electronic designs. Operational temperature ranges from -40°C to 125°C, making it robust for various environmental conditions.

This transceiver's output supports 3-state logic and provides maximum high-level output current of -24mA and low-level output current of 24mA, offering reliable drive capability for multiple digital circuits.

Supports 9 channels for simultaneous data transmission. Non-inverting logic function for accurate signal transfer. Surface mount package enhances PCB integration and assembly. Wide operating temperature range ensures application versatility.

Low power consumption compatible with modern electronic systems. TTL input level compatibility facilitates ease of interface. 3-state output increases flexibility in bus-oriented system designs. Compact TSSOP package optimizes board space.

This product is ideal for applications in industrial automation, digital communications, and electronic instrumentation requiring efficient bus transceiver functionality. Explore the extensive range of semiconductor components at EnvMart for professional-grade electronic design solutions.
