| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | BZX84-C3V9,215 |
| Mount Type | Surface |
| Series | BZX84 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 75V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 90Ω |
| Typical Voltage Temperature Coefficient | -2.5mV/K |
| onsemi 1, 3.9 V Zener Diode, Single 300 mW 5 % Surface 3-Pin SOT-23Brand | onsemi |

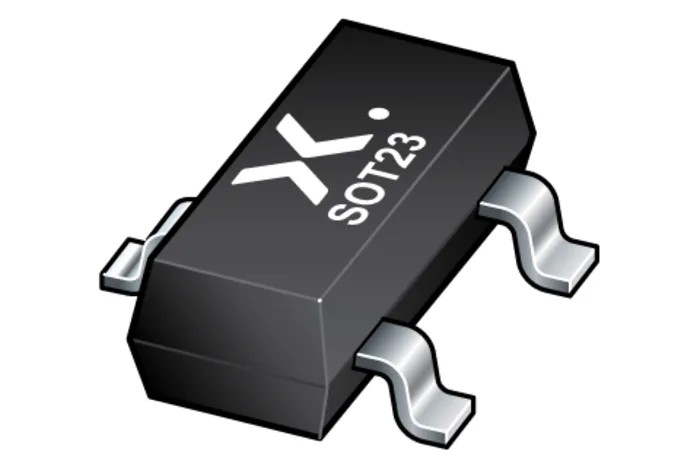

Nexperia BZX84-C3V9,215 is a low-power Zener diode designed for voltage regulation applications. This 75V, 250mW rated diode is housed in a compact 3-pin SOT-23 surface-mount package, making it suitable for space-constrained electronics.
The device provides stable voltage reference with a tight tolerance of 5%, a typical voltage temperature coefficient of -2.5mV/K, and a maximum Zener impedance of 90 ohms. It is designed for a test current of 5mA and has a maximum reverse leakage current of 3µA ensuring minimal leakage in circuits.
Its robust operating temperature range from -65°C to 150°C makes it suitable for both commercial and automotive electronic applications. The diode complies with the AEC-Q101 automotive standard, certifying its reliability for use in automotive systems.
This product is ideal for industrial and automotive voltage regulation tasks, stabilizing voltage in power supplies and protecting sensitive electronics from voltage spikes. This diode features a nominal Zener voltage of 75 volts for voltage regulation.
Maximum power dissipation rating is 250 milliwatts ensuring low power applications. The package type is SOT-23, ideal for compact PCB designs. The diode configuration is single element with 3 pins for surface mounting. It offers a maximum Zener impedance of 90 ohms and maximum reverse leakage current of 3 microamps.
Operating temperature range from minus 65 to 150 degrees Celsius supports demanding environments. The diode is AEC-Q101 qualified for automotive standard compliance.
Available for engineers and designers requiring reliable voltage clamping in compact, surface-mount technology. Explore more Nexperia semiconductor components in the EnvMart electronics category.
