Nexperia 8-Bit Bus Transceiver Non-Inverting 3 State 20-Pin TSSOP 4.5V to 5.5V 74HCT245PW,118

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 8-Bit Bus Transceiver Non-Inverting 3 State 20-Pin TSSOP 4.5V to 5.5V 74HCT245PW,118

Name: Nexperia 8-Bit Bus Transceiver Non-Inverting 3 State 20-Pin TSSOP 4.5V to 5.5V 74HCT245PW,118
Brand: Nexperia
SKU: 290046
Price: 0.26 USD
Availability: InStock



Category Bus Transceivers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	950μm
Length	6.6mm
Model	74HCT245PW,118
Mount Type	Surface
Output type	3 State
Series	74HCT
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	1
Pin Count	20
Maximum Supply Voltage	5.5V
Logic Family	74HCT
Logic Function	Transceiver
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	35mA
Maximum Propagation Delay Time @ CL	28ns
Maximum Low Level Output Current	-7.8mA
Output Level	3 State
Input Level	TTL

Key Features

Features non-inverting 3-state outputs for efficient bus interfacing.
Includes output enable (OE) and direction control (DIR) pins for flexible data flow management.
Compact 20-pin TSSOP surface mount package minimizing PCB footprint.
TTL compatible input levels with a max propagation delay of 28ns ensuring high-speed operation.
Operational temperature range from -40°C to 125°C suitable for various environments.
Maximum high-level output current of 35mA and low-level current of -7.8mA for robust signal drive.
Designed for reliable performance without automotive-grade compliance.
Ideal for industrial, semiconductor, and electronic component applications requiring bus transceiver functionality.

Product Description

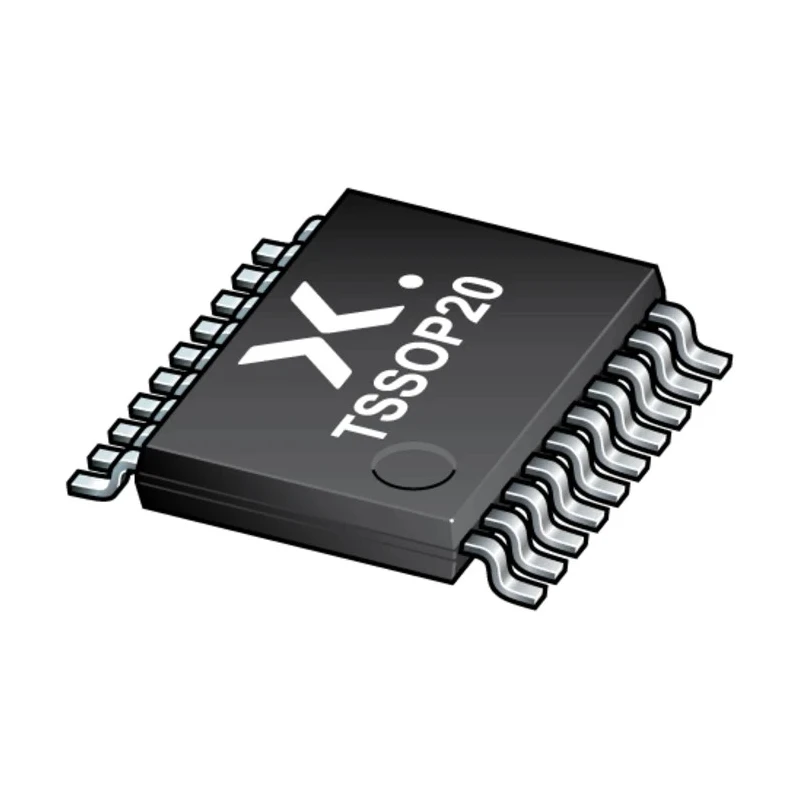

The Nexperia 74HCT245PW,118 is an 8-bit bus transceiver featuring non-inverting 3-state outputs, designed for efficient data transfer on bidirectional bus lines. Packaged in a compact 20-pin TSSOP form factor, this device supports surface mount assembly and operates with supply voltages between 4.5V and 5.5V, making it suitable for low-voltage digital logic systems.

Equipped with output enable (OE) and direction (DIR) control pins, the transceiver facilitates controlled data direction and output activation, enhancing design flexibility. The TTL input level compatibility and maximum propagation delay of 28ns allow for fast and reliable signal handling in timing-sensitive applications.

Operating reliably in temperature ranges from -40°C up to 125°C, the device is well-suited for industrial and commercial electronics environments. It supports maximum output currents of 35mA (high level) and -7.8mA (low level), ensuring robust signal transmission and reception. The device does not conform to automotive standards but fulfills necessary semiconductor logic IC requirements.

With precise physical dimensions of 950μm height and 6.6mm length, the 74HCT245PW,118 is well-optimized for compact PCB designs. This bus transceiver series is RoHS compliant, affirming adherence to environmental and safety standards.

Non-inverting 3-state outputs facilitate efficient bus interface communication. Includes OE and DIR pins for output enable and direction control. Surface mount 20-pin TSSOP package reduces board space usage. TTL compatible with fast propagation delay suitable for high-speed circuits.

Wide operating temperature range for multiple environmental conditions. Maximum output current specifications support robust data signaling. Compact physical dimensions enable space-saving PCB integration. Complies with RoHS for environmental safety.

Designed for general industrial logic IC needs with no automotive compliance. Applicable in semiconductor, electronic component, and bus transceiver applications. Explore the Nexperia range of semiconductor products and Bus Transceivers at EnvMart to find solutions optimized for your industrial and electronic design projects.
