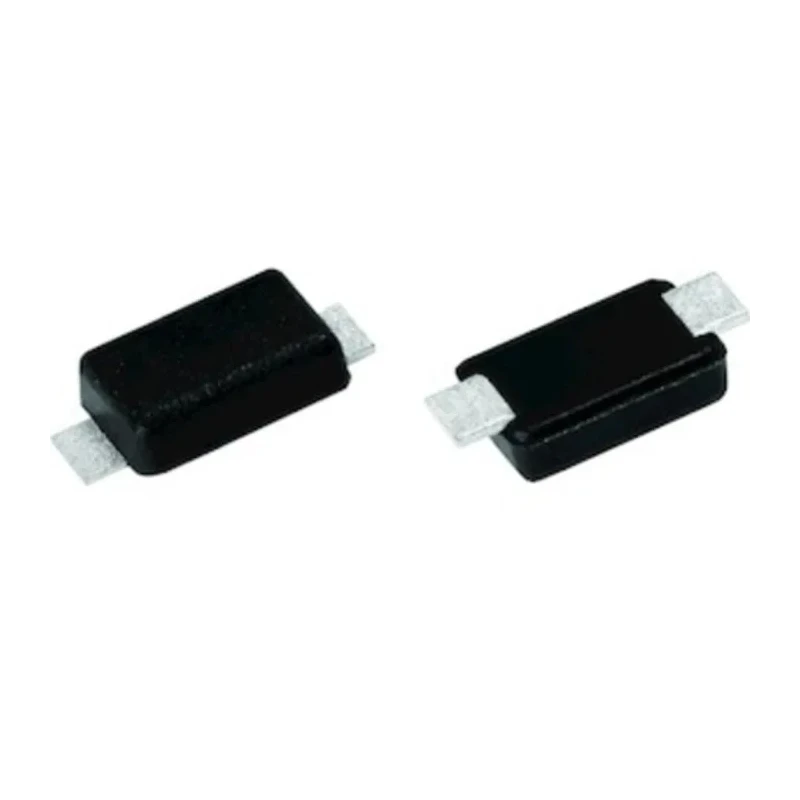

Vishay 200V 2A Schottky Diode Surface Mount DO-219AB Package V2F22HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | V2F22HM3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | V2X |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 0.87V |
Key Features
- Maximum continuous forward current of 2A ensures reliable operation under load.
- Peak reverse repetitive voltage rating of 200V provides strong reverse voltage tolerance.
- Low forward voltage drop of 0.87V minimizes power loss and heat generation.
- High peak non-repetitive forward surge current of 60A supports surge tolerance.
- Wide operating temperature range from -40°C to 175°C suits harsh environments.
- Compact DO-219AB package with dimensions 3.9mm length, 1.9mm width, and 1.08mm height.
- Automotive standard AEC-Q101 certified for automotive applications.
- Low leakage current enhances efficiency in sensitive circuits.
Product Description
Vishay V2F22HM3/H Schottky Diode is a high-performance semiconductor device featuring a single diode configuration in a compact DO-219AB surface mount package. It provides a maximum continuous forward current of 2 amperes and handles a peak reverse repetitive voltage of 200 volts, making it ideal for demanding power electronics applications.
This Schottky diode combines low forward voltage drop (0.87V) and high surge current capability (60A non-repetitive) to improve efficiency while safeguarding circuits against transient events. Its operation across a temperature range of -40°C to 175°C ensures durability in industrial, automotive, and commercial environments. Compliance with the automotive AEC-Q101 standard further confirms its suitability for automotive electronics.
The compact physical dimensions (length 3.9mm, width 1.9mm, height 1.08mm) facilitate space-saving PCB design and automated placement in manufacturing. Low leakage current enhances performance in power conversion and polarity protection use cases.
This diode is widely used in applications such as high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits within industrial, automotive, and commercial electronic systems. Manufactured in China, the component conforms to RoHS environmental standards.
Maximum continuous forward current of 2A reduces thermal losses. Peak reverse voltage rating of 200V supports robust voltage blocking. Compact surface mount DO-219AB package for automated assembly. Wide operating temperature range from -40°C to 175°C for versatility.
AEC-Q101 automotive qualified for reliability in harsh conditions. Low forward voltage and leakage current optimize efficiency. Supports high surge currents up to 60A for transient durability. Wide industrial, automotive, and commercial applicability.
RoHS compliant ensuring compliance with environmental regulations. Explore high-quality Schottky diodes and other semiconductor components at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2A, ensuring reliable operation under load.
The dimensions of the DO-219AB package are 3.9mm in length, 1.9mm in width, and 1.08mm in height.
The forward voltage drop is 0.87V, which minimizes power loss and heat generation.
It supports a peak non-repetitive forward surge current of 60A, enhancing surge tolerance.
Yes, it is AEC-Q101 certified, confirming its suitability for automotive applications.
This Schottky diode has a pin count of 2.
It uses surface mount technology, which facilitates automated assembly.
This model is manufactured in China and conforms to RoHS environmental standards.
