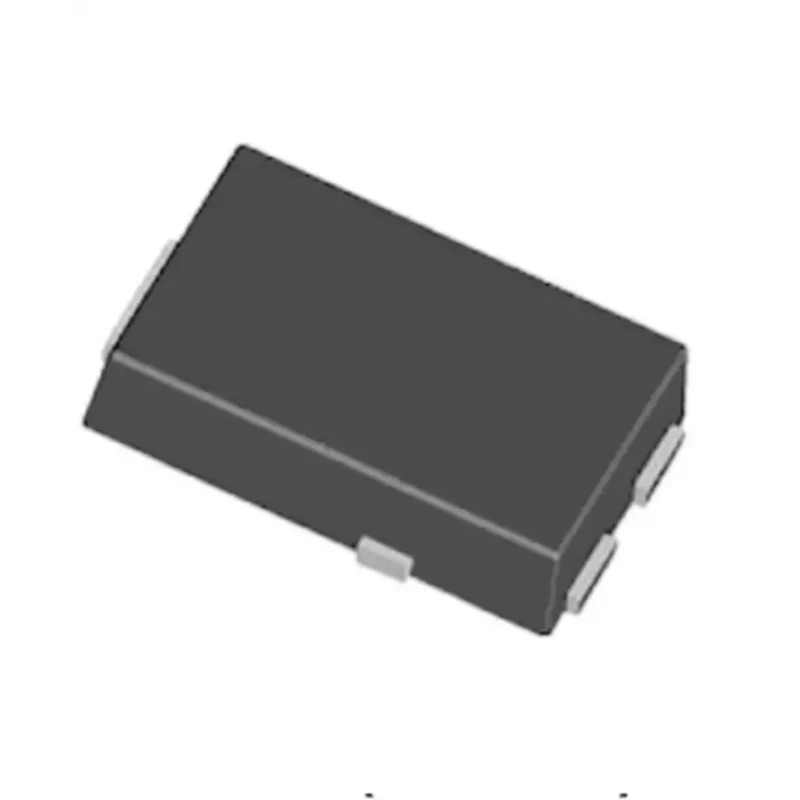

Vishay 150 V 10 A Surface Mount Schottky Diode 3-Pin TO-277 V10PM15HM3/H

Vishay V10PM15HM3/H is a Schottky diode designed for surface mount applications with a 3-pin TO-277 package. It is engineered to handle a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 150 V, making it suitable for a variety of industrial, commercial, and automotive uses such as high-frequency inverters, freewheeling, DC/DC converters, and polarity protection circuits.

This diode offers a low forward voltage drop of 1 V that results in reduced power losses and improved efficiency. It supports a peak non-repetitive forward surge current of 180 A and maintains reliable operation across a wide temperature range from -40°C to 175°C. The compact dimensions (6.66 mm length, 4.75 mm width, 1.2 mm height) facilitate dense PCB layout designs.

It complies with RoHS directives ensuring environmentally friendly manufacturing and conforms to the automotive industry standard AEC-Q101, validating its robustness under demanding automotive conditions. Made in China, this diode is ideal for automated placement processes and offers dependable performance for diverse electronic engineering applications.

Designed for high-frequency inverters and DC/DC converters. Low forward voltage drop reduces power losses. Maximum continuous forward current of 10 A. Peak reverse repetitive voltage rating of 150 V. Wide operating temperature range from -40°C to 175°C.

Robust compliance with RoHS and automotive AEC-Q101 standards. Compact TO-277 surface mount package with 3 pins. Peak non-repetitive forward surge current of 180 A.

Preferred in industrial, manufacturing, commercial electronics, automotive systems, and laboratory applications, the Vishay V10PM15HM3/H Schottky diode provides efficient and reliable rectification with low power loss. Explore similar semiconductor components and Schottky diodes on EnvMart for complete power and electronic solutions.
