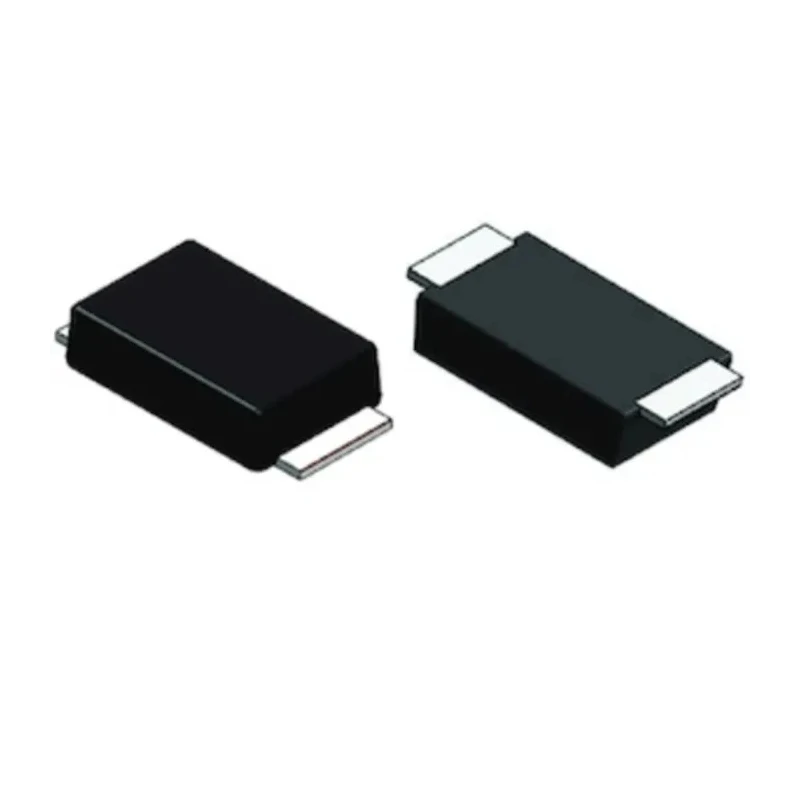

Vishay 100 V 2 A General Purpose Diode Surface Mount DO-221AD VS-2EYH01-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.1mm |
| Length | 5mm |
| Model | VS-2EYH01-M3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 0.93V |
Key Features
- Surface mount mount type suitable for automated PCB assembly.
- DO-221AD package ensures compact size with 5 mm length and 2.7 mm width.
- Maximum continuous forward current of 2 A with peak surge current ratings of 60 A.
- Fast switching and low forward voltage drop reduces power loss.
- Wide operating temperature range from -55°C to 175°C suited for harsh environments.
- Low leakage current with peak reverse current of 20 µA at maximum reverse voltage of 100 V.
- Compliant with RoHS standards and conforms to automotive AEC-Q101 quality standard.
- Designed for industrial, automotive, and commercial applications including DC/DC converters and polarity protection.
Product Description
The Vishay VS-2EYH01-M3/H is a high-performance 100 V, 2 A general purpose diode designed for surface mount applications. It features a DO-221AD package that offers a compact form factor with dimensions of 5 mm length, 2.7 mm width, and 1.1 mm height. This diode delivers efficient fast switching speeds coupled with a low forward voltage drop of 0.93 V, which helps minimize power losses in your circuits.
It supports a maximum continuous forward current of 2 A and a peak non-repetitive forward surge current of 60 A, providing robust handling of electrical loads under transient conditions. The peak reverse repetitive voltage rating is 100 V with a peak reverse current of only 20 μA, ensuring excellent blocking performance.
Operating within a wide temperature range of -55°C to 175°C, it is suited for demanding industrial, commercial, and automotive environments. The diode complies with RoHS regulations and meets the automotive AEC-Q101 standard, guaranteeing reliable operation in automotive electronic systems.
This diode finds applications in high-frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection roles across various sectors including industrial electronics and automotive systems.
Surface mount type for modern automated PCB assembly. Compact DO-221AD package dimensions support space-efficient circuit design. Low forward voltage drop reduces energy loss and heat generation. Wide thermal tolerance suited for harsh environmental conditions.
Automotive-grade quality ensures high reliability in vehicle electronics. Compliant with RoHS environmental standards. Ideal for power rectification, DC/DC conversion, and polarity protection applications. High peak surge current capacity protects against transient overloads.
Manufactured in China under rigorous quality standards. Single Diode configuration supports versatile circuit use.
Explore Vishay semiconductor components on EnvMart for a comprehensive selection of power and discrete electronic devices engineered for professional industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-2EYH01-M3/H diode is 2 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The DO-221AD package has dimensions of 5 mm in length, 2.7 mm in width, and 1.1 mm in height.
The diode can handle a peak non-repetitive forward surge current of 60 A.
The maximum forward voltage drop is 0.93 V.
It operates within a wide temperature range from -55°C to 175°C.
This model is a surface mount type, suitable for automated PCB assembly.
It complies with the automotive AEC-Q101 quality standard.
The peak reverse current is 20 μA at the maximum reverse voltage of 100 V.
This diode is suitable for applications such as DC/DC converters, polarity protection, and high-frequency inverters.
This model is compliant with RoHS standards.
The diode configuration is single, which supports versatile circuit use.
