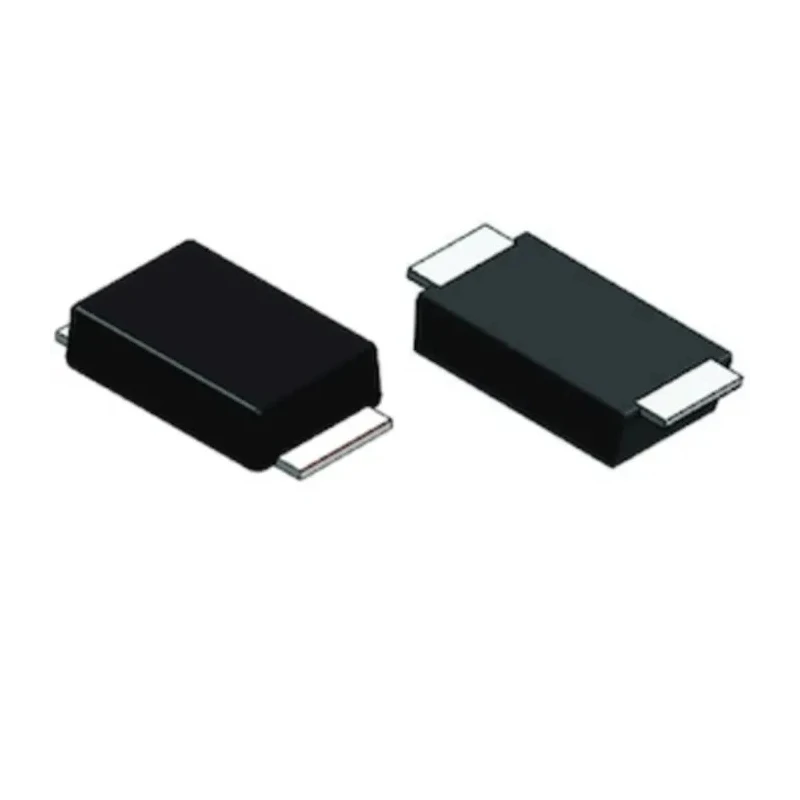

Vishay 200 V 2 A General Purpose Surface Mount Diode DO-221AD VS-2EYH02-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.1mm |
| Length | 5mm |
| Model | VS-2EYH02-M3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 0.93V |
Key Features
- Designed with a DO-221AD package for reliable surface mounting.
- Offers a maximum continuous forward current of 2 amperes.
- Supports a peak reverse repetitive voltage of 200 volts.
- Features low forward voltage drop of 0.93 volts to minimize power losses.
- Operates effectively over a temperature range from -55°C up to 175°C.
- Includes automotive standard compliance with AEC-Q101 certification.
- Capable of peak non-repetitive forward surge current up to 60 amperes.
- Low leakage current with a peak reverse current of 20 microamperes.
Product Description
Vishay VS-2EYH02-M3/H diode is a general purpose, fast-switching semiconductor designed in a surface mount DO-221AD package. It handles a continuous forward current of 2 A and withstands reverse voltages up to 200 V, making it suitable for various industrial, automotive, and commercial electronics applications. The device features a single diode configuration of the eSMP series ensuring reliable performance in diode rectification and switching tasks.
With a low forward voltage of 0.93 V and minimal leakage current, the diode is engineered to reduce power losses and enhance efficiency in circuits. Its wide operating temperature range from -55°C to 175°C ensures functionality under harsh conditions. The diode also meets industry standards, including RoHS compliance and automotive grade AEC-Q101 certification.
Typical applications include high frequency inverters, DC/DC converters, freewheeling diode protection, and polarity protection for automotive electronics. Its compact size and surface mount design simplify board layout and support automated assembly.
Reliable surface mount DO-221AD package construction. 2 A continuous forward current rating for robust performance. 200 V peak reverse repetitive voltage for high voltage tolerance. Low forward voltage reduces conduction losses.
Works in temperatures from -55°C to 175°C, suitable for automotive and industrial environments. Automotive AEC-Q101 certification ensures high quality and reliability. Designed for fast switching in high frequency applications.
Compact dimensions aid efficient PCB layout and integration. Meets RoHS standards promoting environmental compliance.
This Vishay diode model VS-2EYH02-M3/H is an essential component for engineers in electronics manufacturing, automotive systems design, and industrial automation seeking dependable diode solutions with high performance and small form factor. Explore the EnvMart semiconductor catalog for related Diode technologies and configurations optimized for diverse applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-2EYH02-M3/H diode is 2 amperes.
This model supports a peak reverse repetitive voltage of 200 volts.
The diode features a low forward voltage drop of 0.93 volts.
It operates effectively over a temperature range from -55°C to 175°C.
The dimensions of the DO-221AD package are 5mm in length, 2.7mm in width, and 1.1mm in height.
The diode is capable of handling a peak non-repetitive forward surge current of up to 60 amperes.
This model complies with the automotive standard AEC-Q101.
Yes, the Vishay VS-2EYH02-M3/H diode meets RoHS standards for environmental compliance.
It features a single diode configuration as part of the eSMP series.
The peak reverse current is rated at 20 microamperes.
Typical applications include high frequency inverters, DC/DC converters, and protection in automotive electronics.
The rectifier type of this model is classified as a general purpose diode.
