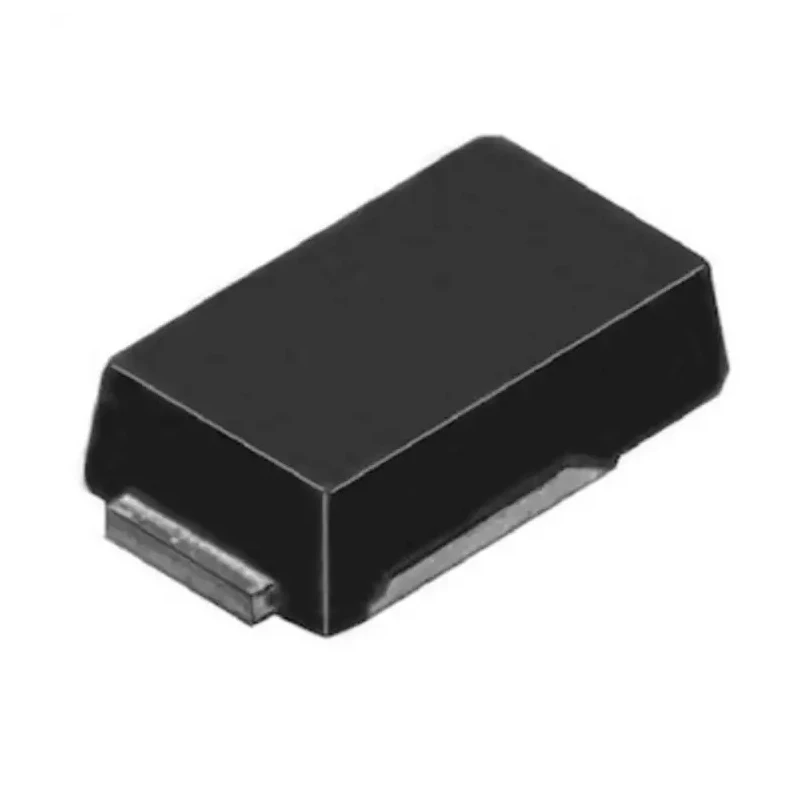

Vishay 200 V 2 A General Purpose Schottky Diode 2-Pin DO-220AA VS-2ENH02HM3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | VS-2ENH02HM3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-220AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Operates at maximum continuous forward current of 2 A.
- Withstands peak reverse repetitive voltage up to 200 V.
- Fast switching speeds and low forward voltage drop ensure efficient performance.
- Low leakage current for reliable operation in sensitive circuits.
- Automotive compliant with AEC-Q101 standard supporting harsh environments.
- Wide operating temperature range from -55°C to 175°C for versatile usage.
- Compact dimensions with length 4 mm, width 2.18 mm, and height 1.15 mm enable automated PCB placement.
- Suitable for commercial, industrial, and automotive power applications including inverters and DC/DC converters.
Product Description
The Vishay VS-2ENH02HM3/84A is a high-quality general purpose Schottky diode featuring a 2-pin DO-220AA surface mount package. This device supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 200 V, making it ideal for demanding power electronics applications.
Its Hyper-Fast rectifier diode technology delivers fast switching speeds and a low forward voltage drop, which helps minimize power loss and thermal dissipation. With a peak non-repetitive forward surge current rating of 40 A and a maximum forward voltage of 1 V, it ensures reliability in high transient conditions.
Designed for use in diverse environments, it features an extended operating temperature range from -55°C up to 175°C and meets the automotive industry standard AEC-Q101, assuring robustness in harsh automotive applications.
Compact physical dimensions (length 4 mm, width 2.18 mm, height 1.15 mm) allow efficient automated PCB assembly. The device exhibits low leakage current (peak reverse current 20 μA), reducing standby losses in sensitive circuits.
Common industrial use cases include applications in high-frequency inverters, freewheeling diodes, polarity protection circuits, and DC/DC converters often found in commercial, industrial, and automotive sectors.
Operates reliably under high temperature and current stresses. Ideal for electronics requiring efficient power rectification and switching. Low power loss supports improved energy efficiency. Compact and automated mounting compatible for mass production.
Compliant with RoHS and automotive quality standards.
This Vishay diode is an essential component for engineers seeking a robust, high-performance Schottky Diode solution. Explore the full range of Vishay products and related semiconductor devices on EnvMart for comprehensive sourcing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-2ENH02HM3/84A is 2 A.
This model can withstand a peak reverse repetitive voltage of up to 200 V.
The dimensions of this diode are 4 mm in length, 2.18 mm in width, and 1.15 mm in height.
It operates within a temperature range from -55°C to 175°C.
The Vishay VS-2ENH02HM3/84A uses a DO-220AA surface mount package.
The maximum forward voltage for this model is 1 V.
This diode is compliant with the AEC-Q101 automotive standard.
The peak non-repetitive forward surge current rating is 40 A.
The peak reverse current for this model is 20 μA.
It is suitable for applications in high-frequency inverters, freewheeling diodes, polarity protection circuits, and DC/DC converters.
Yes, this model exhibits low leakage current, with a peak reverse current of 20 μA, which helps reduce standby losses.
This diode is compliant with RoHS standards, ensuring it meets environmental regulations.
