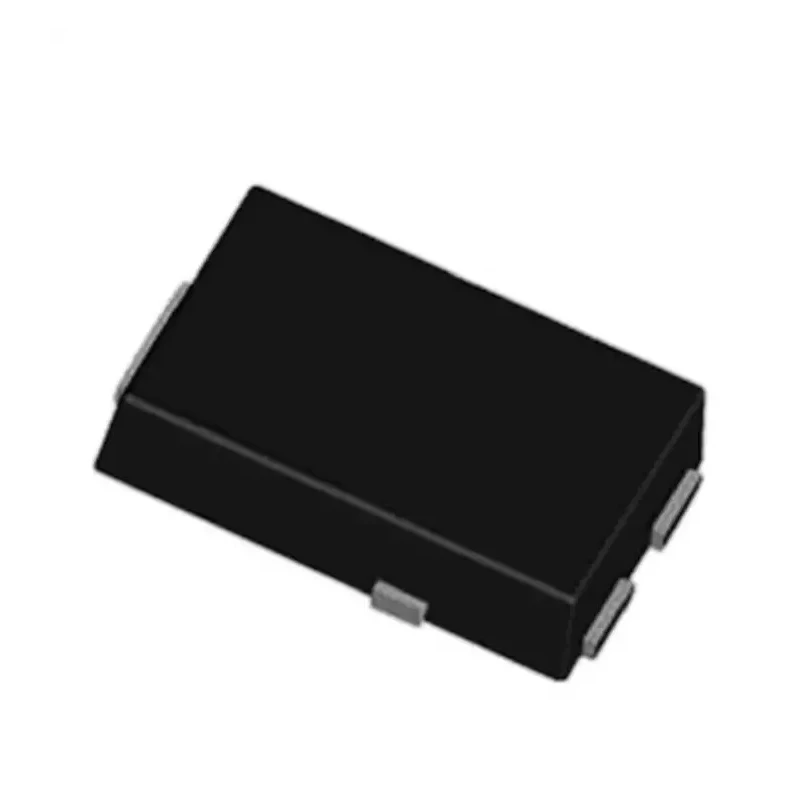

Vishay 60 V 8 A Surface Mount Schottky Diode 3-Pin TO-277 V8PM6HM3/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 60 V 8 A Surface Mount Schottky Diode 3-Pin TO-277 V8PM6HM3/H

Name: Vishay 60 V 8 A Surface Mount Schottky Diode 3-Pin TO-277 V8PM6HM3/H
Brand: Vishay
SKU: 289854
Price: 0.51 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.2mm
Length	6.65mm
Model	V8PM6HM3/H
Width	4.75mm
Mount Type	Surface
Series	V8PX
Maximum Operating Temperature	175°C
Package Type	TO-277
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	14mA
Peak Non-Repetitive Forward Surge Current Ifsm	140A
Maximum Forward Voltage Vf	0.64V

Key Features

This diode features low forward voltage drop reducing power losses.
It supports a maximum continuous forward current of 8 amperes.
The peak reverse repetitive voltage rating is 60 volts.
Designed to operate within a wide temperature range from -40°C to 175°C.
Its compact dimensions are 6.65 mm length, 4.75 mm width, and 1.2 mm height.
The diode has a peak non-repetitive forward surge current of 140 amperes.
It complies with RoHS standards and automotive standard AEC-Q101.
Low leakage current and fast switching speeds make it suitable for DC/DC converters and polarity protection.

Product Description

Vishay V8PM6HM3/H is a surface mount Schottky diode designed for high-performance semiconductor applications requiring low forward voltage and fast switching characteristics. Encased in a 3-pin TO-277 package, it provides a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 60 V, suitable for demanding power management environments.

This diode operates reliably across a broad temperature range from -40°C up to 175°C, making it apt for automotive and industrial use as denoted by its AEC-Q101 qualification. The device’s low forward voltage drop of 0.64 V results in reduced power dissipation, enhancing efficiency in power inverters, freewheeling circuits, and DC/DC converters.

Measuring 6.65 mm in length, 4.75 mm in width, and 1.2 mm in height, this compact component is optimized for automated assembly processes. Its peak non-repetitive forward surge current rating of 140 A supports transient conditions commonly encountered in switching applications.

Manufactured under RoHS compliance, the V8PM6HM3/H diode fulfills environmental and safety standards required in modern electronics. Its robust electrical performance and automotive certification make it well-suited for integration within commercial, automotive, and industrial electronics systems requiring efficient rectification.

This diode features low forward voltage drop reducing power losses. It supports a maximum continuous forward current of 8 amperes. The peak reverse repetitive voltage rating is 60 volts. Designed to operate within a wide temperature range from -40°C to 175°C.

Its compact dimensions are 6.65 mm length, 4.75 mm width, and 1.2 mm height. The diode has a peak non-repetitive forward surge current of 140 amperes. It complies with RoHS standards and automotive standard AEC-Q101. Low leakage current and fast switching speeds make it suitable for DC/DC converters and polarity protection.

Ideal for automated placement in commercial, industrial, and automotive applications. Explore more components in the Schottky Diode category for diverse industrial, commercial, automotive, and electronics manufacturing applications at EnvMart.
