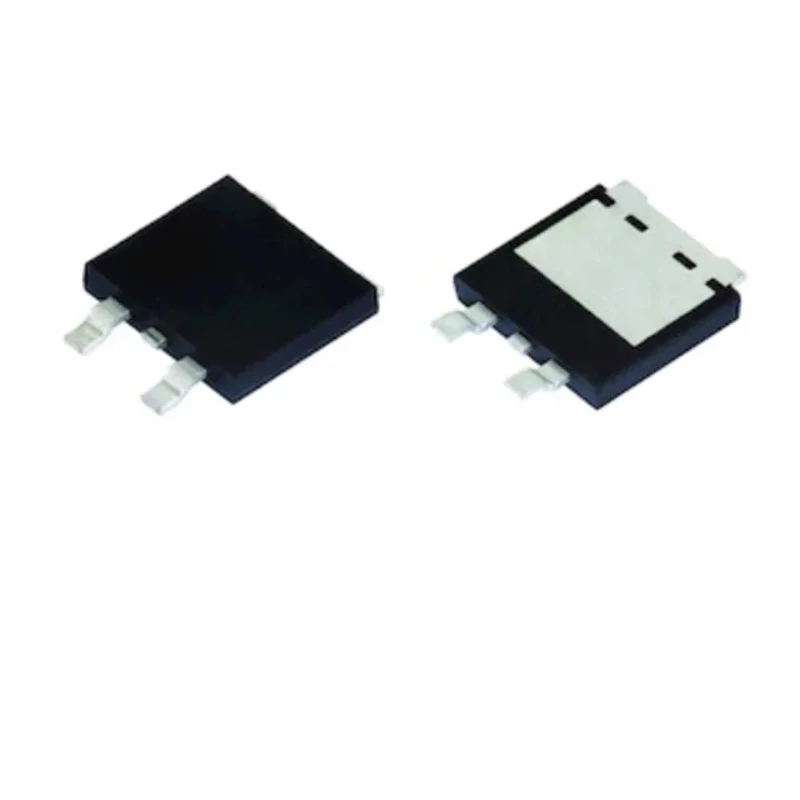

Vishay 170 V 20 A Schottky Diode Surface Mount TO-263AC Package 3-Pin D2PAK V20D170C-M3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 12.93mm |
| Length | 10.2mm |
| Model | V20D170C-M3/I |
| Width | 1.23mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 170V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.9V |
Key Features
- Maximum continuous forward current of 20 A suitable for high current applications.
- Peak reverse repetitive voltage of 170 V ensuring robust blocking capability.
- Low forward voltage drop of 0.9 V minimizes power losses.
- Operating temperature range from -40°C to 175°C supports harsh environments.
- 3-pin TO-263AC package provides easy surface mounting and good thermal performance.
- Automotive standard AEC-Q101 compliant for automotive applications.
- Schottky diode configuration with 2x common cathode pairs for improved efficiency.
- Peak non-repetitive forward surge current of 150 A for short transient tolerance.
Product Description
Vishay V20D170C-M3/I is a high-performance Schottky diode designed in a TO-263AC 3-pin D2PAK surface mount package. It features a maximum continuous forward current rating of 20 A and a peak reverse repetitive voltage of 170 V. With a low forward voltage drop of 0.9 V, this diode reduces power dissipation and improves energy efficiency, ideal for fast switching applications.
The diode operates reliably in a wide temperature range from -40°C to 175°C, making it suitable for commercial, industrial, and automotive environments. It complies with the automotive standard AEC-Q101, exhibiting robust performance for automotive electronics.
Its typical use includes applications in high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits. The dual common cathode pair configuration enhances its current handling and switching speed. The device is RoHS compliant, ensuring it meets environmental standards.
The compact 3-pin TO-263AC surface mount package allows automated placement and excellent thermal management, simplifying integration into densely packed PCBs. Low leakage current and high surge current tolerance enhance reliability under transient conditions.
Maximum continuous forward current of 20 A. Peak reverse repetitive voltage of 170 V. Low forward voltage drop of 0.9 V. Wide operating temperature range from -40°C to 175°C. 3-pin TO-263AC surface mount package. Automotive standard AEC-Q101 compliant.
Schottky diode with 2x common cathode pair configuration. Peak forward surge current of 150 A. Peak reverse current of 5 mA. RoHS compliant for environmental safety.
This diode is ideal for various industrial applications, including power electronics, automotive electronics, and consumer electronics requiring efficient, low-loss diode solutions with robust performance. Explore our semiconductor category for more Vishay components and related Schottky diodes.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V20D170C-M3/I is 20 A, making it suitable for high current applications.
This model has a peak reverse repetitive voltage rating of 170 V, ensuring robust blocking capability.
The forward voltage drop of the Vishay V20D170C-M3/I is 0.9 V, which minimizes power losses during operation.
It operates reliably within a temperature range of -40°C to 175°C, making it suitable for harsh environments.
The diode is housed in a 3-pin TO-263AC surface mount package, which allows for easy surface mounting and good thermal performance.
Yes, it is compliant with the automotive standard AEC-Q101, making it suitable for automotive applications.
The peak non-repetitive forward surge current rating for this diode is 150 A, allowing it to handle short transient conditions effectively.
This model features a Schottky diode configuration with 2x common cathode pairs, enhancing its current handling and switching speed.
The peak reverse current for the Vishay V20D170C-M3/I is 5 mA.
The dimensions of the Vishay V20D170C-M3/I are 10.2 mm in length, 1.23 mm in width, and 12.93 mm in height.
Yes, the Vishay V20D170C-M3/I is RoHS compliant, ensuring it meets environmental safety standards.
This diode is suitable for applications in high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits.
