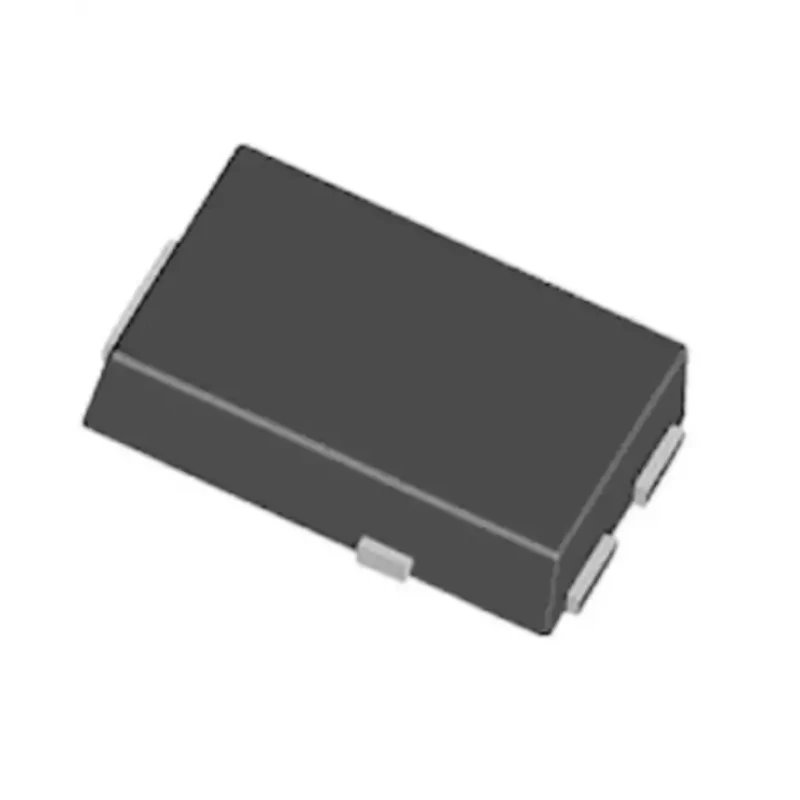

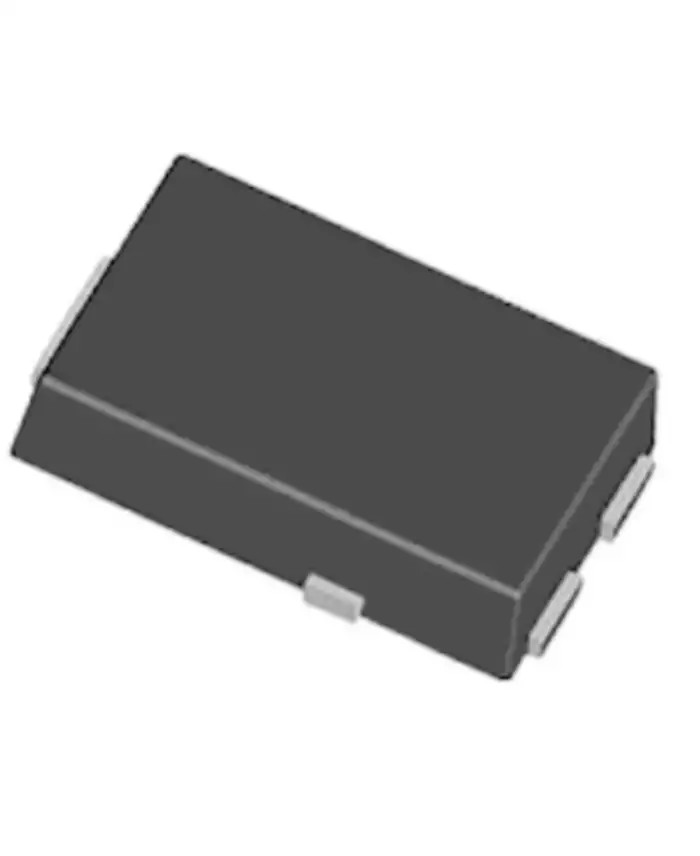

Vishay 60 V 15 A Schottky Diode, Surface Mount, 3-Pin TO-277 Package V15PM6HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 4.75mm |
| Brand | Vishay |
| Height | 4.8mm |
| Length | 6.65mm |
| Model | V15PM6HM3/H |
| Width | 1.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- Designed for high frequency inverter, DC/DC converter, and polarity protection applications.
- Features low forward voltage drop resulting in reduced power losses.
- Has low leakage current ensuring energy efficiency.
- Complies with RoHS and automotive AEC-Q101 standards for quality and safety.
- Operates reliably within -40°C to 175°C temperature range.
- Single diode configuration for effective rectification and switching.
- Compact dimensions of 6.65 mm length, 4.8 mm height, 1.2 mm width, and 4.75 mm diameter for space-saving PCB design.
- Peak reverse repetitive voltage of 60 V and peak non-repetitive forward surge current of 220 A.
Product Description
Vishay V15PM6HM3/H is a Schottky Diode rated at 60 V and 15 A continuous forward current, housed in a TO-277 3-pin surface mount package suitable for industrial, automotive, and electronic component applications. Its trench MOS barrier technology provides fast switching speeds with a low forward voltage drop, optimizing efficiency in power rectification and conversion.
This diode is ideal for use in high frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection systems. It supports automotive industry standards with AEC-Q101 certification and complies with RoHS environmental regulations, making it suitable for use in automotive and commercial electronic designs.
The diode exhibits low leakage current, which helps minimize power loss and heat generation. Designed for harsh operating environments, it functions reliably within a temperature range spanning from -40°C to +175°C.
With compact dimensions of length 6.65 mm, height 4.8 mm, width 1.2 mm, and diameter 4.75 mm, the device facilitates space-efficient PCB layouts. Key electrical specs include a peak reverse repetitive voltage (Vrrm) of 60 V, peak non-repetitive forward surge current (Ifsm) of 220 A, maximum forward voltage (Vf) of 0.64 V, and a peak reverse current (Ir) of 6.5 mA.
This product is manufactured in China, ensuring consistent fabrication quality. The single diode configuration and three-pin design support optimized integration into power electronics assemblies.
Designed for high frequency inverter, DC/DC converter, and polarity protection applications. Low forward voltage drop and low power losses improve efficiency. Low leakage current minimizes energy consumption. Complies with RoHS and AEC-Q101 automotive standards.
Wide operating temperature range of -40°C to 175°C. Compact TO-277 3-pin surface mount package. Peak reverse voltage of 60 V and surge current of 220 A. Single diode rectifier configuration. Manufactured in China to stringent quality standards.
Explore the full range of semiconductor components available at EnvMart for your industrial, automotive, and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 15 A.
The peak reverse repetitive voltage (Vrrm) rating is 60 V.
The dimensions of the TO-277 package are 6.65 mm in length, 4.8 mm in height, 1.2 mm in width, and it has a diameter of 4.75 mm.
This diode operates reliably within a temperature range of -40°C to +175°C.
The maximum forward voltage (Vf) for this model is 0.64 V.
The peak non-repetitive forward surge current (Ifsm) is rated at 220 A.
Yes, it complies with RoHS and AEC-Q101 automotive standards.
This model features a single diode configuration.
The peak reverse current (Ir) is 6.5 mA.
It is suitable for high frequency inverters, DC/DC converters, and polarity protection applications.
The mounting type for this diode is surface mount.
This diode is manufactured in China.
