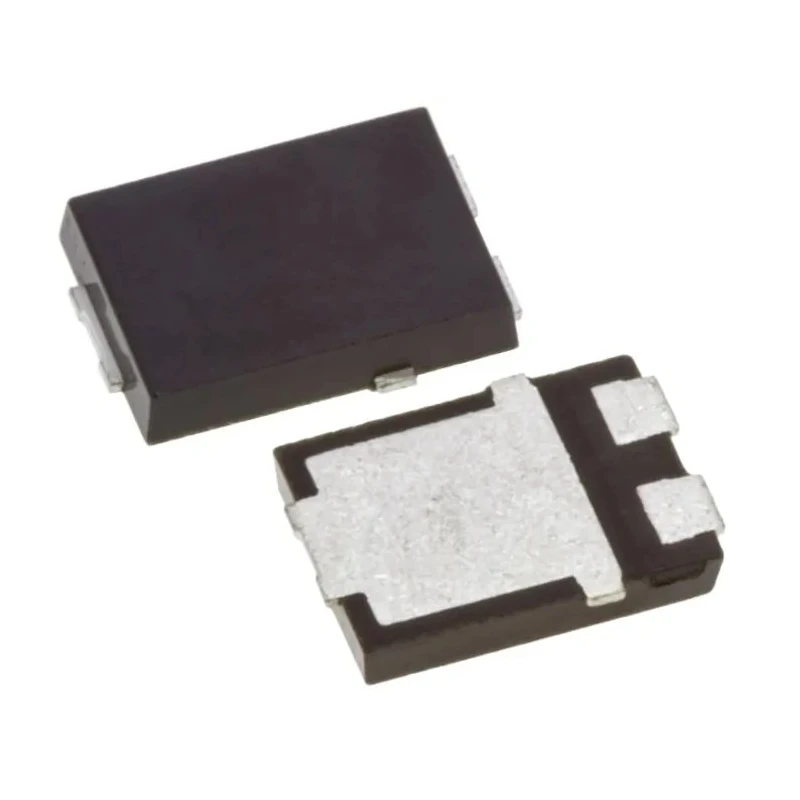

Vishay 60 V 8 A Surface Mount Schottky Diode 3-Pin TO-277 V8PM63HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.65mm |
| Model | V8PM63HM3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- Surface mount type for PCB applications.
- Schottky rectifier technology for low forward voltage drop.
- Peak reverse repetitive voltage rating of 60 V.
- Maximum continuous forward current of 8 A for high current applications.
- 3-pin TO-277 package for compact integration.
- Wide operating temperature range from -40°C to 175°C.
- Extremely low forward voltage of 0.64 V typical.
- Peak non-repetitive forward surge current of 140 A.
Product Description
The Vishay V8PM63HM3/H is a high current density, surface mount Schottky diode designed with Trench MOS Barrier Schottky technology for superior performance. Rated for a peak reverse voltage of 60 V and continuous forward current of 8 A, this device provides ultra-low forward voltage drop of 0.64 V typically at rated current, thus reducing power loss and enabling high efficiency operation.
Packaged in a compact 3-pin TO-277 case with dimensions of approximately 6.65 mm length, 4.75 mm width, and 1.2 mm height, this diode suits applications requiring low profile components. It supports a broad operating temperature range from -40°C to 175°C, making it suitable for demanding industrial and automotive environments.
Key electrical parameters include a peak non-repetitive surge current of 140 A and a peak reverse current of 3.5 mA, ensuring robustness during transient events. The device is RoHS and AEC-Q101 certified, confirming compliance with environmental and automotive quality standards.
This Schottky diode is ideal for use in low voltage high frequency inverters, DC/DC converters, freewheeling diodes, and polarity protection circuits in power and electronic systems. Its low forward voltage and power losses contribute to efficient circuit designs in industrial, automotive, and commercial electronics.
Surface mount type for PCB applications. Schottky rectifier technology for low forward voltage drop. Peak reverse repetitive voltage rating of 60 V. Maximum continuous forward current of 8 A for high current applications.
3-pin TO-277 package for compact integration. Wide operating temperature range from -40°C to 175°C. Extremely low forward voltage of 0.64 V typical. Peak non-repetitive forward surge current of 140 A. Automotive compliant with AEC-Q101 standard.
RoHS compliant construction ensuring environmental safety.
This diode is widely used in industrial electronics, automotive systems, power supplies, and construction of efficient semiconductor circuits. It is an essential component for engineers focusing on power rectification in demanding environments.
Explore more high-performance Vishay semiconductor components and related electronic parts on EnvMart for comprehensive solutions suitable for your industrial and commercial projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of this diode is 60 V.
This model has a maximum continuous forward current of 8 A.
The TO-277 package measures approximately 6.65 mm in length, 4.75 mm in width, and 1.2 mm in height.
It operates within a temperature range from -40°C to 175°C.
The typical forward voltage drop is 0.64 V at the rated current.
The peak non-repetitive forward surge current rating is 140 A.
This diode complies with the AEC-Q101 automotive standard.
Yes, this diode is RoHS compliant, ensuring environmental safety.
It supports surface mounting for PCB applications.
The peak reverse current is rated at 3.5 mA.
This diode is a Schottky rectifier, designed for low forward voltage drop.
It is commonly used in low voltage high frequency inverters, DC/DC converters, and polarity protection circuits.
