| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.6mm |
| Length | 2.5mm |
| Model | PLZ30B-HG3_A/H |
| Mount Type | Surface |
| Series | PLZ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AC (MicroSMF) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 29.13V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 55Ω |

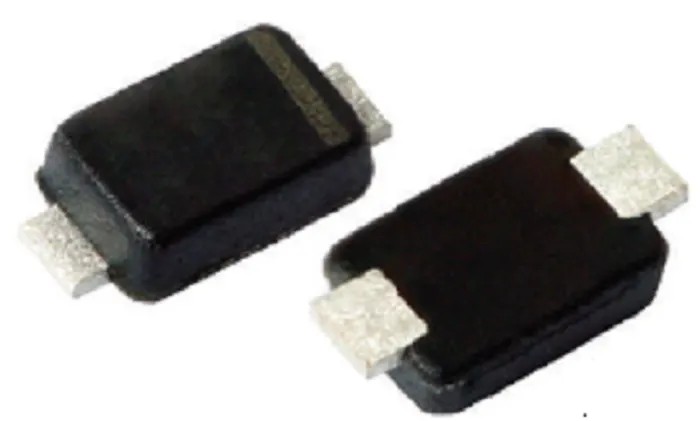

The Vishay PLZ30B-HG3_A/H is a high-quality, general purpose Zener diode designed to provide dependable voltage regulation in electronic circuits. This diode features a nominal Zener voltage of 29.13 V and maximally dissipates 500 mW, making it suitable for low power stabilization applications.
It utilizes a compact surface mount DO-219AC (MicroSMF) package that supports efficient wave and reflow soldering, withstanding high temperature soldering conditions up to 260°C at the terminals.
The diode operates across a wide temperature range from -55°C to 150°C, making it apt for automotive and industrial environments. Being compliant with IEC 61000-4-2, IEC 61760-1, and RoHS, it meets stringent quality and environmental standards.
Its ultra-low leakage current of 200 nA and maximum Zener impedance of 55 ohms confer excellent voltage stability and energy efficiency. Designed for stable voltage regulation with low leakage current. Features a compact low-profile MicroSMF (DO-219AC) surface mount package.
Capable of dissipating maximum power of 500 mW efficiently. Has a nominal Zener voltage of 29.13 volts and test current of 5 mA. Operates reliably within -55°C to 150°C temperature range. Complies with IEC 61000-4-2, IEC 61760-1, RoHS standards for quality and safety.
Supports automotive applications as it meets AEC-Q101 standard. Extremely low reverse leakage current of 200 nA ensures minimal power loss. Maximum Zener impedance is 55 ohms for stable performance. Compact dimensions of 2.5 mm length and 0.6 mm height enable tight PCB layouts.
Typical industrial applications include voltage reference and regulation in power supplies, automotive electronics, manufacturing control systems, and consumer electronics. This advanced Zener Diode meets the demands of high reliability and efficiency in laboratory, industrial automation, automotive, and electronics manufacturing sectors.
Explore the full range of Vishay electronic components at EnvMart to source quality semiconductor devices with trusted performance.
