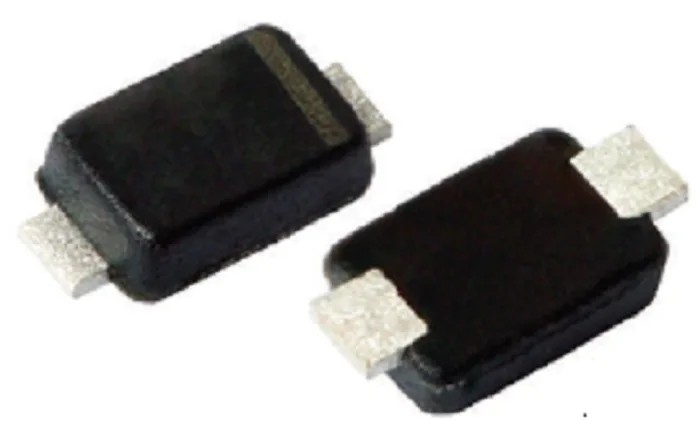

Vishay 1, 26.95 V General Purpose Zener Diode Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ27C-HG3_A/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1, 26.95 V General Purpose Zener Diode Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ27C-HG3_A/H

Name: Vishay 1, 26.95 V General Purpose Zener Diode Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ27C-HG3_A/H
Brand: Vishay
SKU: 289667
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	0.6mm
Length	2.5mm
Model	PLZ27C-HG3_A/H
Mount Type	Surface
Series	PLZ
Maximum Operating Temperature	150°C
Package Type	DO-219AC (MicroSMF)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	200nA
Nominal Zener Voltage Vz	26.95V
Zener Type	General Purpose
Maximum Zener Impedance	45Ω

Key Features

The diode features low leakage current, enhancing electrical stability.
It operates efficiently between -55°C and 150°C temperatures.
The device has excellent stability due to its silicon planar technology.
This Zener diode is suitable for general purpose voltage regulation applications.
It complies with RoHS, IEC 61760-1, IEC 61000-4-2 standards and AEC-Q101 automotive standard.
The device is compatible with wave and reflow soldering processes.
Package dimensions are 2.5 mm length and 0.6 mm height supporting compact PCB designs.
Maximum reverse leakage current is 200 nA with a test current of 5 mA.

Product Description

Vishay PLZ27C-HG3_A/H is a high-quality general purpose Zener diode designed for voltage regulation applications in electronic circuits. This single-element diode features a nominal Zener voltage of 26.95 V and supports a maximum power dissipation of 500 mW.

It is housed in a low-profile DO-219AC MicroSMF surface mount package measuring 2.5 mm in length and 0.6 mm in height, allowing for space-efficient PCB assemblies. The diode exhibits a maximum reverse leakage current of 200 nA and a Zener impedance of 45 Ω which ensures stable voltage regulation.

Operating temperature range spans from -55°C to 150°C, making the diode suitable for a broad range of industrial, automotive, and consumer electronic applications. Single diode configuration with 2 pins for easy integration.

Designed for wave and reflow soldering with high temperature durability up to 260°C. Conforms to RoHS, IEC 61760-1, IEC 61000-4-2, and AEC-Q101 automotive standards. Compact Si planar technology offers excellent electrical stability and minimal leakage.

Ideal for power supplies, voltage regulation, and protection circuits across industrial and automotive sectors. This Zener diode from Vishay is engineered to deliver reliable performance with a small footprint, suitable for tight PCB layouts in advanced electronics manufacturing.

For precise specifications and additional technical documentation, designers can refer to Vishay's official datasheets and RoHS compliance certificates. Explore a wide range of discrete semiconductor components at EnvMart for your industrial and commercial design needs.
