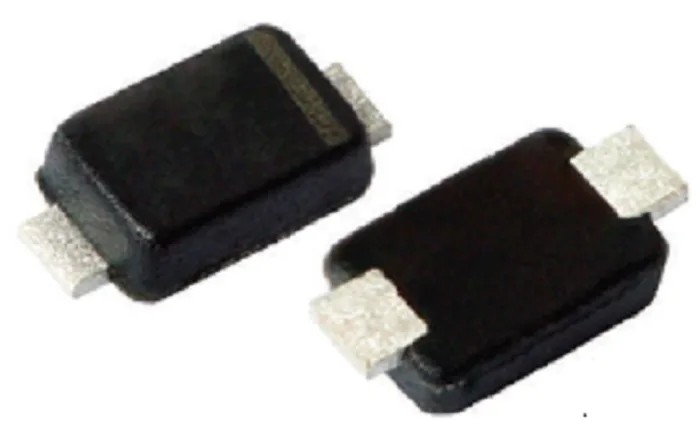

Vishay Zener Diode 24.85 V, Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ24D-HG3_A/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay Zener Diode 24.85 V, Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ24D-HG3_A/H

Name: Vishay Zener Diode 24.85 V, Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ24D-HG3_A/H
Brand: Vishay
SKU: 289664
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	0.6mm
Length	2.5mm
Model	PLZ24D-HG3_A/H
Mount Type	Surface
Series	PLZ
Maximum Operating Temperature	150°C
Package Type	DO-219AC (MicroSMF)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	200nA
Nominal Zener Voltage Vz	24.85V
Zener Type	General Purpose
Maximum Zener Impedance	35Ω

Key Features

This Zener diode offers a nominal voltage of 24.85 V with a maximum power dissipation of 500 mW.
The component is housed in a low profile DO-219AC (MicroSMF) surface mount package supporting wave and reflow soldering.
The device features a low leakage current of 200 nA ensuring excellent stability.
Designed with a test current of 5 mA and maximum Zener impedance of 35 ohms for reliable voltage regulation.
The diode supports a wide operating temperature range from -55°C to 150°C for industrial and automotive environments.
Meets IEC 61000-4-2, IEC 61760-1, RoHS standards, and complies with automotive AEC-Q101 qualification.
Compact at 2.5 mm in length and 0.6 mm in height, it fits applications requiring small size and efficient power handling.
Ideal for use in electronic devices requiring precise voltage stabilization and protection against voltage transients.

Product Description

The Vishay PLZ24D-HG3_A/H is a high-quality Zener diode designed for stable voltage regulation with a nominal Zener voltage of 24.85 V and a power rating of 500 mW. This single element diode is housed in a compact DO-219AC (MicroSMF) surface mount package, allowing easy integration in modern electronic and power circuits.

This Zener diode is silicon planar type, offering very low leakage current (200 nA) and excellent stability suitable for industrial, automotive, laboratory, and manufacturing electronic applications. It supports a robust operating temperature range from -55°C to 150°C, making it highly reliable in harsh environments.

The component is compliant with IEC 61000-4-2 and IEC 61760-1 standards and meets RoHS requirements, as well as automotive industry standard AEC-Q101, emphasizing its quality and durability.

Its physical dimensions (2.5 mm length and 0.6 mm height) and surface mount design facilitate compact PCB layouts. The diode’s maximum impedance of 35 ohms and test current of 5 mA ensure accurate voltage regulation and protection against voltage spikes.

This diode provides stable voltage performance in electronic circuit protection and voltage regulation tasks. Its compact MicroSMF package suits automated assembly and dense circuit designs. The device supports general-purpose Zener function across various semiconductor applications.

It can be used in automotive power electronics requiring compliance with industry standards. Offers reliable operation under varying environmental conditions due to wide temperature tolerance.

Overall, the Vishay PLZ24D-HG3_A/H Zener diode is an excellent choice for engineers and manufacturers needing a dependable, small-form factor Zener diode for voltage stabilization and protection in industrial, automotive, laboratory, and commercial electronic equipment.
