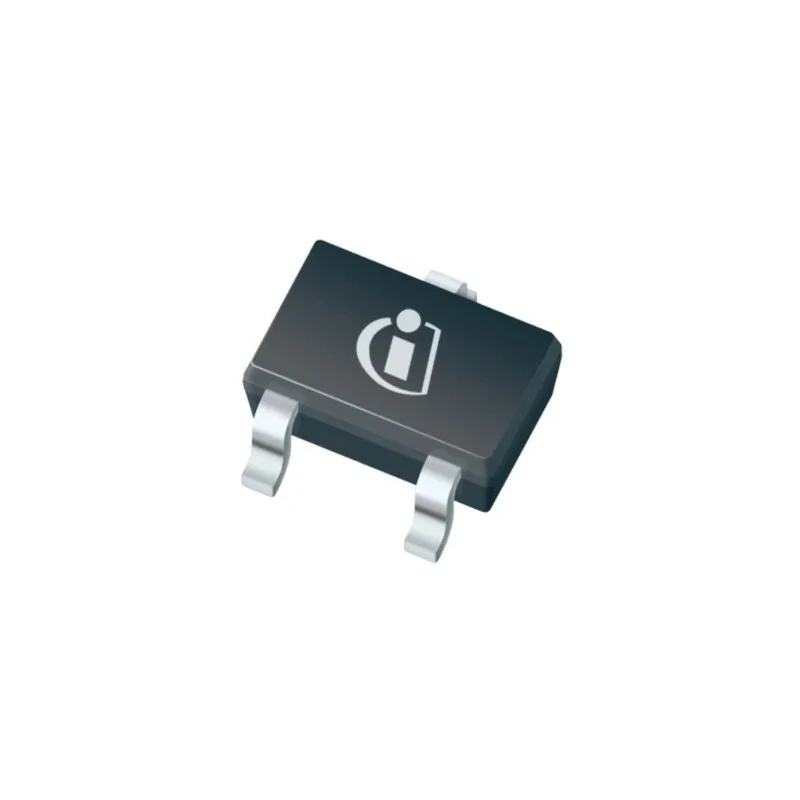

Infineon 4 V 110 mA Schottky Switching Diode 3-Pin Surface Mount SOT-23 BAT1504RE6152HTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1mm |
| Length | 2.9mm |
| Model | BAT1504RE6152HTSA1 |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | BAT1504R |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, Pb Free, JEDEC47/20/22, Halogen Free |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 110mA |
| Peak Reverse Repetitive Voltage Vrrm | 4V |
| Diode Configuration | Reverse Series Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Maximum Forward Voltage Vf | 0.3V |
Key Features
- The diode is configured as a reverse series pair, ideal for switching applications.
- It features a low forward voltage drop of 0.3 V for energy-efficient operation.
- The device operates reliably within a temperature range of -55°C to 150°C.
- Manufactured with RoHS and Pb-free compliance, ensuring environmental safety.
- Peak reverse current is minimal at 10 μA, supporting low leakage performance.
- Designed for integration in satellite and security systems requiring robust switching diodes.
Product Description
Infineon BAT1504RE6152HTSA1 Schottky Switching Diode is a highly reliable 3-pin surface mount component featuring low barrier silicon N-type technology with an integrated guard ring on the chip for overvoltage protection. It supports a forward current of 110 mA and a peak reverse repetitive voltage of 4 V, making it ideal for efficient switching applications in high-frequency circuits.
This diode is packaged in a compact SOT-23 form factor with dimensions of 2.9 mm length, 2.4 mm width, and 1 mm height, optimally designed for dense PCB layouts in electronic assemblies.
The device operates safely across a wide temperature range, from -55°C to 150°C, ensuring dependable performance in harsh industrial and aerospace environments. Its low forward voltage of 0.3 V reduces power loss, contributing to energy-efficient circuit design.
Manufactured in compliance with global standards including RoHS, Pb-free, JEDEC47/20/22, and Halogen free, the BAT1504RE6152HTSA1 adheres to stringent quality and environmental regulations.
This Schottky Diode is suitable for applications in satellite communication systems and security equipment where reliable fast switching and low leakage current (peak reverse current 10 μA) are essential.
The diode features a reverse series pair configuration for effective switching. Surface mount package simplifies automated assembly processes. It supports moderate current and voltage ratings suitable for various low power circuits.
Compact size allows use in space-constrained designs. Compliance with RoHS and halogen-free regulations minimizes environmental impact.
For professionals in electronics manufacturing, telecommunications, and aerospace industries, this Infineon Schottky switching diode offers a balanced combination of durability, performance, and environmental compliance.
Explore more semiconductor solutions and related components on EnvMart for reliable industrial-grade electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the BAT1504RE6152HTSA1 is 110 mA.
This model has a peak reverse repetitive voltage rating of 4 V.
The maximum forward voltage drop for this Schottky diode is 0.3 V.
It operates reliably within a temperature range of -55°C to 150°C.
The dimensions of the SOT-23 package are 2.9 mm in length, 2.4 mm in width, and 1 mm in height.
The diode is configured as a reverse series pair, which is suitable for effective switching applications.
The peak reverse current for this diode is minimal at 10 μA, supporting low leakage performance.
This model complies with RoHS, Pb-free, JEDEC47/20/22, and is halogen-free.
The BAT1504RE6152HTSA1 is designed for surface mount applications.
It is suitable for applications in satellite communication systems and security equipment requiring reliable fast switching.
This diode has a pin count of 3.
The country of origin for this diode is India.
