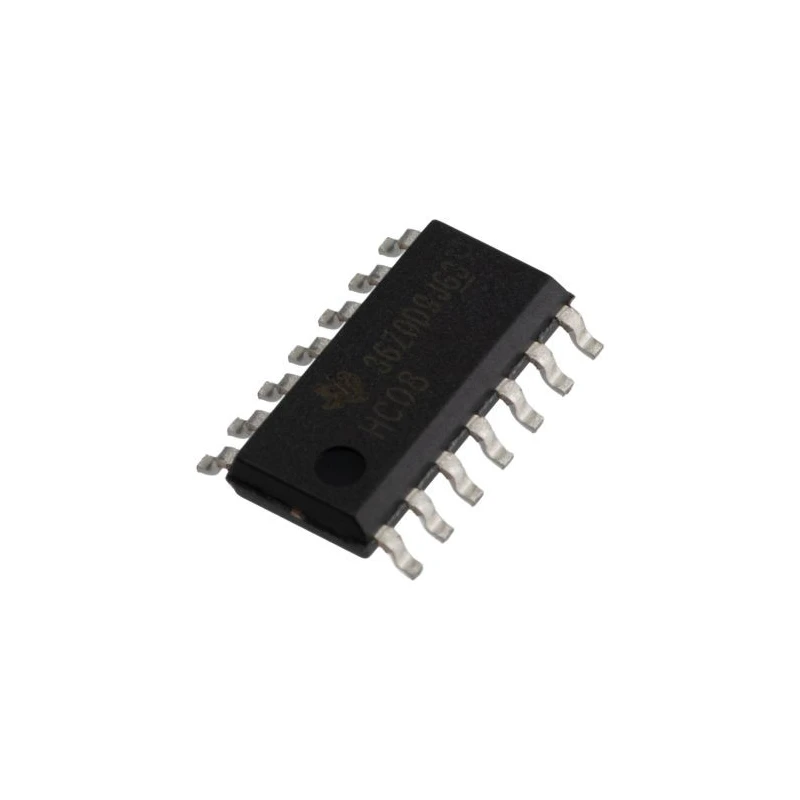

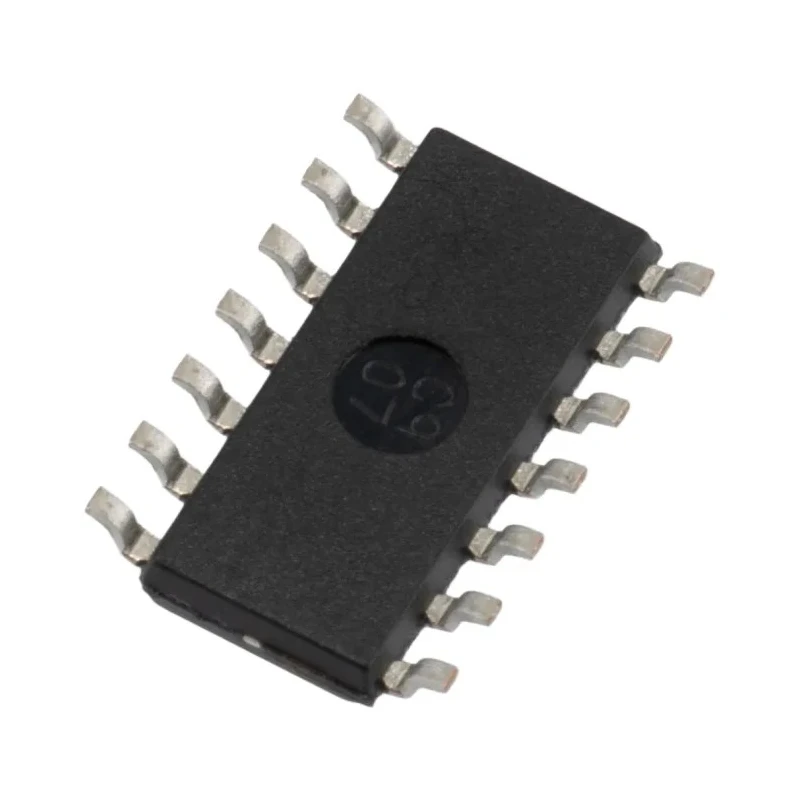

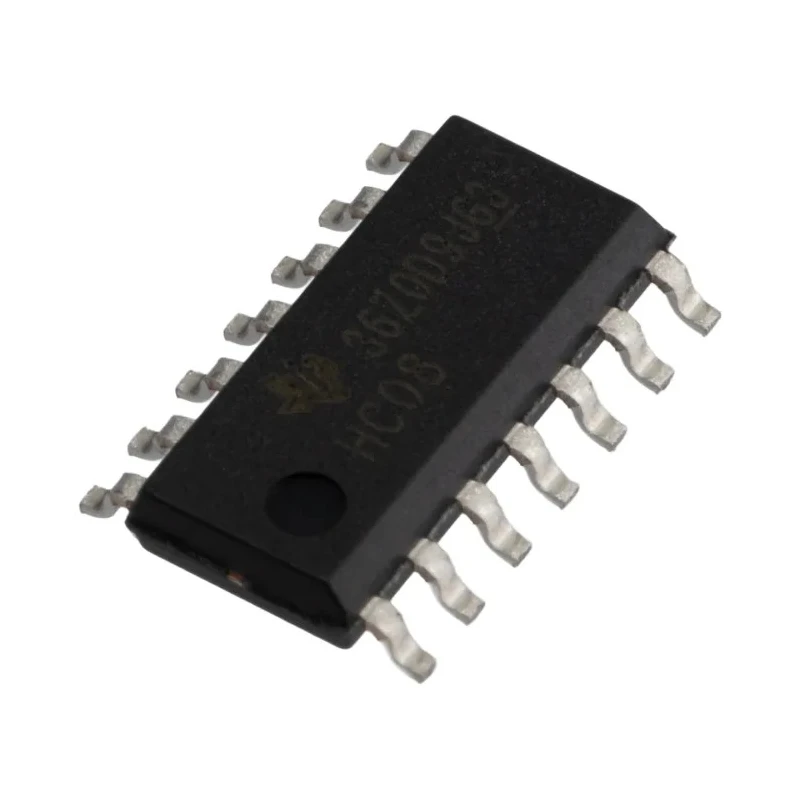

Texas Instruments 4 2-Input AND Logic Gate Surface Mount SOIC 14-Pin SN74HC08DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | SN74HC08DR |
| Mount Type | Surface |
| Output type | Push Pull |
| Series | SN74 |
| Input Type | CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | AND |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 24ns |
| Maximum Low Level Output Current | 5.2mA |
| Number of Inputs per Gate | 2 |
Key Features
- Contains four independent 2-input AND gates in a 14-pin SOIC package.
- Operates with a supply voltage range of 2 V to 6 V.
- Maximum propagation delay time is 24 nanoseconds at standard load conditions.
- Features push-pull output type with a high output current of -5.2 mA and low output current of 5.2 mA.
- Functioning temperature range from -40°C to 85°C ensures robust industrial performance.
- Designed for surface mount applications for compact and efficient PCB layouts.
- Logic function is AND, input type is CMOS, compatible with HC logic family.
Product Description
Texas Instruments SN74HC08DR is a surface mount 14-pin SOIC logic gate device featuring four independent 2-input AND gates designed for CMOS input and HC logic family standards. Operating with a voltage range from 2 V to 6 V, this component provides reliable logic AND function performance in various electronic and industrial applications.
This Logic Gate IC offers a maximum propagation delay time of 24 nanoseconds under standard load conditions, supporting efficient high-speed logic processing. The push-pull output configuration allows for high-level output current of -5.2 mA and low-level output current of 5.2 mA, suitable for driving a variety of loads.
The device is specified to operate in industrial temperature ranges from -40°C to 85°C, ensuring durability and reliability in harsh environments. The compact 14-pin Small Outline Integrated Circuit package measures 8.75 mm in length and 1.75 mm in height, making it ideal for dense PCB layouts and automated mounting in surface mount technology (SMT) applications.
This component is highly applicable in industrial automation, embedded electronics, communication systems, and consumer electronics where logical AND functions are necessary. Its CMOS input type and HC logic family classification make it compatible with a wide range of digital circuits and systems.
Contains four independent 2-input AND gates in a 14-pin SOIC package. Operates from 2 V to 6 V supply voltage with CMOS input. Push-pull output with maximum output currents of ±5.2 mA. Functioning temperature range from -40°C to 85°C for industrial use.
Compact surface mount package suitable for automated PCB assembly. Maximum propagation delay time is 24 nanoseconds at standard load. Compatible with HC logic family digital circuits. Ideal for industrial electronics, embedded systems, and communication equipment.
Explore more semiconductor products and logic ICs on EnvMart for diverse industrial and electronics applications.
