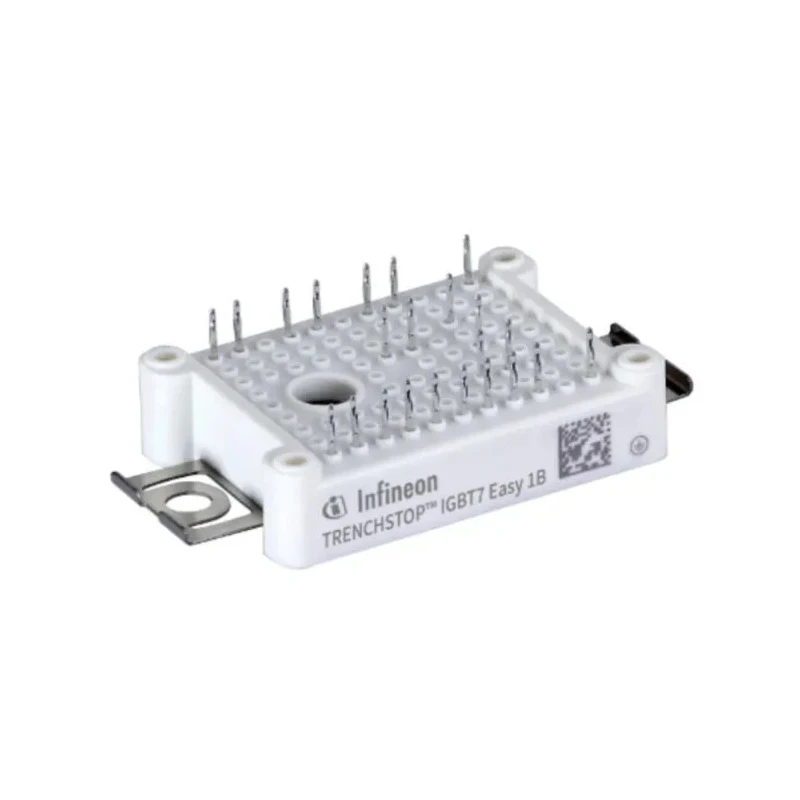

Infineon N-Channel IGBT Module 10 A 1200 V EASY1B Clamp FP10R12W1T7B11BOMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 12mm |
| Length | 33.8mm |
| Model | FP10R12W1T7B11BOMA1 |
| Width | 62.8mm |
| Mount Type | Clamp |
| Series | FP10 |
| Maximum Operating Temperature | 150°C |
| Package Type | EASY1B |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Collector Current Ic | 10A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.82V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 20mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Features TRENCHSTOP IGBT7 technology for efficient power switching.
- Maximum power dissipation of 20 mW ensures reliable operation.
- Clamp mounting type provides secure installation in power modules.
- Operating temperature range from -40°C to 150°C supports demanding industrial environments.
- Compact dimensions of 62.8 mm width, 33.8 mm length, and 12 mm height optimize space usage.
- Maximum gate-emitter voltage rating of 20 V ensures robust gate control.
- Collector-emitter saturation voltage at 1.82 V reduces conduction losses.
- RoHS compliant respecting environmental standards.
Product Description
Infineon FP10R12W1T7B11BOMA1 is a high-performance N-Channel IGBT Module designed for power electronic applications requiring robust switching capabilities. It incorporates the advanced TRENCHSTOP IGBT7 technology, delivering a continuous collector current rating of 10 A and a maximum collector-emitter voltage of 1200 V. Its EASY1B package with clamp mounting facilitates ease of integration into power modules and systems.
The module offers a maximum power dissipation of 20 mW, making it suitable for efficient power control in auxiliary inverters, motor drives, and air conditioning units. With an operating temperature range from -40°C to 150°C, it maintains stable performance under extreme industrial conditions.
Compact design dimensions of 62.8 mm width, 33.8 mm length, and 12 mm height allow for space-saving circuit layouts. It features a maximum gate-emitter voltage of 20 V and a low collector-emitter saturation voltage of 1.82 V, optimizing switching efficiency and reducing energy losses.
The Infineon FP10R12W1T7B11BOMA1 module is RoHS compliant, ensuring adherence to environmental standards and suitability for modern electrical components. Features TRENCHSTOP IGBT7 technology for advanced power switching performance.
Rated for 10 A continuous collector current and 1200 V collector-emitter voltage. Compact EASY1B package with clamp mount supports secure, space-efficient installations. Wide operating temperature range from -40°C to 150°C.
Low saturation voltage of 1.82 V reduces conduction losses and improves efficiency. RoHS compliant for environmental safety compliance.
This product is ideal for industrial applications requiring reliable and efficient power semiconductor modules such as motor drives, auxiliary inverters, and HVAC control systems. Explore more Infineon semiconductor modules and related power management solutions at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current rating of this model is 10 A.
It has a maximum collector-emitter voltage rating of 1200 V.
The operating temperature range is from -40°C to 150°C.
The module has a height of 12 mm and a width of 62.8 mm.
It uses a clamp mounting type for secure installation.
The maximum gate-emitter voltage rating is 20 V.
The collector-emitter saturation voltage is 1.82 V.
The maximum power dissipation is 20 mW.
Yes, this module is RoHS compliant, ensuring it meets environmental standards.
It uses the EASY1B package type.
It incorporates TRENCHSTOP IGBT7 technology for efficient power switching.
This model is suitable for applications such as motor drives, auxiliary inverters, and HVAC control systems.
