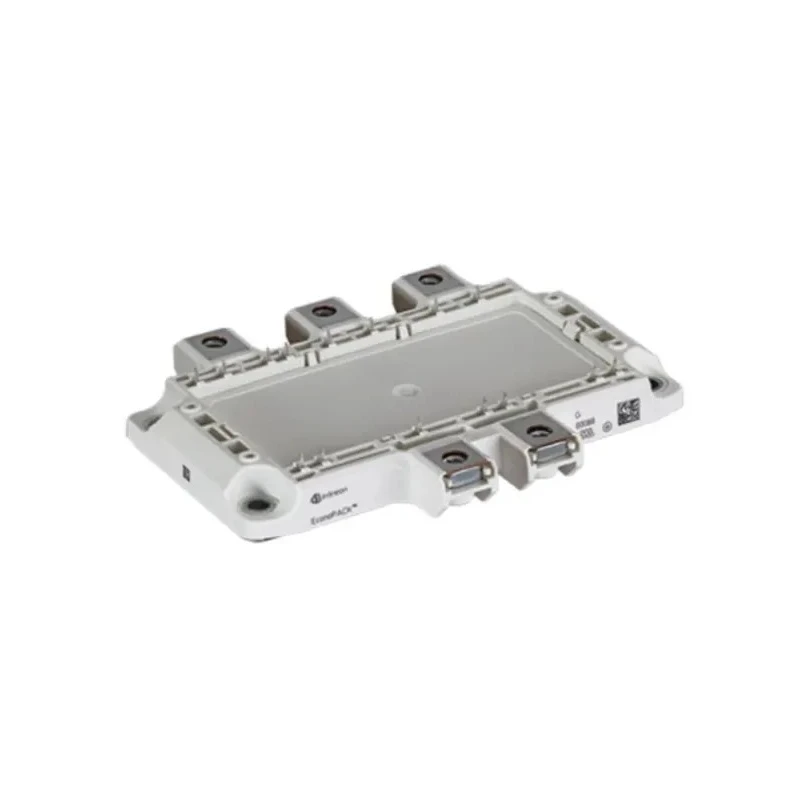

Infineon N-Channel IGBT Module 200 A 1200 V 20-Pin ECONO4 Clamp Mount FS200R12PT4PBOSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | FS200R12PT4PBOSA1 |
| Mount Type | Clamp |
| Series | FS200R12PT4P |
| Maximum Operating Temperature | 150°C |
| Package Type | ECONO4 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ULapproved(E83335) |
| Pin Count | 20 |
| Maximum Continuous Collector Current Ic | 200A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 20mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Features ECONO4 package with 20-pin configuration for efficient mounting.
- Clamp mount type ensures secure installation in electronic circuits.
- Capable of continuous collector current of 200 amperes.
- Supports maximum collector emitter voltage of 1200 volts.
- Maximum power dissipation of 20 milliwatts for optimal performance.
- Operates within the temperature range of -40°C to 150°C.
- Equipped with TRENCHSTOP IGBT4 technology and PressFIT contacts.
- UL-approved with standard E83335, ensuring industrial safety compliance.
Product Description
The Infineon FS200R12PT4PBOSA1 is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) module featuring a 20-pin ECONO4 package with clamp mount technology. With a maximum continuous collector current rating of 200 A and collector emitter voltage rating of 1200 V, this module efficiently handles demanding power electronics requirements in various industrial and commercial settings.
Built with Infineon's advanced TRENCHSTOP IGBT4 technology and incorporating NTC and PressFIT contact technology, this module provides enhanced reliability, quick assembly without cables or plugs, and is optimized for low inductive system designs. The clamp mount style ensures easy and secure installation, suitable for compact electronic assemblies.
This module operates reliably across a wide temperature range from -40°C minimum to 150°C maximum, making it suitable for harsh environments. The maximum power dissipation is 20 mW, maintaining efficient thermal performance and longevity. UL approval (E83335) underlines the safety and quality standards compliance of this component.
Typical applications include servo motor drives, uninterruptible power supplies (UPS), and other industrial drive and power supply systems where efficient switching and power management are critical. The ECONO4 package and 20-pin design facilitate compact and reliable circuit layouts in demanding environments.
Features ECONO4 package with 20-pin configuration for efficient mounting. Clamp mount type ensures secure installation in electronic circuits. Capable of continuous collector current of 200 amperes. Supports maximum collector emitter voltage of 1200 volts.
Maximum power dissipation of 20 milliwatts for optimal performance. Operates within the temperature range of -40°C to 150°C. Equipped with TRENCHSTOP IGBT4 technology and PressFIT contacts. UL-approved with standard E83335, ensuring industrial safety compliance.
Designed primarily for use in servo motor drives, UPS systems, and other industrial applications. Explore more advanced IGBT Modules and power semiconductors on EnvMart for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this IGBT module is 200 amperes.
This model supports a maximum collector emitter voltage of 1200 volts.
It operates within a temperature range of -40°C to 150°C.
This IGBT module uses a clamp mount type for secure installation in electronic circuits.
The maximum power dissipation for this module is 20 milliwatts.
It is equipped with TRENCHSTOP IGBT4 technology and PressFIT contacts for enhanced reliability.
The ECONO4 package for this module has a pin count of 20.
Yes, this module is UL approved with standard E83335, ensuring compliance with safety standards.
Typical applications include servo motor drives, uninterruptible power supplies (UPS), and other industrial drive and power supply systems.
The maximum gate emitter voltage for this module is 20 volts.
The Infineon FS200R12PT4PBOSA1 is manufactured in India.
The maximum collector emitter saturation voltage for this module is 2.15 volts.
