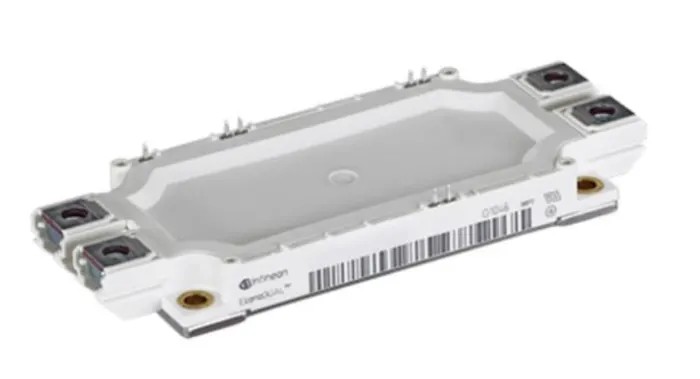

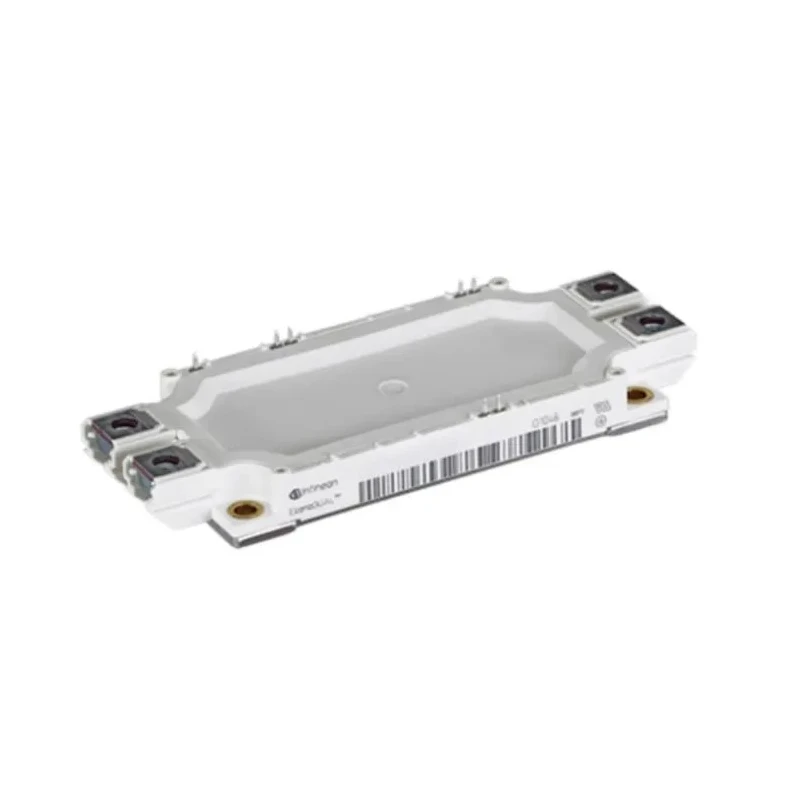

Infineon N-Channel Inverter Module 450 A 1200 V 13-Pin ECONODUAL Clamp FF450R12ME4EB11BPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | FF450R12ME4EB11BPSA1 |
| Mount Type | Clamp |
| Maximum Operating Temperature | 150°C |
| Package Type | ECONODUAL |
| Minimum Operating Temperature | -40°C |
| Pin Count | 13 |
| Maximum Continuous Collector Current Ic | 450A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 20mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Utilizes TRENCHSTOP IGBT4 technology for high efficiency and performance.
- Maximum power dissipation is 20 mW ensuring robust thermal characteristics.
- Designed for applications in motor control, solar energy systems, and UPS systems.
- Supports 3-level NPC2 configuration in a compact ECONODUAL 3 housing.
- Operates reliably in temperature range from -40°C to 150°C.
- Maximum gate-emitter voltage is rated at 20 V.
- No plugs or cables required for easy and reliable assembly.
- Meets UL requirements for 1500 V solar inverters.
Product Description
Infineon FF450R12ME4EB11BPSA1 is a high-performance N-Channel inverter module designed for demanding industrial applications including motor control, solar power conversion, and uninterruptible power supplies (UPS). This inverter module incorporates advanced TRENCHSTOP IGBT4 technology, delivering superior efficiency and reliability under continuous operation with a maximum continuous collector current of 450 A and a collector-emitter voltage of 1200 V.
The device comes in a 13-pin ECONODUAL clamp mount package, featuring a robust clamp type mounting system that facilitates secure and convenient installation without requiring plugs or cables. The compact ECONODUAL 3 housing supports a 3-level NPC2 configuration, aligning with UL standards for 1500 V solar inverters, which makes it particularly suitable for solar energy applications.
Rated for operation over a wide temperature range from -40°C to 150°C, this module is engineered to withstand harsh industrial environments. It offers a maximum power dissipation of 20 mW and maximum gate-emitter voltage of 20 V, ensuring stable and safe operating conditions for extended usage.
The Infineon module is ideal for use in industrial, renewable energy, and electronic power management sectors, where efficiency, durability, and compact design are critical. It enables designers to implement reliable inverter solutions that improve system performance and reduce maintenance needs.
Advanced TRENCHSTOP IGBT4 technology enhances efficiency and performance. Clamp-type mount for easy and reliable assembly with no cables or plugs. Suitable for motor control, solar applications, and UPS systems. Complies with UL requirements for 1500 V solar inverters.
Wide operating temperature range from -40°C to 150°C. Compact ECONODUAL 3 housing reduces system footprint. 13-pin configuration supports flexible design options. Maximum continuous collector current of 450 A. Maximum collector-emitter voltage of 1200 V.
Explore EnvMart for a comprehensive range of Infineon semiconductor modules and inverter components tailored for advanced industrial and renewable energy applications.
Explore more products in our IGBT Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 450 A.
The maximum collector-emitter voltage is rated at 1200 V.
It operates reliably within a temperature range from -40°C to 150°C.
This model uses a clamp-type mounting system for secure installation.
The ECONODUAL package features a 13-pin configuration.
The maximum power dissipation is rated at 20 mW.
It utilizes TRENCHSTOP IGBT4 technology for enhanced efficiency and performance.
It is designed for applications in motor control, solar energy systems, and uninterruptible power supplies (UPS).
The maximum gate-emitter voltage is rated at 20 V.
No, it does not require plugs or cables, allowing for easy and reliable assembly.
Yes, it meets UL requirements for 1500 V solar inverters.
The country of origin for this module is India.
