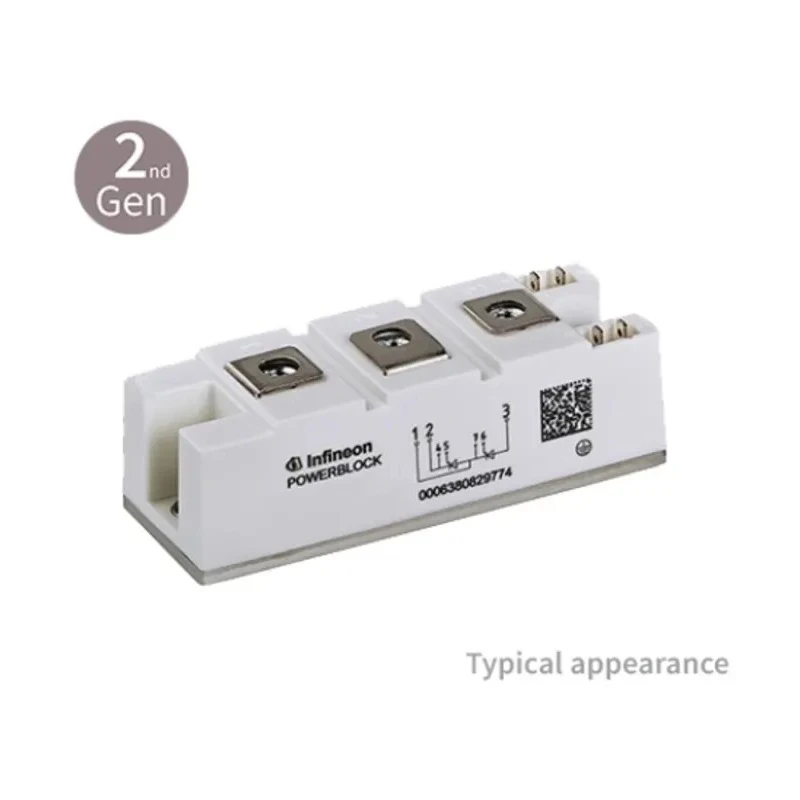

Infineon Thyristor Module 1600 V 5.2 kA 160 A 145 mA 1.82 V 7-Pin TD160N16SOFHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TD160N16SOFHPSA1 |
| Maximum Operating Temperature | 125°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 160A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 5.2kA |
| Maximum Gate Trigger Current Igt | 145mA |
| Maximum Holding Current Ih | 200mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.82V |
Key Features
- Rated average on-state current (Irms) of 160 A ensures high current handling capacity.
- Repetitive peak reverse voltage (VDRM) of 1600 V suitable for high voltage circuits.
- Surge current rating of 5.2 kA for transient current tolerance.
- Maximum gate trigger current of 145 mA enables precise triggering control.
- Compact 7-pin configuration facilitates easy integration in circuits.
- Maximum operating temperature up to 125°C supports demanding environments.
- Peak on-state voltage is 1.82 V contributing to efficient conduction.
- Solder bond technology and electrically insulated solid base plate ensure durability and ease of mounting.
Product Description
Infineon TD160N16SOFHPSA1 Thyristor Module rated for 1600 V blocking voltage, 5.2 kA surge current, and continuous current of 160 A, designed for phase control applications using advanced solder bond technology. This 7-pin module features an electrically insulated base plate and solid construction for reliable high performance and extended operational lifetime in industrial settings.
The device is optimized for less efficient heat sinks and provides predictable high performance due to 100% x-ray monitoring during manufacturing. It is ideal for use in power electronics, industrial automation, and control systems where robust current and voltage handling are required.
The module's compact size combined with a maximum operating temperature of 125°C makes it suitable for demanding electrical environments. It supports fast and secure mounting with a sturdy base plate, ensuring ease of integration into existing systems.
Rated average on-state current Irms of 160 A allows sustained high current operation. Repetitive peak reverse voltage VDRM of 1600 V ensures protection against voltage spikes. Surge current capability of 5.2 kA withstands transient overloads.
Maximum gate trigger current Igt of 145 mA allows precise triggering. Electrically insulated base plate for reliability and safety. 7-pin configuration compatible with industrial standards. Optimized for solder bond technology for durability.
Peak on-state voltage of 1.82 V minimizes conduction losses.
This Thyristor Module is commonly used in industrial automation, power control systems, motor drives, and energy management solutions. It offers a cost-effective solution for high-power electronic switching applications in laboratory, manufacturing, and construction environments.
Explore related high-quality Infineon power semiconductor devices and modules on EnvMart for your industrial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current (Irms) of this module is 160 A, ensuring high current handling capacity.
The maximum operating temperature for this thyristor module is 125°C, making it suitable for demanding environments.
It has a surge current rating of 5.2 kA, allowing it to withstand transient overloads effectively.
The repetitive peak reverse voltage (VDRM) is 1600 V, providing protection against voltage spikes in high voltage circuits.
The maximum gate trigger current (Igt) is 145 mA, which enables precise triggering control.
It features a sturdy, electrically insulated solid base plate that facilitates easy and secure mounting in circuits.
The peak on-state voltage is 1.82 V, which contributes to efficient conduction and minimizes conduction losses.
This thyristor module has a pin count of 7, compatible with industrial standards.
It is commonly used in industrial automation, power control systems, motor drives, and energy management solutions.
The module is optimized for solder bond technology, ensuring durability and reliable performance.
The maximum holding current (Ih) is 200 mA, which is relevant for its operation in circuits.
The country of origin for this thyristor module is India.
