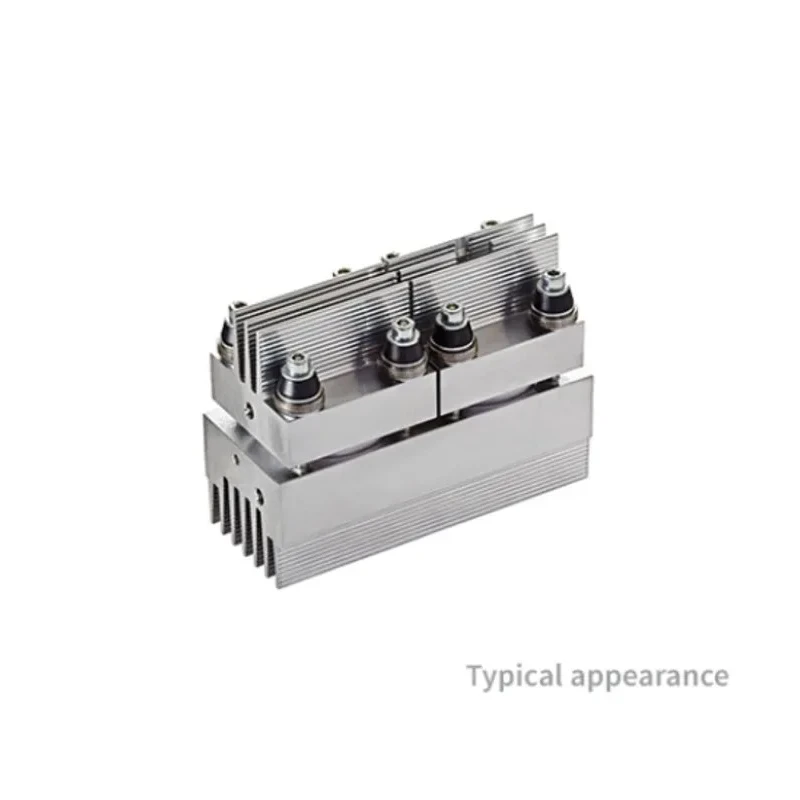

Infineon Thyristor Module 1600 V 21 kA, 2180 A Rated Average On-State Current, 8-Pin STT2200N16P55XPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | STT2200N16P55XPSA1 |
| Series | sTT2200N16P55 |
| Maximum Operating Temperature | 125°C |
| Pin Count | 8 |
| Rated Average On-State Current Irms | 2180A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 21kA |
| Maximum Gate Trigger Current Igt | 200mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.38V |
Key Features
- Operates at a repetitive peak reverse voltage of 1600 V.
- Capable of handling surge current rating of 21 kA for short durations.
- Features a maximum gate trigger current of 200 mA for precise control.
- Equipped with 8 pins for secure electrical connections.
- Maximum operating temperature rating is 125 degrees Celsius ensuring reliability.
- Peak on-state voltage is 1.38 V indicating efficient conduction.
- Maximum holding current of 300 mA supports device stability.
- Maximum gate trigger voltage is 2 V for optimized triggering.
Product Description
Infineon STT2200N16P55XPSA1 is a high-performance Thyristor Module engineered for demanding industrial and electronic applications requiring robust power control. With a repetitive peak reverse voltage of 1600 V and a surge current capability of 21 kA, this module delivers reliable operation under extreme electrical stress conditions.
Designed with an 8-pin configuration, it supports effective integration into power electronics systems. The maximum operating temperature of 125 degrees Celsius ensures stable function in industrial environments. Its low peak on-state voltage of 1.38 V contributes to energy efficiency by minimizing conduction losses.
This module’s maximum gate trigger current of 200 mA and gate trigger voltage of 2 V allow precise and fast triggering control, making it suitable for applications including soft start circuit solutions. The maximum holding current of 300 mA further enhances stable latch-up and device reliability during operation.
The Infineon STT2200N16P55XPSA1 uses pressure contact technology in a 55 mm power body format optimized for high current (2180 A) soft start applications. This module finds extensive use in industrial power supplies, motor control, and power conversion systems where ruggedness and performance are critical.
Its construction and thermal characteristics make it suitable for diverse industrial, manufacturing, and power electronics setups requiring high voltage and high current capabilities. Reliable operation in these conditions extends equipment life and performance efficiency.
Operates with a rated average on-state current of 2180 A. Surge current rating of 21 kA ensures safe transient handling. Designed for a maximum ambient operating temperature of 125°C. Low peak on-state voltage reduces losses during conduction.
Advanced pressure contact technology in module design. 8-pin design offers secure and reliable electrical interfacing. Suitable for use in power electronics, industrial automation, and motor control. Browse EnvMart for more Infineon semiconductor products and high-quality power modules tailored for advanced industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this module is 125°C, ensuring stable function in industrial environments.
It operates at a repetitive peak reverse voltage of 1600 V, suitable for high voltage applications.
The rated average on-state current is 2180 A, making it capable of handling substantial electrical loads.
This module has a surge current rating of 21 kA, allowing it to manage short-duration high current events safely.
It features an 8-pin configuration for secure electrical connections, facilitating integration into power electronics systems.
The peak on-state voltage is 1.38 V, which contributes to energy efficiency by minimizing conduction losses.
The maximum gate trigger current is 200 mA, allowing for precise control during operation.
The maximum holding current is 300 mA, which supports device stability during operation.
It is suitable for industrial power supplies, motor control, and power conversion systems that require robust power control.
The maximum gate trigger voltage is 2 V, optimized for effective triggering of the thyristor.
The country of origin for this module is India.
This model belongs to the sTT2200N16P55 series, designed for high-performance applications.
