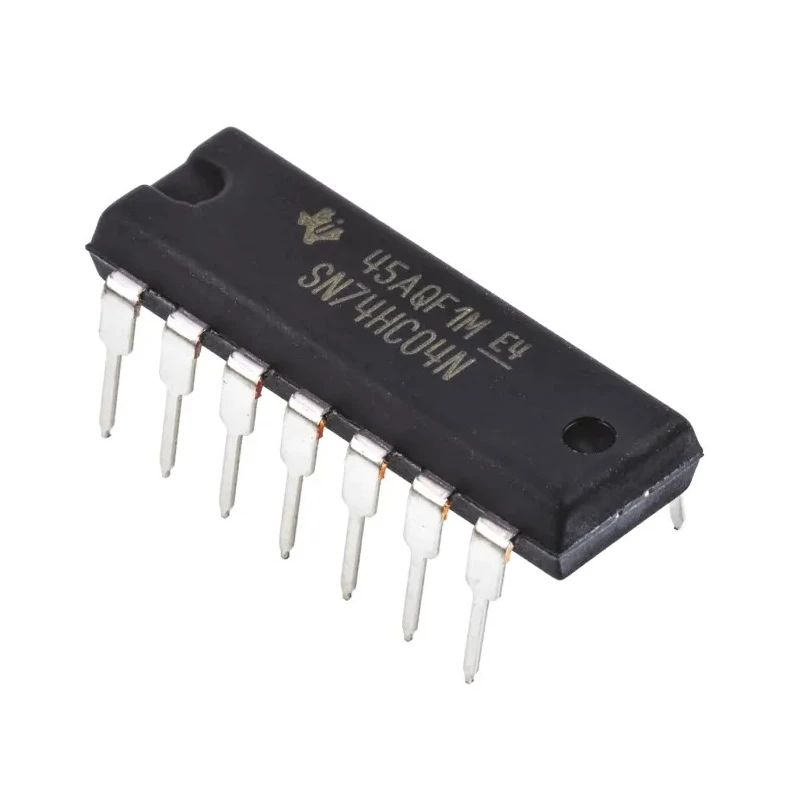

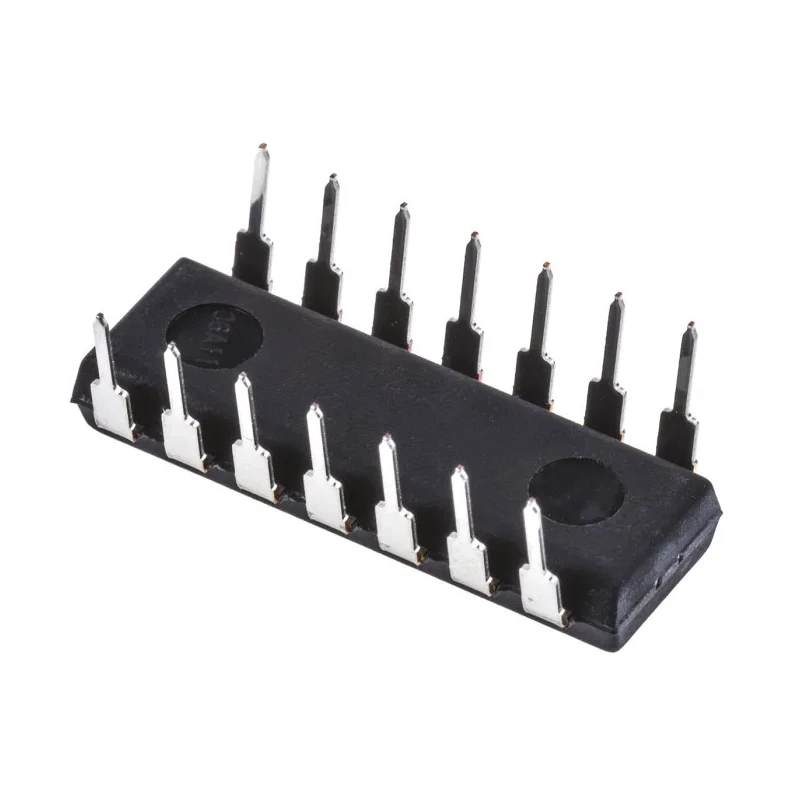

Texas Instruments Inverter 6 Elements CMOS Push Pull 14-Pin PDIP SN74HC04N

The Texas Instruments SN74HC04N is a high-speed CMOS inverter IC offering six independent inverter gates within a 14-pin PDIP package. Designed with silicon gate CMOS technology, this device delivers fast switching speeds similar to LSTTL devices, while benefiting from low power consumption characteristic of CMOS circuits.

Operating voltage ranges from 2 to 6 volts, this IC supports standard CMOS input and output logic levels, making it highly compatible for a variety of digital logic circuits. Its through-hole PDIP package facilitates easy mounting and integration into standard printed circuit boards in industrial, electronic development, and manufacturing applications.

The device features a maximum propagation delay of 120 nanoseconds under specified load conditions, enabling efficient logic inversion performance for timing-critical applications. It operates reliably at temperatures from -40°C to 85°C, suitable for diverse environmental conditions in industrial and commercial electronics.

With push-pull CMOS output stages, it provides robust driving capability of 5.2 mA at logic low and -5.2 mA at logic high levels, ensuring dependable signal integrity. The compact physical dimensions of 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height make it suitable for space-constrained designs.

Manufactured in Mexico, this Texas Instruments component is widely used across electronics, PCB design, embedded systems, and automation industries where reliable inverter logic functions are required.

Provides six independent inverter gates in one package. Constructed using high-speed CMOS technology for low power consumption. Compatible input and output with CMOS logic levels. Operates reliably in temperatures from -40°C to 85°C.

Maximum propagation delay is 120 nanoseconds at specified load. Package type is PDIP with 14 pins, allowing easy through-hole PCB mounting. Maximum supply voltage rating is 6 V ensuring operational safety. Outputs feature push-pull structure providing strong drive capability.

Compact dimensions: length 19.3 mm, width 6.35 mm, height 4.57 mm. Manufactured in Mexico, ensuring adherence to quality standards.

This inverter IC is ideal for use in industrial automation, signal processing, embedded electronics, and digital logic control circuits. Browse more semiconductor inverters and logic ICs from Texas Instruments at EnvMart for optimized electronic system design solutions.
