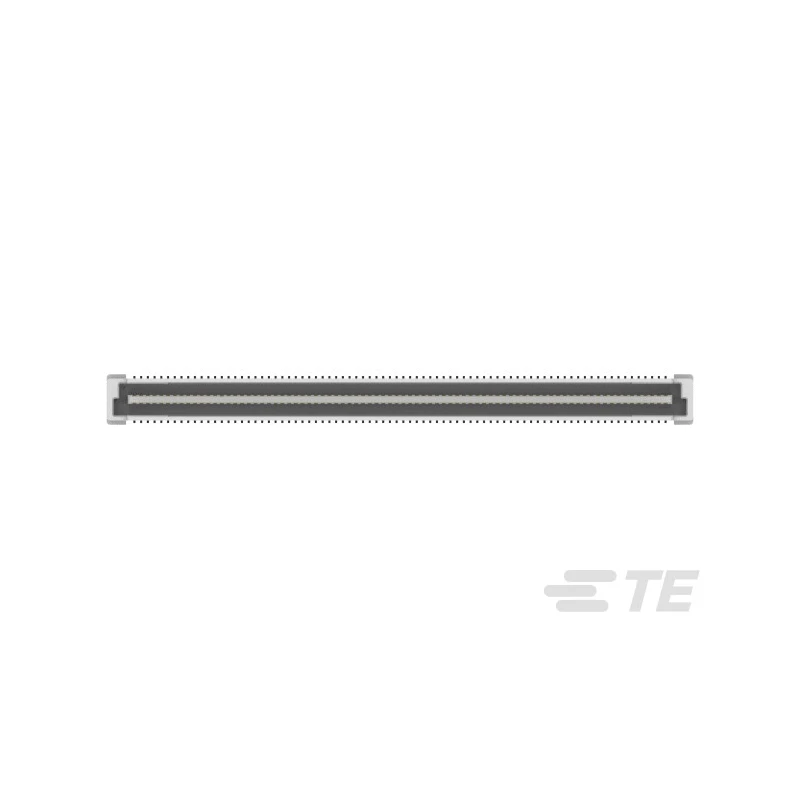

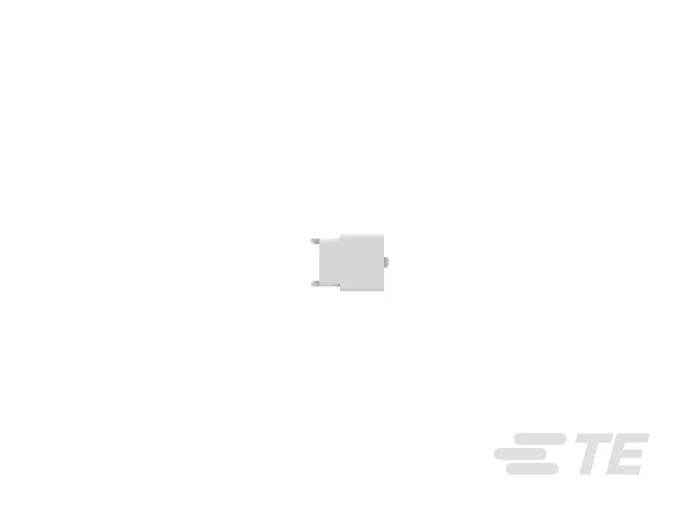

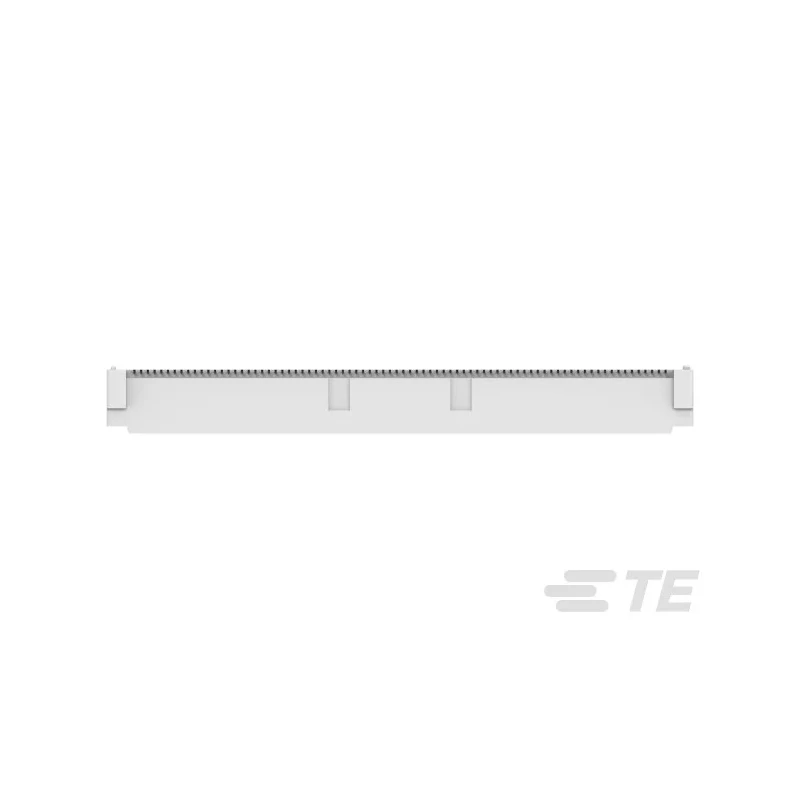

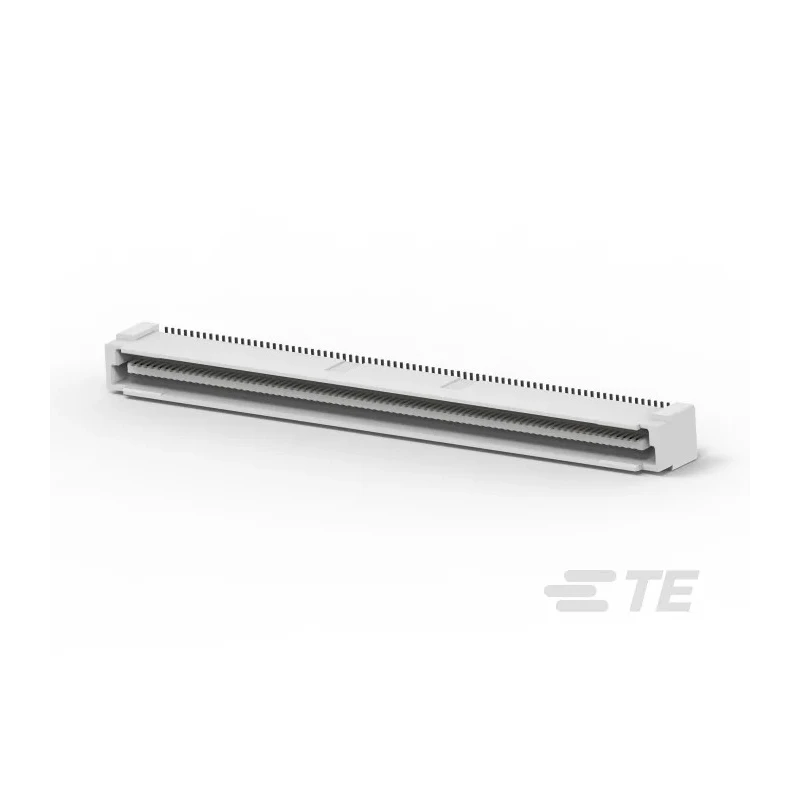

TE Connectivity Free Height Series Vertical PCB Header 160 Contacts 0.8 mm Pitch 2 Row Shrouded 3-5177986-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Vertical |
| Current | 500mA |
| Mount Type | PCB |
| Housing Material | Matt |
| Contact Material | Brass |
| Series | Free Height |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Gold |
| Number of Contacts | 160 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The header has a matt housing material ensuring durability and a premium finish.
- Contacts are made of brass and plated with gold for reliable conductivity.
- Designed for a temperature range from -40°C to 125°C, suitable for harsh conditions.
- The connector is shrouded to protect contacts and ensure secure mating.
- Supports surface mount termination for ease of PCB assembly.
- Complies with UL 94 V-0 standards for flammability rating.
- Offers a vertical orientation suitable for high-density PCB layouts.
Product Description
TE Connectivity 3-5177986-8 Free Height Series Vertical PCB Header features 160 contacts arranged in 2 rows with a 0.8 mm pitch, supporting board-to-board connection applications on printed circuit boards. The connector system uses a shrouded design with male contacts made from brass plated in gold, enhancing conductivity and mechanical reliability.
The housing material has a matt finish and supports surface mount termination, facilitating efficient PCB assembly processes. The header is engineered to operate reliably within a temperature range from -40°C up to 125°C, making it ideal for industrial, electronic manufacturing, and commercial applications.
This PCB header is rated for a voltage of 100V and a maximum current of 500mA, ensuring its suitability for low power electronics. The compliance with UL 94 V-0 standards highlights its material flame retardancy, enhancing safety in demanding environments.
Common use cases include electronic components manufacturing, power distribution assemblies, automotive electronics, communication devices, and embedded systems requiring dependable board-to-board interconnections.
The header's vertical orientation optimizes PCB space and signal integrity. Gold-plated female contacts guarantee minimal contact resistance and corrosion resistance. Shrouded connector design protects against accidental damage and misalignment.
Robust brass contact material ensures long service life and mechanical strength. Surface mount design accommodates automated assembly lines efficiently. Wide operating temperature range supports application in variable environments.
Conforms to international standards, promoting quality and safety compliance.
Set contains a TE Connectivity Free Height Series Vertical PCB Header with 160 contacts across 2 rows. Perfect for electronic, industrial, and commercial PCB connector applications. Explore the full range of PCB connectors at EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 160 contacts arranged in 2 rows with a pitch of 0.8 mm, designed for board-to-board connection applications on printed circuit boards.
The maximum current rating for this PCB header is 500mA, making it suitable for low power electronics applications.
It is rated for a voltage of 100V, ensuring compatibility with various electronic applications.
This unit operates reliably within a temperature range of -40°C to 125°C, suitable for harsh environmental conditions.
It supports surface mount termination, facilitating efficient PCB assembly processes.
The contacts are made of brass and are plated with gold to enhance conductivity and mechanical reliability.
Yes, this model features a shrouded design to protect the contacts and ensure secure mating during connections.
It complies with UL 94 V-0 standards for flammability rating, enhancing its safety in demanding environments.
The header is designed for vertical orientation, optimizing PCB space and signal integrity in high-density layouts.
The housing material has a matt finish, which contributes to its durability and aesthetic appeal.
Common applications include electronic components manufacturing, power distribution assemblies, automotive electronics, and communication devices requiring board-to-board interconnections.
