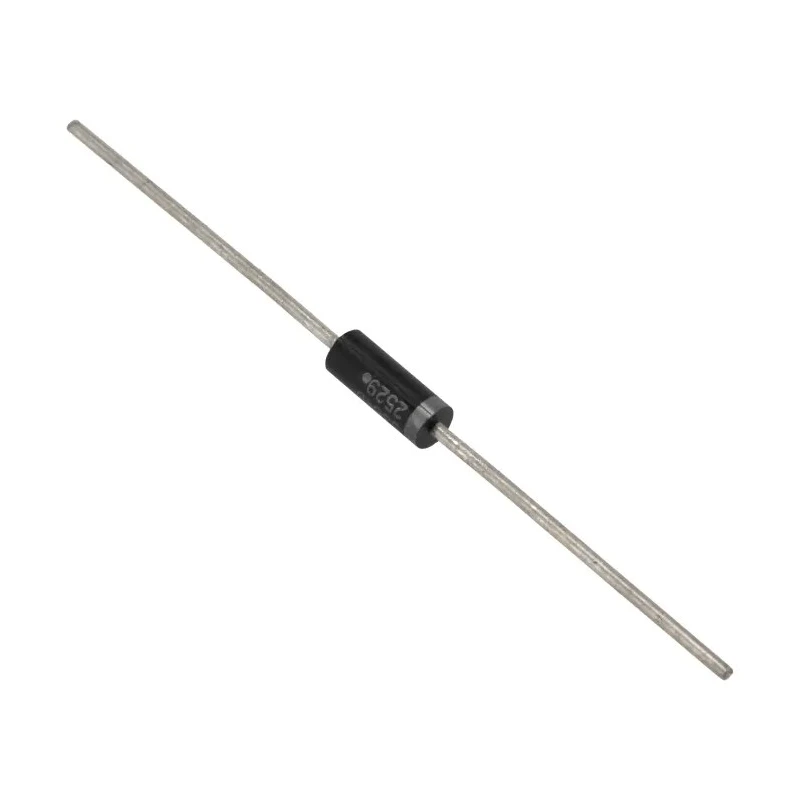

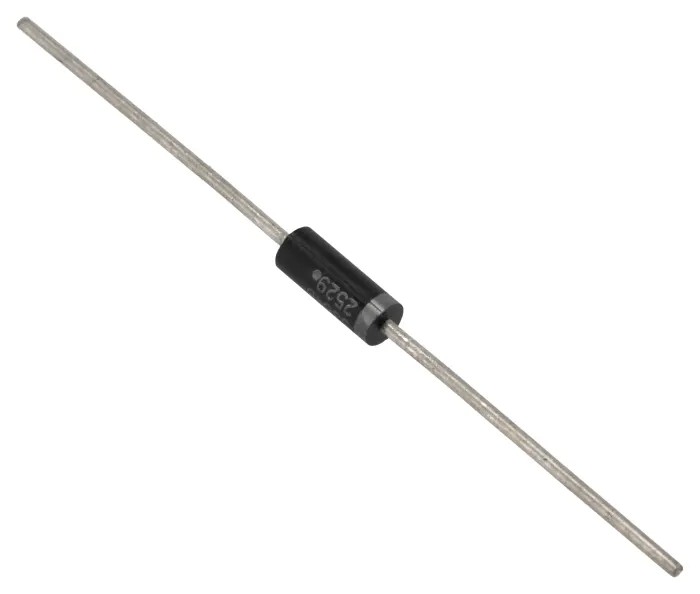

onsemi Zener Diode 33 V 5 W Through Hole 2-Pin DO-15 1N5364BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5364BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 40mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 33V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |
Key Features
- Single diode configuration suitable for through hole mounting.
- Nominal Zener voltage of 33 volts with ±5% tolerance.
- Maximum power dissipation of 5 watts for reliable performance.
- Encapsulated in DO-15 package with 2-pin design.
- Operates within a temperature range from -65°C to 200°C.
- Test current rated at 40 mA for accurate voltage regulation.
- Maximum Zener impedance is 10 ohms ensuring minimal voltage variation.
- Maximum reverse leakage current of 500 nA supporting efficient operation.
Product Description
The onsemi 1N5364BG Zener Diode is a high-performance voltage regulator diode designed for through hole mounting and encapsulated in a DO-15 package. This single-element diode offers a nominal Zener voltage of 33 V with a tolerance of ±5%, making it ideal for precise voltage regulation in electronic circuits. With a maximum power dissipation of 5 W, the diode ensures stable operation under demanding conditions.
Featuring a 2-pin configuration, the diode supports efficient insertion into various circuit boards for industrial, consumer electronics, and laboratory applications. It operates reliably over a wide temperature range from -65°C to 200°C, suitable for diverse environments.
The maximum Zener impedance of 10 ohms and a test current of 40 mA contribute to maintaining a consistent voltage output, while the low maximum reverse leakage current of 500 nA minimizes undesired current flow. Its compact physical dimensions, measuring 8.89 mm in length and 3.68 mm in height, enable use in space-constrained designs.
This product is part of the 1N53 series from onsemi, providing improved operating characteristics for voltage regulation. Typical applications include power supplies, voltage reference circuits, and over-voltage protection in electronic devices.
Single diode configuration suitable for through hole mounting. Nominal Zener voltage of 33 volts with ±5% tolerance. Maximum power dissipation of 5 watts for reliable performance. Encapsulated in DO-15 package with 2-pin design.
Operates within a temperature range from -65°C to 200°C. Test current rated at 40 mA for accurate voltage regulation. Maximum Zener impedance is 10 ohms ensuring minimal voltage variation. Maximum reverse leakage current of 500 nA supporting efficient operation.
Compact dimensions: length 8.89 mm and height 3.68 mm. Ideal for industrial, laboratory, and consumer electronic applications. Explore our wide range of semiconductor components for your industrial and electronic design needs at EnvMart.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 33 volts with a tolerance of ±5%.
The maximum power dissipation for this model is 5 watts, ensuring reliable performance under various conditions.
It operates within a temperature range from -65°C to 200°C, making it suitable for diverse environments.
The maximum reverse leakage current is 500 nA, which supports efficient operation.
The maximum Zener impedance is 10 ohms, ensuring minimal voltage variation during operation.
The test current is rated at 40 mA, which is used for accurate voltage regulation.
This model supports through hole mounting, making it suitable for various circuit board applications.
The diode measures 8.89 mm in length and 3.68 mm in height, allowing for use in space-constrained designs.
It has a 2-pin configuration, facilitating easy integration into circuits.
This diode is part of the 1N53 series, which provides improved operating characteristics for voltage regulation.
The configuration is single, designed for efficient voltage regulation in electronic circuits.
The country of origin for this diode is India.
