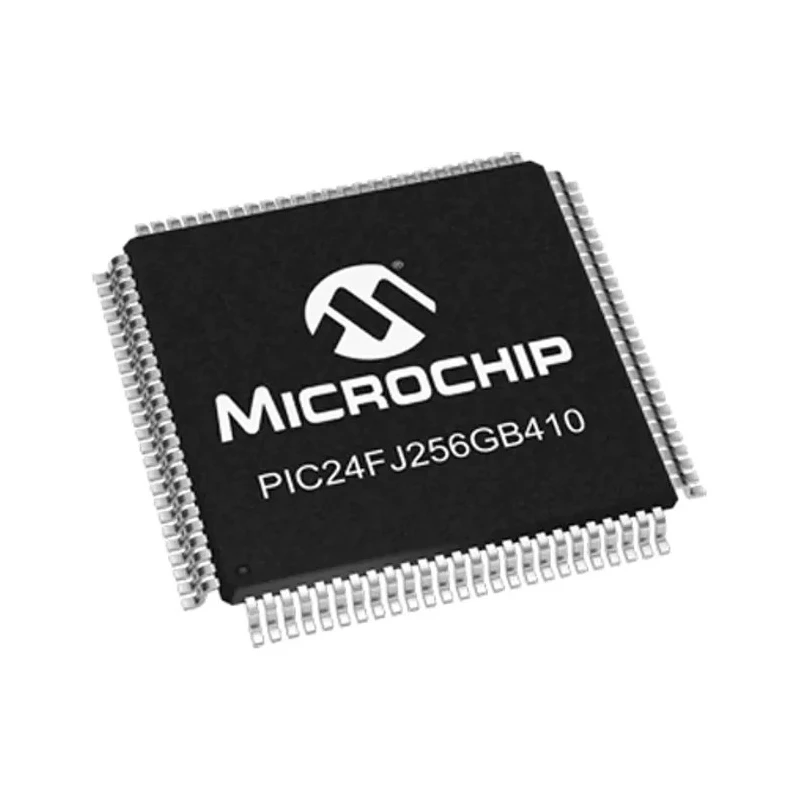

Microchip 16 bit PIC24F Microcontroller 32 MHz, 256kB FLASH, 100-Pin TQFP PIC24FJ256GB410-I/PT

Microchip PIC24FJ256GB410-I/PT is a high-performance 16-bit microcontroller featuring the PIC24F CPU core operating at a maximum clock frequency of 32 MHz and equipped with 256kB flash program memory. It is packaged in a 100-pin TQFP surface-mount package with compact dimensions of 10 mm x 10 mm x 1.05 mm.

This microcontroller family is designed for applications requiring secure data transfer and storage, offering peripheral rich features including an onboard cryptographic engine supporting AES, DES/3DES encryption and decryption operations without CPU intervention. It supports dual partition flash with live update capability enabling simultaneous execution and programming of separate software partitions for improved reliability.

Its extreme low power (XLP) features provide various power management options, alternate clock modes, and ultra-low power consumption in deep sleep modes, making it suitable for battery-powered and energy-sensitive applications.

Peripheral features include up to 24 analog-to-digital converters (ADC) channels with 10/12-bit resolution, one 10-bit digital-to-analog converter (DAC), three enhanced analog comparators, and multiple timers and counters suitable for timer-based applications. The device supports USB v2 interfaces for connectivity and provides an LCD display controller and capacitive touch sensing capabilities via the Charge Time Measurement Unit.

Operating temperature ranges from -40°C to 85°C, and operating voltages span from 2.2V to 3.6V, ensuring robustness in industrial, automotive, and consumer electronics applications. Its modified Harvard instruction architecture includes hardware fractional and integer multipliers and dividers delivering efficient mathematical operations.

Features a PIC24F CPU with a 16-bit data bus width for efficient processing. Includes 16kB RAM and 24 channels of 10/12-bit ADCs for analog-to-digital conversion. Operates with a maximum supply voltage of 3.6V and supports minimum 2.2V supply voltage.

Equipped with a 10-bit DAC and three enhanced analog comparators for signal processing. Designed for extended temperature ranges from -40°C to 85°C for robust industrial use. Comes with five 16-bit timers/counters and supports USB v2 interface for communication.

Implements Modified Harvard instruction set architecture delivering up to 16 MIPS at 32 MHz. This microcontroller is widely applicable in industrial controls, secure communications, battery-powered devices, embedded computing, and other demanding electronic systems.

EnvMart offers a comprehensive range of semiconductor Microcontrollers like the Microchip PIC24FJ256GB410-I/PT, suitable for modern technological applications.
