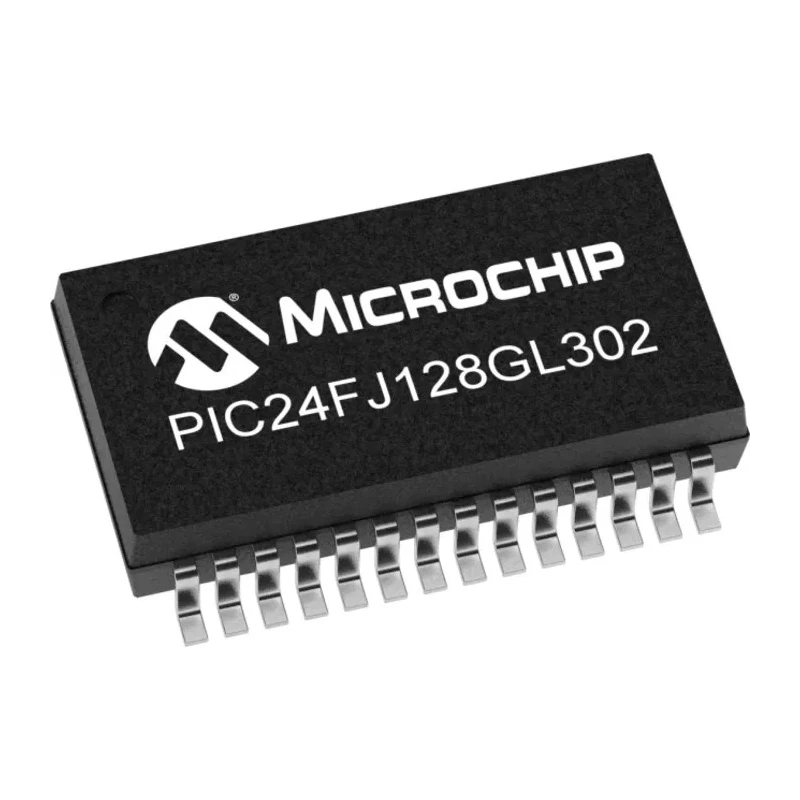

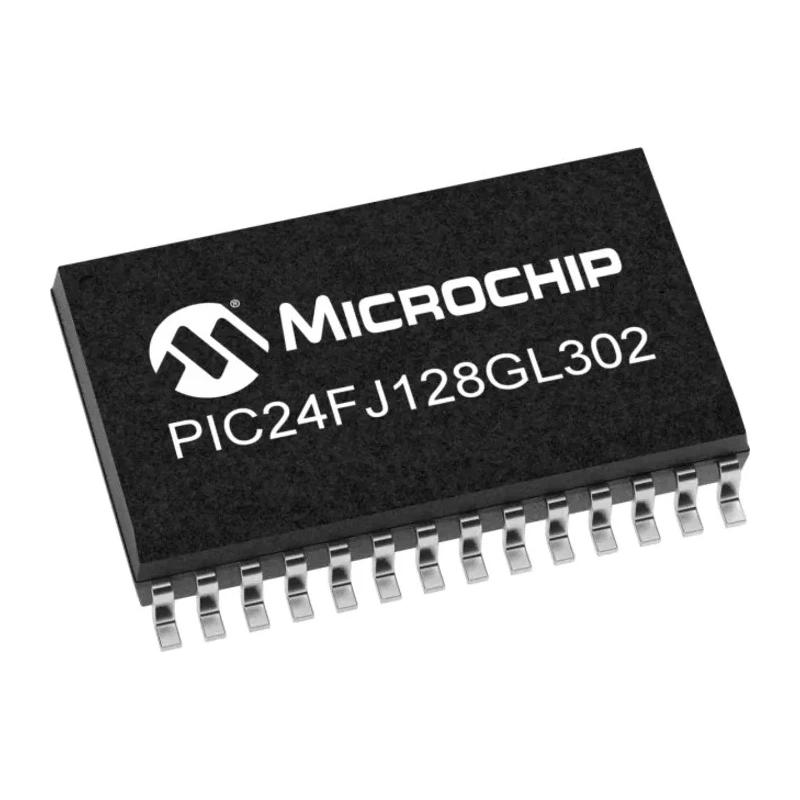

Microchip 16 bit PIC PIC24FJ GL Microcontroller 32 MHz 128kB FLASH 28-Pin QFN PIC24FJ128GL302-I/MV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 550μm |
| Length | 4mm |
| Model | PIC24FJ128GL302-I/MV |
| Width | 4mm |
| Mount Type | Surface |
| Series | PIC24FJ GL |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | Harvard |
| ADCs | 1 x 12 Bit |
| Program Memory Type | FLASH |
| Lead Count | 121 |
Key Features
- Operates with a maximum supply voltage of 3.6V and a minimum of 2V.
- Features 8kB RAM, 5 timers, and 3 analogue comparators for versatile control applications.
- Built on Harvard instruction set architecture for efficient code execution.
- Designed for automotive applications meeting AEC-Q100 standard and operating temperature range from -40°C to 125°C.
- Compact dimensions of 4mm length, 4mm width, and 550μm height ensure minimal board space usage.
- Includes 1 x 12-bit ADC channel supporting accurate analog signal input.
- Flash memory programmed via the inbuilt FLASH technology for reliable performance.
- Surface mount QFN package optimizes thermal management and assembly.
Product Description
Microchip PIC24FJ128GL302-I/MV is a 16-bit PIC microcontroller from the PIC24FJ GL series, engineered for low power consumption and high integration. This device operates at a maximum clock frequency of 32 MHz, featuring 128kB of FLASH program memory and 8kB of RAM, making it suitable for complex embedded applications.
The microcontroller is housed in a compact 28-Pin QFN package measuring 4mm by 4mm with a height of 550μm, easing integration in space-constrained designs. It supports surface mount technology ensuring robust electrical connections and improved PCB layout efficiency.
Designed with automotive standards (AEC-Q100), this microcontroller operates reliably within a wide temperature range from -40°C to 125°C. It includes three analog comparators and a single 12-bit ADC for precise signal processing. The device employs the Harvard instruction set architecture to optimize execution efficiency and speed.
Its power supply range from 2V minimum to 3.6V maximum allows flexible power management, enhancing battery life in portable and automotive applications. With five hardware timers and a lead count of 121, the PIC24FJ128GL302-I/MV offers low power sleep modes while retaining RAM content for extended battery use.
This microcontroller is ideal for industrial, automotive, and portable embedded control systems requiring reliable, low-power, high-performance processing. Applications span from automotive instrumentation to portable medical devices and consumer electronics.
Operates at 32 MHz clock frequency. 128kB FLASH program memory. 8kB RAM supporting advanced computations. Compliant with automotive AEC-Q100 standards. Wide operating temperature range from -40°C to 125°C. Compact 28-Pin QFN package of 4mm x 4mm x 0.55mm.
3 analog comparators and 1 channel 12-bit ADC included. 5 timers for versatile timing functions. Explore more Microcontrollers and embedded solutions in our Electronics & Electricals category at EnvMart, perfect for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC24FJ128GL302-I/MV operates at a maximum clock frequency of 32 MHz.
It features 128kB of FLASH program memory, allowing for complex embedded applications.
This microcontroller operates reliably within a wide temperature range from -40°C to 125°C.
It includes 8kB of RAM, which supports advanced computations for embedded applications.
The device is housed in a compact 28-Pin QFN package, measuring 4mm by 4mm with a height of 550μm.
It includes three analog comparators for versatile signal processing applications.
The microcontroller operates with a minimum supply voltage of 2V and a maximum of 3.6V.
This model has a lead count of 121, facilitating its integration into various PCB layouts.
It is equipped with five hardware timers for versatile timing functions.
The device is designed to meet the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
It employs the Harvard instruction set architecture, optimizing execution efficiency and speed.
It includes one 12-bit ADC channel, supporting accurate analog signal input for various applications.
