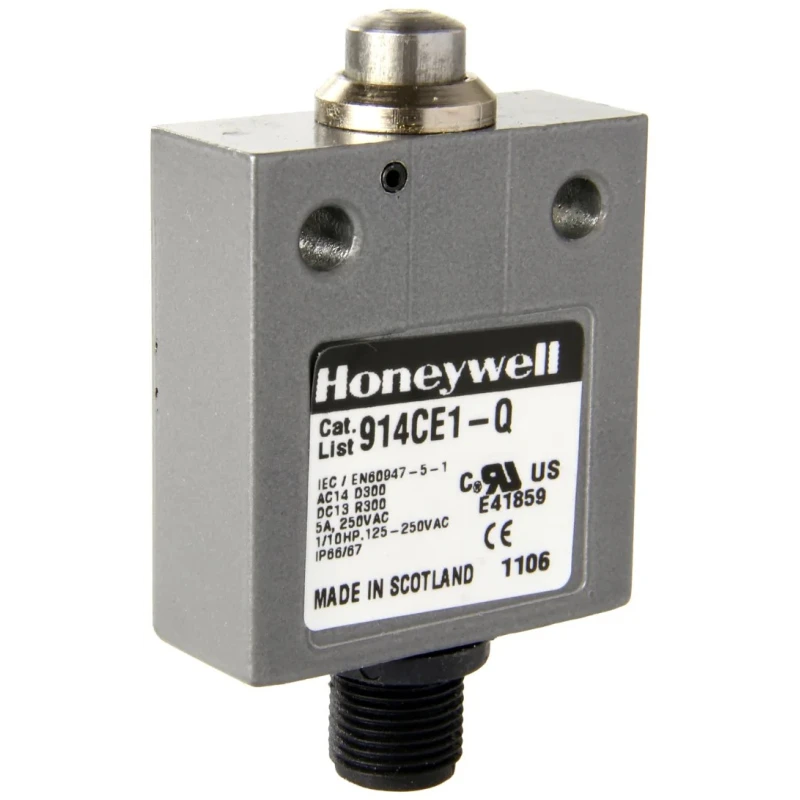

Honeywell Technologies Plunger Limit Switch SPDT 250V AC 5A Die Cast Zinc Housing IP66 IP67 IP68 914CE1-Q

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Plunger Limit Switch SPDT 250V AC 5A Die Cast Zinc Housing IP66 IP67 IP68 914CE1-Q

Name: Honeywell Technologies Plunger Limit Switch SPDT 250V AC 5A Die Cast Zinc Housing IP66 IP67 IP68 914CE1-Q
Brand: Honeywell
SKU: 287532
Price: 254.02 USD
Availability: InStock



Category Limit Switch Brand Honeywell Condition New

Specifications

Country of Origin	United Kingdom
Brand	Honeywell
Length	40mm
Model	914CE1-Q
Depth	44mm
IP Rating	IP66, IP67, IP68
Width	16mm
Housing Material	Die Cast Zinc
Series	914CE
Maximum Operating Temperature	105°C
Mounting Orientation	Vertical
Contact Configuration	SPDT
Actuator Type	Plunger
Contact Type	Snap Action
Minimum Operating Temperature	0°C
Switching Current	5A
Terminal type	M12
Standards/Approvals	CSA, cURus, EN, IEC, RoHS, UL, CE
Operating Force	12.2N
Mechanical Life	10000000Operations
Switching DC Voltage	30V
Switching AC Voltage	250V ac
Type 2	Allows for indoor use and provides a degree of protection against access to hazardous parts. The enclosures provide a degree of protection against foreign objects (such as falling dirt) and the ingress of water (light dripping or splashing)
Type 1	Allows for indoor use and offers a dregree of protection against access to harzardous parts by personnel. Enclosures that meet NEMA 1 also protect the enclosure against foreign solid obkects(such as indoor dirt)

Key Features

Features SPDT snap-action contacts for reliable single-pole switching functionality.
Equipped with die cast zinc housing for robust mechanical protection.
Designed for operating voltages up to 250V AC and switching current up to 5A.
Suitable for harsh environments with sealing to IP66, IP67, and IP68 standards.
Mechanical life rated for 10 million operations ensuring extended durability.
Operating temperature range from 0°C to 105°C supports high-temperature applications.
Terminates with an M12 connector to ensure secure and quick electrical connections.
Configured for vertical mounting orientation to guarantee consistent switching performance.

Product Description

Honeywell 914CE1-Q is a high-quality plunger limit switch designed for industrial automation and control applications. This switch features a snap-action SPDT contact configuration and offers exceptional protection against dust and water with its IP66, IP67, and IP68 ratings. Its die cast zinc housing delivers excellent mechanical durability and impact resistance, making it well suited for demanding environments.

This limit switch operates at voltages up to 250V AC with a switching current of 5 amps, making it suitable for moderate power circuit control. It also supports DC switching of up to 30V. The switch is engineered to withstand temperatures up to 105°C and has an operating force of 12.2 N, ensuring responsive actuation.

The compact dimensions (16mm width, 40mm length, 44mm depth) and M12 terminal type facilitate ease of integration and secure connections. It is recommended to mount the switch vertically to maintain optimal actuator alignment and reliable operation.

Applications typically include conveyor end-of-travel detection in manufacturing lines, gate and valve position monitoring in process plants, safety interlock sensing in industrial machinery, and position feedback in material handling equipment. The robust ingress protection ratings make this limit switch suitable for outdoor or washdown environments requiring high resistance to dust and water ingress.

SPDT plunger actuator with snap-action contact mechanism. Sealed with IP66, IP67, and IP68 protection standards. Die cast zinc housing for durability and mechanical protection. Electrical ratings: 250V AC, 5A maximum switching current.

Mechanical life of 10 million cycles for long-term reliability. Operating force of 12.2 Newtons for consistent actuation. M12 terminal type for secure electrical connection. Vertical mounting orientation recommended for best performance.

This Honeywell 914CE1-Q limit switch complies with CSA, cURus, EN, IEC, RoHS, UL, and CE standards, ensuring quality and safety in industrial automation applications. Originating from the United Kingdom, it presents a dependable solution for control and sensing in various industrial sectors.

Explore more in the Electronics & Electricals category on EnvMart for related Limit Switches and automation components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates at a maximum voltage of 250V AC.

It has a maximum switching current capacity of 5A.

The switch is rated IP66, IP67, and IP68, providing excellent protection against dust and water ingress.

The mechanical life is rated for 10 million operations, ensuring long-term reliability.

It operates within a temperature range of 0°C to 105°C.

This unit features a plunger actuator with a snap-action contact mechanism.

It is recommended to mount the switch vertically to ensure optimal actuator alignment and performance.

The dimensions are 40mm in length, 16mm in width, and 44mm in depth.

It terminates with an M12 connector for secure electrical connections.

It complies with CSA, cURus, EN, IEC, RoHS, UL, and CE standards.

It is suitable for applications such as conveyor end-of-travel detection, gate and valve position monitoring, and safety interlock sensing in industrial machinery.

The operating force is 12.2 Newtons, ensuring responsive actuation.
