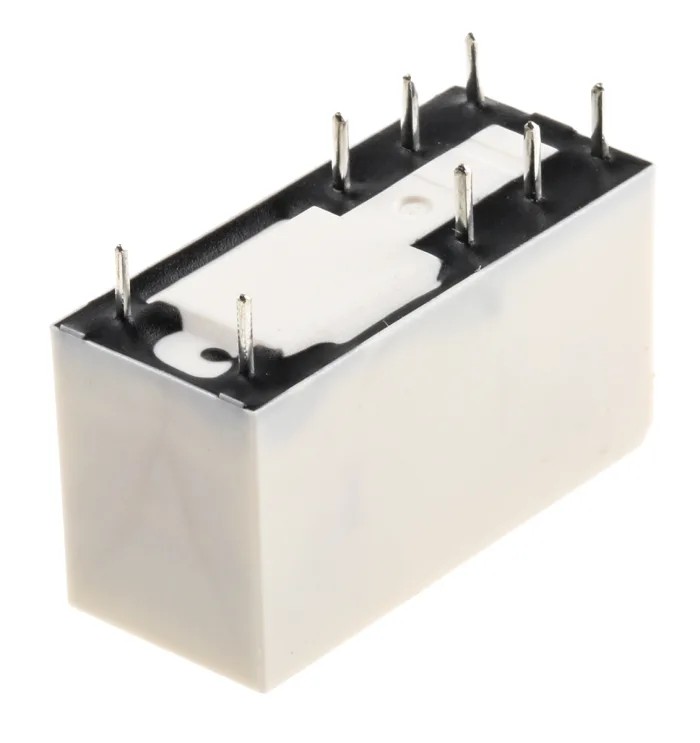

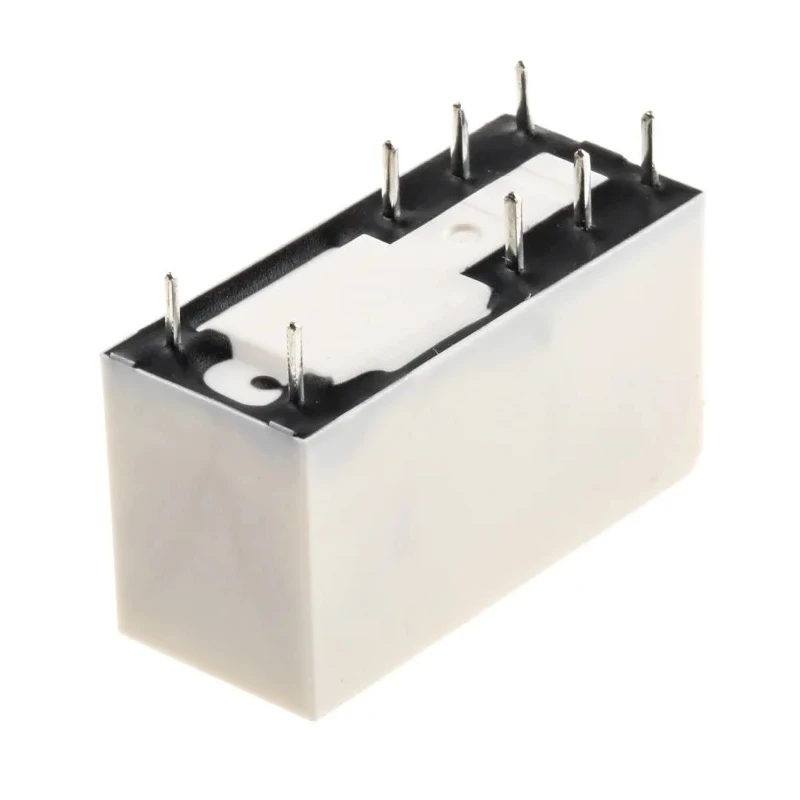

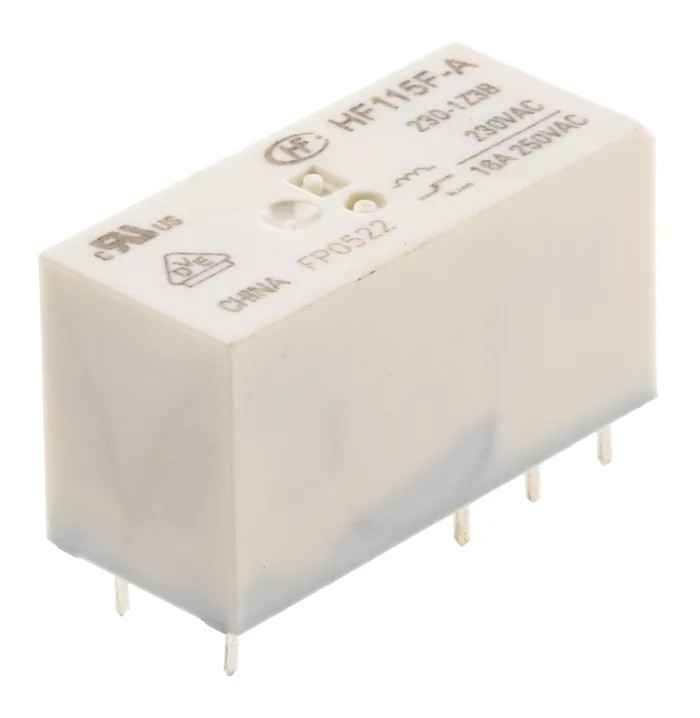

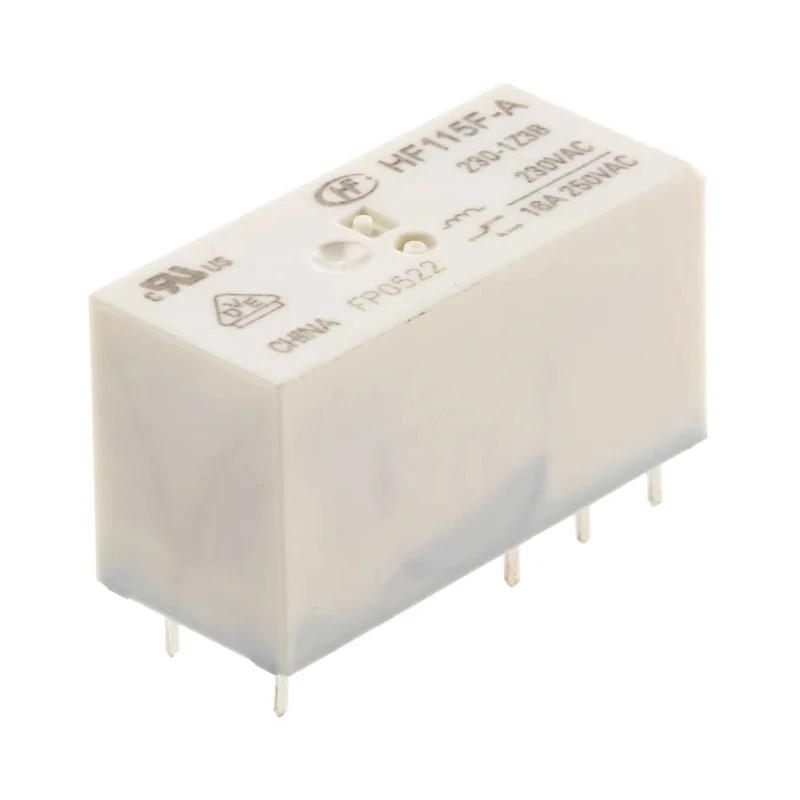

RS PRO PCB Power Relay 230V ac Coil 16A Switching Current SPDT 800-4473

RS PRO 800-4473 PCB Power Relay is a robust and reliable component designed for industrial and automation applications requiring efficient power switching. This relay operates with a 230V AC coil voltage and supports a switching current of up to 16 amperes, making it suitable for various control circuits on printed circuit boards.

Featuring a single pole double throw (SPDT) contact configuration, it provides flexible switching with silver alloy contacts that ensure low resistance (100mΩ) and high conductivity. The relay's compact and low-profile design, with dimensions of 29mm length, 15.7mm height, and 12.7mm width, allows easy integration on densely packed PCBs.

Its coil has a resistance of 32.5kΩ and consumes 750mW power, optimized for energy efficiency. Operating temperature ranges from -40°C to 70°C, enabling reliable performance across harsh industrial environments. The device supports switching AC voltages up to 440V and DC switching voltages up to 300V, making it versatile for various electrical systems.

This relay is engineered for high inrush current situations, rated TV-5 for 80A at 125Vac, allowing it to handle inductive loads such as motors and transformers effectively. It features a strong dielectric strength of 5kV between coil and contacts and can withstand surge voltages up to 10kV, protecting the circuit from transient voltages.

It meets key international standards including IEC 60335-1 and holds UL, VDE, and CQC certifications, assuring safety and quality compliance. Its wash-tight design and 10mm creepage distance further enhance reliability and resistance to environmental factors.

This power relay operates with a coil voltage of 230V AC suitable for PCB mounting. It features a single pole double throw (SPDT) contact configuration for versatile switching applications. Supports a maximum switching current of 16 amperes and switching AC voltage up to 440V.

Designed with a low profile, compact size of 29mm length, 15.7mm height, and 12.7mm width. Contact material is silver alloy, ensuring reliable electrical conduction and low contact resistance of 100mΩ. The relay coil consumes 750mW power with a coil resistance of 32.5kΩ.

It withstands operating temperatures from -40°C to 70°C, providing durability in various industrial environments. Complies with international standards including IEC 60335-1, UL, VDE, CQC approvals. High inrush current capability with TV-5 80A rating at 125Vac, supporting inductive loads.

Features 5kV dielectric strength between coil and contacts and surge voltage up to 10kV.

This RS PRO PCB Power Relay is widely used in industrial automation, HVAC systems, manufacturing equipment, and electrical panels where reliable power switching and high durability are critical. It provides excellent protection and switching performance for various control and power circuits, making it a trusted component in electrical apparatus.
