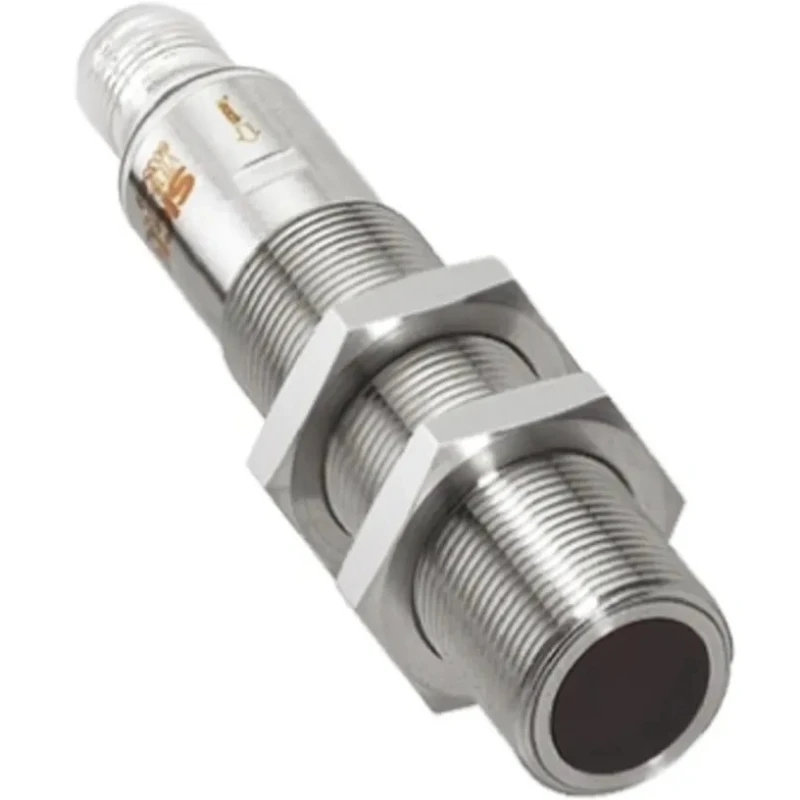

SICK Diffuse Photoelectric Sensor Barrel Style 450 mm Detection Range NPN Output Threaded Mount Stainless VTE18-4N4240V
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | SICK |
| Response time | 1ms |
| Light Source | Infrared |
| Detection range | 450 mm |
| Model | VTE18-4N4240V |
| IP Rating | IP69K, IP68, IP67 |
| Mount Type | Threaded |
| Housing Material | Stainless Steel |
| Output type | NPN |
| Series | V18V |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Diffuse |
| Terminal type | 4-Pin M12 |
| Maximum dc Voltage | 30V dc |
| Sensor Style | Barrel |
| Housing Length | 83 mm |
| Adjustment of operating distance | Manual via Touch-Teach in |
| Light spot (distance) | 60 mm (400 mm), 100 mm (800 mm) |
Key Features
- The sensor has a stainless steel cylindrical M18 barrel housing for durability.
- It operates with a maximum DC voltage of 30 V and maximum current of 100 mA.
- The infrared light source supports diffuse detection up to 450 mm.
- IP69K, IP68, and IP67 ingress protection ratings ensure resistance to harsh environments.
- Threaded mount type with manual operating distance adjustment via Touch-Teach in.
- Operating temperature ranges from -25°C to 80°C for versatile industrial applications.
- Response time is rapid at 1 ms for fast switching.
- The product is certified with no hazardous area approvals, suitable for general industrial use.
Product Description
The SICK VTE18-4N4240V is a diffuse Photoelectric Sensor designed for reliable detection in industrial automation settings. Its rugged stainless steel M18 barrel housing provides protection with IP69K, IP68, and IP67 ratings, ensuring operation even in harsh environments involving dust, water, and high-pressure cleaning.
This sensor uses an infrared light source for detecting objects with a maximum sensing distance of 450 mm. It features an NPN output type with a 4-pin M12 terminal connection and can handle a maximum DC voltage of 30 V and a current of 100 mA. The sensor's operating temperature range is from -25°C to 80°C, allowing for use in a wide range of industrial environments.
Mounting is facilitated by the threaded design, and users have the ability to manually adjust the operating distance using the Touch-Teach in method. The housing length measures 83 mm, with light spot distances of 60 mm at 400 mm range and 100 mm at 800 mm range. The sensor delivers a fast 1 ms response time, supporting rapid and precise detection tasks.
Typical applications include manufacturing automation, conveyor monitoring, packaging machinery, and quality control systems where reliable object detection at moderate range is required. It is suitable for industrial, laboratory, and automation environments where durability and precision are critical.
The sensor has a stainless steel cylindrical M18 barrel housing for durability. It operates with a maximum DC voltage of 30 V and maximum current of 100 mA. The infrared light source supports diffuse detection up to 450 mm.
IP69K, IP68, and IP67 ingress protection ratings ensure resistance to harsh environments. Threaded mount type with manual operating distance adjustment via Touch-Teach in. Operating temperature ranges from -25°C to 80°C for versatile industrial applications.
Response time is rapid at 1 ms for fast switching. The product is certified with no hazardous area approvals, suitable for general industrial use.
Choose the SICK VTE18-4N4240V for high-quality, durable, and precise photoelectric sensing to enhance process efficiency and safety. Browse more sensors and automation products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the SICK VTE18-4N4240V is 450 mm.
This model features an NPN output type.
The response time of this sensor is 1 ms, allowing for fast switching.
It has IP69K, IP68, and IP67 ingress protection ratings, ensuring resistance to dust and water.
The operating temperature range for this sensor is from -25°C to 80°C.
The operating distance can be manually adjusted via the Touch-Teach in method.
The housing of this sensor is made from stainless steel, providing durability.
The maximum current that this sensor can handle is 100 mA.
This model uses a 4-pin M12 terminal connection.
The housing length of this sensor is 83 mm.
This sensor is manufactured in Italy.
Typical applications include manufacturing automation, conveyor monitoring, packaging machinery, and quality control systems.
