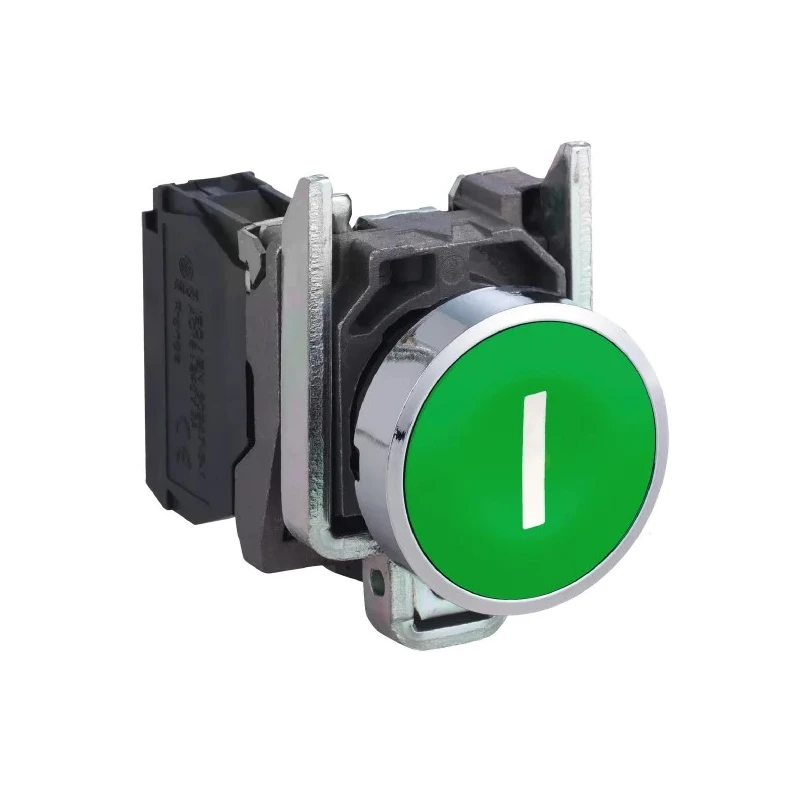

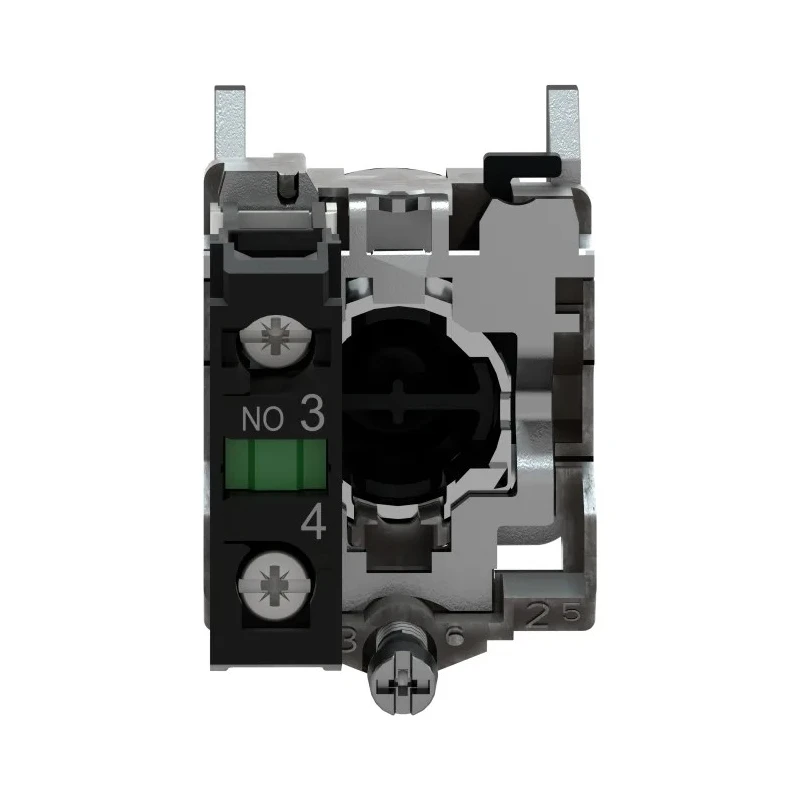

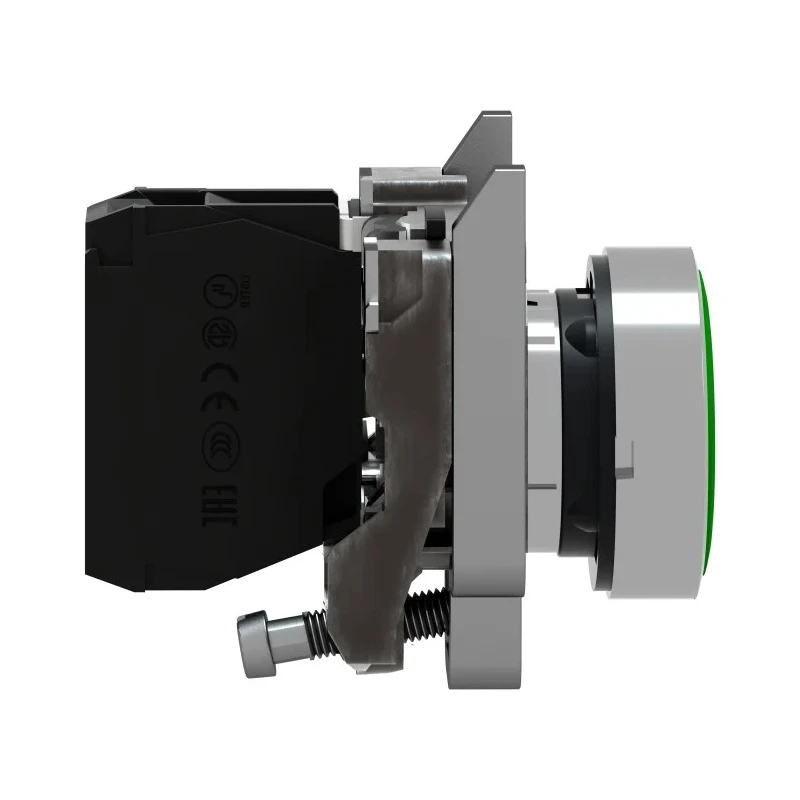

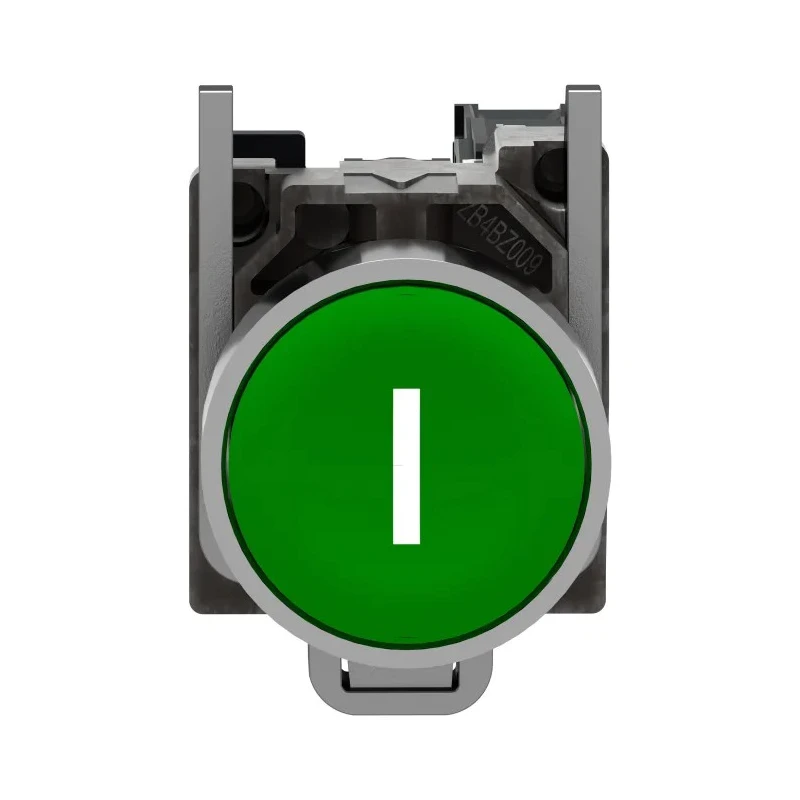

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPST, Green XB4BA3311
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 52mm |
| Model | XB4BA3311 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Spring Return |
| Actuator Colour | Green |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 12A |
| Better World Claim | Repairable by the End User |
| Legend | I |
| Schneider Electric Push Button, Panel Mount, 22mm CutoutBrand | Schneider Electric |
Key Features
- Features spring return switch operation for reliable momentary control.
- Constructed with chromium-plated metal body and silver alloy contacts for durability and high conductivity.
- SPST configuration provides simple on/off switch functionality.
- Rated IP66, IP67, IP69, and IP69K for strong water and dust resistance in harsh environments.
- Panel mount type with screw terminal for easy and secure installation.
- Operates within a wide temperature range from -25°C to 70°C for versatile industrial use.
- Compact dimensions of 47mm height, 52mm length, and 30mm width suit tight panel spaces.
- Supports contact voltages up to 600V AC/DC and contact current up to 12A.
Product Description
Schneider Electric XB4BA3311 Harmony XB4 Series Push Button Switch is a high-quality industrial-grade component engineered for panel mounting applications that require robust, reliable control of electrical circuits. It features a spring return mechanism and a round green push button actuator with a 22 mm panel cutout size, making it suitable for precise user interface controls in demanding environments.
The push button switch housing is made of chromium-plated metal, ensuring mechanical strength and resistance to wear. The internal contacts utilize silver alloy to guarantee superior conductivity and reliable performance over extended use cycles.
Its SPST (Single Pole Single Throw) contact configuration delivers straightforward on/off switching functionality. The switch operates safely with contact voltages up to 600 volts AC or DC, and carries a contact current rating of 12 amperes, accommodating heavy load industrial control signals.
Designed for harsh environments, the switch offers excellent ingress protection ratings: IP66, IP67, IP69, and IP69K. This robust sealing protects the switch against dust, water jets, temporary immersion, and even high-pressure washdowns, enabling its use in outdoor and industrial equipment exposed to extreme conditions.
The operating temperature range from minus 25 degrees Celsius up to 70 degrees Celsius ensures reliable performance in both cold storage and hot manufacturing settings. Its panel mount type and screw terminal connection contribute to straightforward installation and maintenance, making it an ideal choice for electrical panels in automation control, machinery, manufacturing plants, and outdoor equipment.
Features spring return switch operation for momentary control. Durable chromium-plated metal body with silver alloy contacts. SPST configuration for simple on/off control. High IP66, IP67, IP69, and IP69K ingress protection rating.
Screw terminal panel mount type for ease of installation. Wide operational temperature range from -25°C to 70°C. Supports contact ratings of 600V AC/DC and 12A current. Green LED actuator for visible status indication. Compact dimensions suitable for standard 22 mm panel cutout.
Ideal for industrial, automation, manufacturing, and outdoor electrical applications.
This Schneider Electric Push Button Switch is part of the Harmony XB4 series known for durability and reliable function in challenging industrial environments. Explore our range of industrial switches and control components at EnvMart for your automated system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, providing straightforward on/off switching functionality.
It has an ingress protection rating of IP66, IP67, IP69, and IP69K, ensuring strong resistance against dust and water in harsh environments.
The dimensions of the switch are 47 mm in height, 52 mm in length, and 30 mm in width, making it suitable for standard 22 mm panel cutouts.
This model operates within a temperature range of -25°C to 70°C, allowing for versatile use in various industrial settings.
It is designed for panel mounting and features a screw terminal for easy and secure installation.
The switch supports contact voltages up to 600V AC/DC and a contact current rating of 12A.
The actuator style is round, and it features a green color for visibility.
The switch has a chromium-plated metal body and silver alloy contacts, ensuring durability and high conductivity.
It is ideal for industrial, automation, manufacturing, and outdoor electrical applications due to its robust design and features.
The spring return mechanism allows for momentary control, meaning the switch returns to its original position when released.
Yes, it is designed to be repairable by the end user, supporting sustainability and longevity in use.
This model is part of the Harmony XB4 series, known for its durability and reliability in challenging environments.
