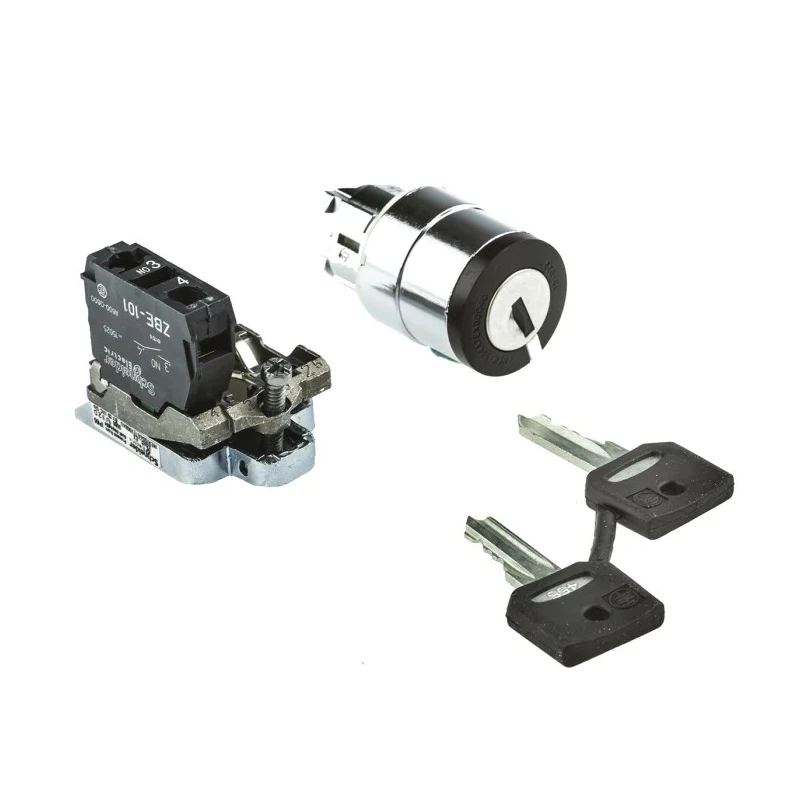

Schneider Electric Key Switch 1 NO 2-Way, IP65 Rated, 455-Key, Harmony Series XB4

Schneider Electric XB4BG41EX key switch is a high-performance, IP65 rated device designed for industrial and commercial use, operating at contact voltages up to 600V AC/DC. It is part of the Harmony XB4 series, offering compact size with a 22 mm mounting diameter and a lightweight chromium-plated metal body that is highly resistant to corrosion.

This key switch features a Ronis 455 key lock with a 90° index angle and left-handed key withdrawal position. Its 1 NO (Normally Open) 2-way switching configuration with stay put operation ensures secure and precise control for safety-critical applications.

The device is rated for 3,000,000 mechanical cycles, ensuring extended durability. It has screw-type terminals for reliable connections and a silver alloy contact material to maintain conductivity and longevity.

Protection features include IP65 ingress protection, compliance with IEC 60529 standards, NEMA 13 and 4X ratings, and enhanced ingress protection up to IP69k. It withstands overvoltage category 1 requirements and includes short circuit protection via a 10 A cartridge fuse, enhancing operational safety in harsh environments.

Additional safety and durability standards met include IEC 60536, IEC 50102 IK06 mechanical protection, CSA, UL, and JIS ratings. The key switch also offers shock resistance from 30/50 gn according to IEC 60068-2-27, making it reliable for equipment subject to vibration and impact.

This product is ideal for controlling dangerous equipment, such as motors requiring human intervention, and managing lighting in public spaces including restrooms and corridors. Operates with Ronis 455 key lock and left-handed withdrawal.

IP65 ingress protection and IP69k rated for severe environments. Durable chromium-plated metal body with corrosion resistance. Rated for 3,000,000 mechanical and electrical cycles. Compliant with multiple international standards for safety and performance.

Designed for industrial, electrical, and automation applications.

Schneider Electric’s Harmony XB4 range combines reliability, compact design, and enhanced protection, making this Key Switch suitable for a wide range of industrial and commercial uses. Explore the full range of Schneider Electric switch components and solutions at EnvMart for your automation and electrical system needs.
