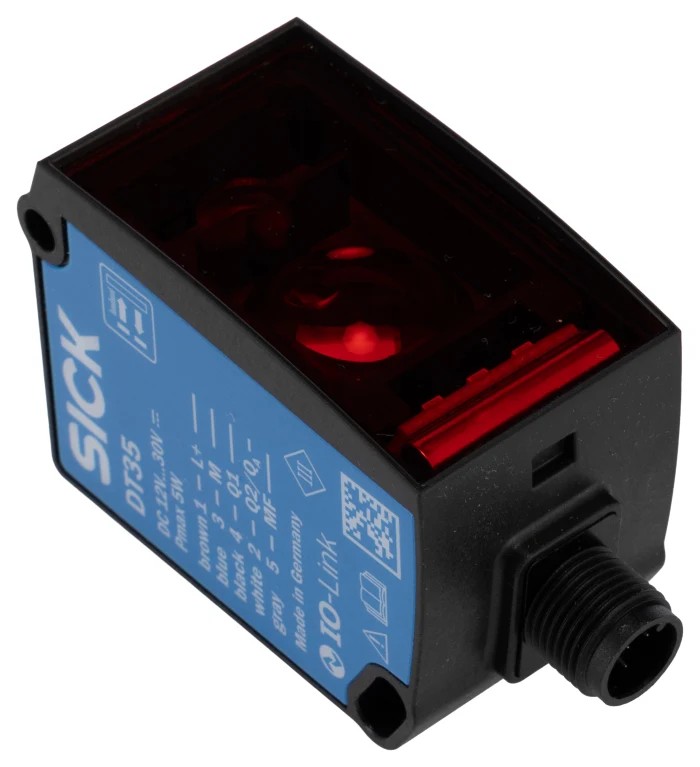

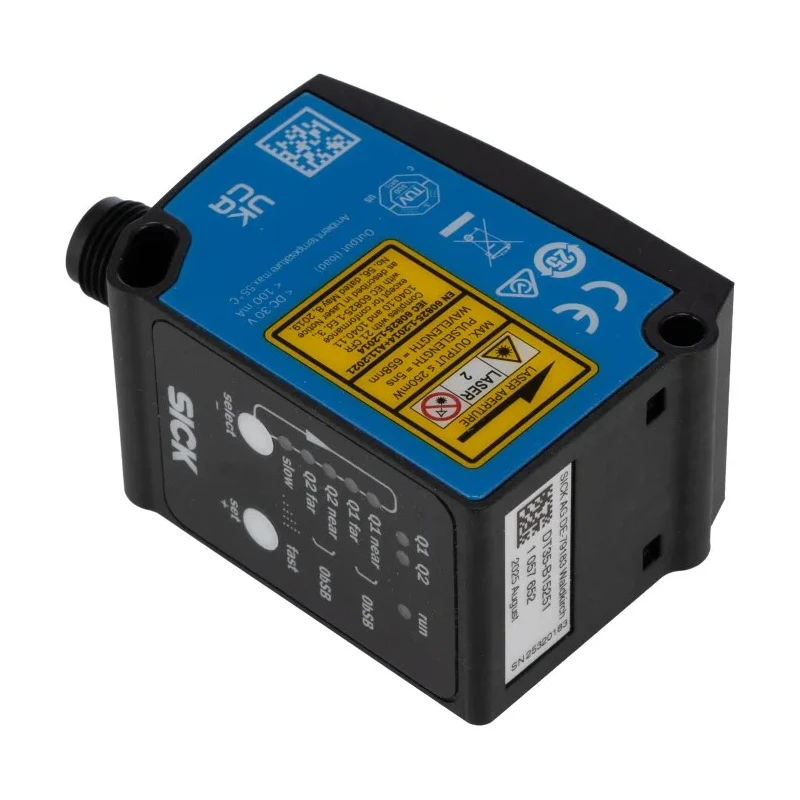

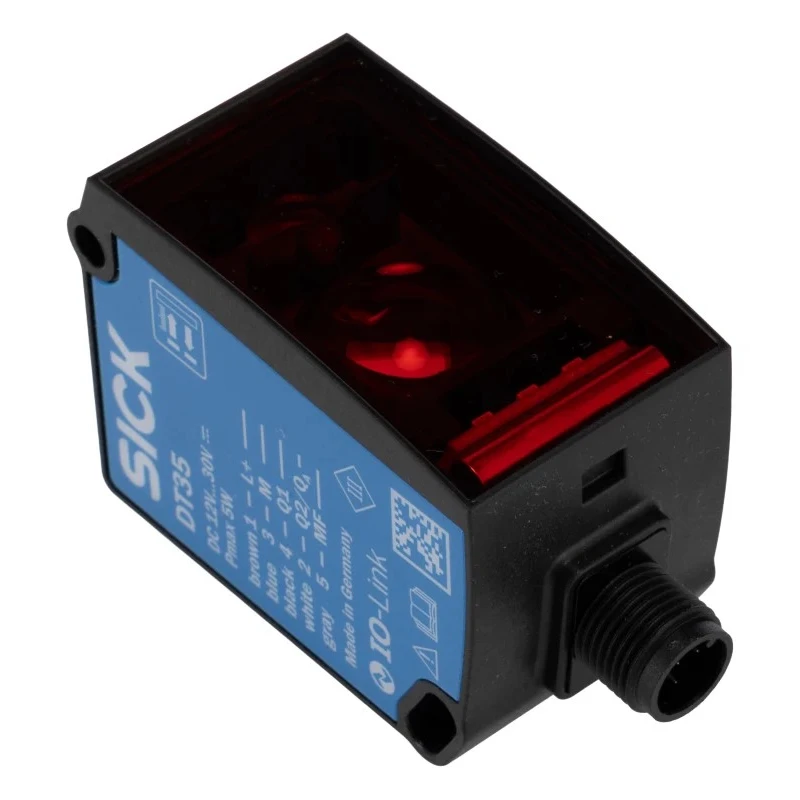

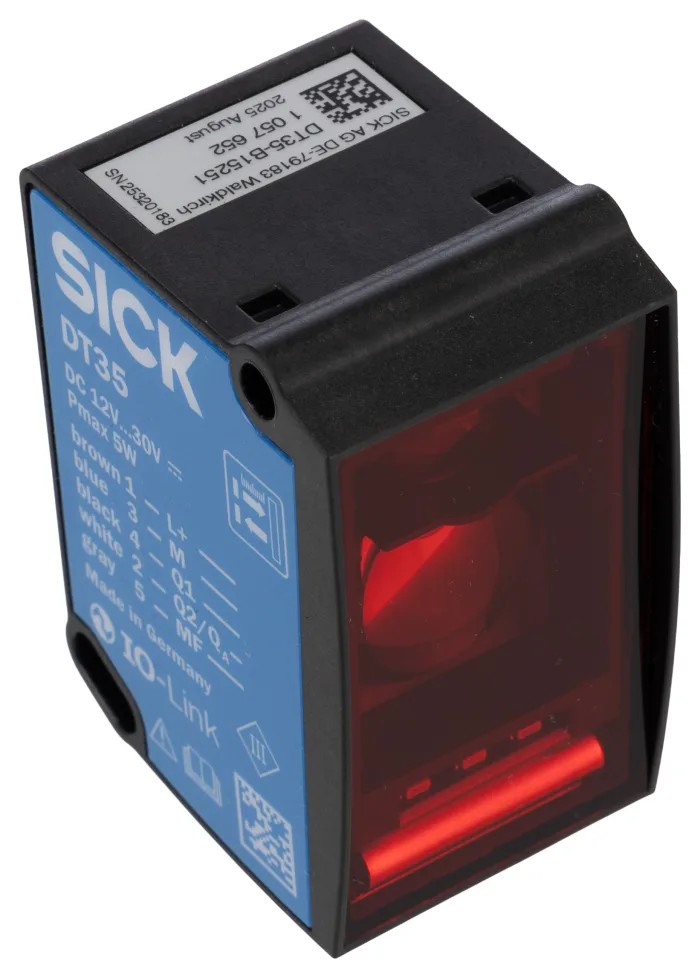

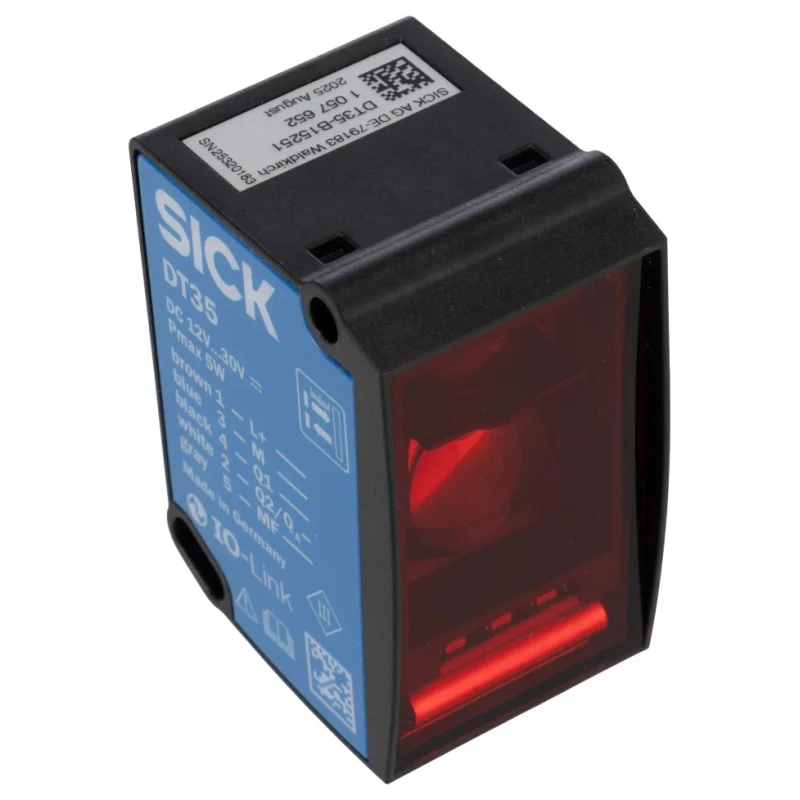

SICK Laser Distance Sensor Block Style 0.05 mm to 12 m Detection Range Analogue PNP/NPN NO/NC IP67 IP65 DT35-B15251
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Light Source | LED |
| Detection range | 0.05 mm → 12 m |
| Model | DT35-B15251 |
| IP Rating | IP67, IP65 |
| Mount Type | Panel |
| Housing Material | ABS |
| Output type | Analogue, PNP/NPN NO/NC |
| Series | Dx35 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -30°C |
| Maximum Current | 100mA |
| DetectIon Type | Laser |
| Terminal type | 5-Pin M12 |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Materials Detected | Natural Object |
| Sensor Style | Block |
Key Features
- Features robust block sensor design for easy panel mount integration.
- Provides flexible analogue output configuration adaptable for current or voltage modes.
- Operates reliably within temperature range of -30°C to 55°C.
- Rated IP67 and IP65 for excellent environmental protection.
- High resolution measurement with 0.1 mm accuracy and ±10 mm precision.
- Supports IO-Link communication for enhanced control and diagnostics.
- Compact dimensions 32mm x 58.67mm x 42.7mm with lightweight 65g housing.
- Compatible with natural object detection using laser technology.
Product Description
SICK DT35-B15251 laser distance sensor is an industrial-grade block sensor designed for precise and reliable measurement applications. It delivers highly accurate distance sensing from 0.05 mm up to 12 meters with flexible analogue, PNP, and NPN Normally Open/Normally Closed output options including IO-Link interface for advanced system integration.
The sensor's compact ABS housing and panel mounting style ensure easy installation in automated machinery, robotics, manufacturing quality control, and logistics environments. It meets stringent environmental ratings with IP65 and IP67 protection, enabling operation in challenging industrial conditions.
Designed to operate between -30°C and +55°C and capable of withstanding up to 95% relative humidity, the DT35-B15251 maintains accurate measurements with a resolution of 0.1 mm and accuracy of ±10 mm. Multiple response times and switching frequencies from 2.5 ms to 96.5 ms make it adaptable for varying speed requirements.
Electrical connectivity is provided via a 5-Pin M12 connector supporting a maximum voltage of 30 V dc and current up to 100 mA. The sensor detects natural objects using LED laser source technology, conforming to EN 60068 environmental standards for shock, vibration, and climate.
Robust block sensor design for industrial automation integration. Wide detection range from 0.05 mm to 12 m with high accuracy. Multiple output types: analogue, PNP/NPN NO/NC with IO-Link interface. IP65 and IP67 sealing for harsh industrial environments.
Compact size and light weight facilitate flexible installation. Suitable for object detection, distance measurement, level sensing, and quality control. Meets international standards including EN 60068 series.
This SICK laser distance sensor model DT35-B15251 serves diverse industries including manufacturing, robotics, storage systems, and logistics by providing precise, low-power distance and object detection capabilities. EnvMart offers this Sensor for professionals seeking reliable industrial sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range from 0.05 mm to 12 meters.
It supports analogue output as well as PNP and NPN Normally Open/Normally Closed output options.
The sensor operates reliably within a temperature range of -30°C to +55°C.
The compact dimensions of this unit are 32 mm x 58.67 mm x 42.7 mm, and it weighs 65 grams.
Electrical connectivity is provided via a 5-Pin M12 connector, supporting a maximum voltage of 30 V dc and current up to 100 mA.
It is rated IP67 and IP65, providing excellent protection against dust and water ingress.
It is designed to detect natural objects using laser technology.
This sensor utilizes an LED light source for its operation.
It provides a high resolution of 0.1 mm and an accuracy of ±10 mm.
The SICK DT35-B15251 is designed for panel mounting, facilitating easy integration into various applications.
Yes, it supports IO-Link communication for enhanced control and diagnostics.
It is suitable for applications in automated machinery, robotics, manufacturing quality control, and logistics environments.
