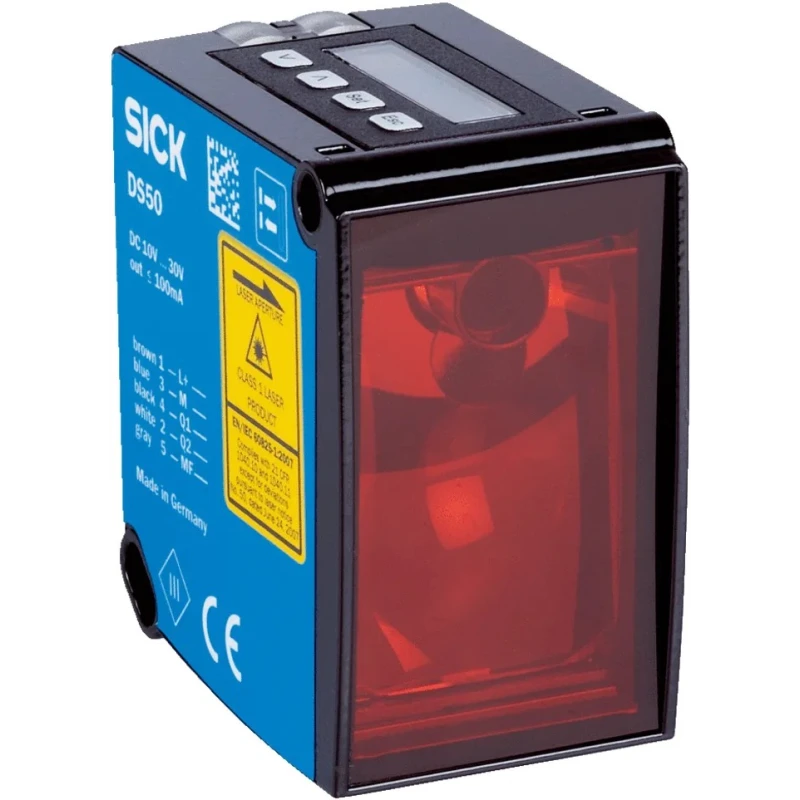

SICK Distance Sensor Block Sensor 200 mm to 10 m PNP Output IP65 DS50-P1112

SICK DS50-P1112 distance sensor is a block sensor designed for industrial automation and control gear applications. It provides accurate distance detection from 200 mm up to 10 m using advanced HDDM™ time-of-flight technology, ensuring reliable and precise measurements regardless of the object color.

The sensor features a robust die cast zinc housing with an IP65 rating, protecting it against dust and water ingress, thus allowing it to function reliably in harsh environmental conditions. Mounting is facilitated via a panel mount type with a 5-pin M12 terminal interface, supporting versatile installation needs.

Designed for use within a temperature range of 30°C to 65°C, the DS50-P1112 supports PNP output with a maximum DC voltage of 30V and maximum current of 100mA. Its fast response time of 20 to 30 milliseconds allows high-speed data acquisition, suited for demanding industrial processes. The sensor supports IO-Link communication along with LAN and multifunctional inputs, enabling seamless integration and full process control from commissioning to maintenance.

The built-in intuitive display simplifies commissioning via easy-teach options and wireless features, reducing setup times and operational costs. This sensor is engineered to withstand ambient light interference and extreme temperature variations, making it suitable for diverse manufacturing, material handling, and inspection environments.

Certified with EAC, cULus, and CE standards, the DS50-P1112 ensures compliance and safety in industrial setups. Manufactured in Germany, it embodies high precision, durability, and advanced sensing capabilities for modern automated systems.

Utilizes patented HDDM™ time-of-flight technology for accurate measurement. Compact die cast zinc housing suitable for panel mounting applications. Operates reliably within 30°C to 65°C temperature range. Equipped with 5-pin M12 terminal and supports IO-Link communication.

Response time between 20 and 30 milliseconds for high-speed detection. Durable IP65-rated enclosure ensures resistance against harsh environmental conditions. Capable of detecting natural objects with a maximum current of 100mA and max DC voltage of 30V.

Complies with EAC, cULus, and CE standards for industrial safety. Designed and manufactured in Germany to high quality standards. Ideal for automation, control gear, and industrial sensing applications. Explore more Sensors and automation solutions on EnvMart to optimize your industrial control systems.
