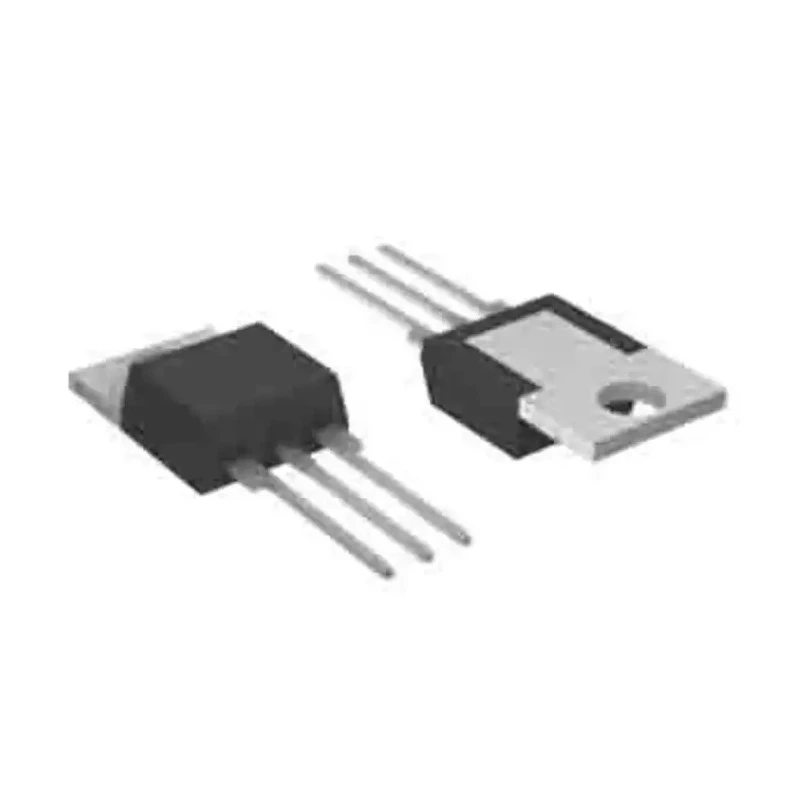

Littelfuse Thyristor SCR 600 V, 16 A, 10 mA Gate Trigger Current, 225 A Surge Current SV6016L2TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Model | SV6016L2TP |
| Mount Type | Through Hole |
| Series | SVxx16xx |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220L |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 225A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 35mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
Key Features
- This thyristor features a TO-220L package for reliable power dissipation.
- It supports a repetitive peak reverse voltage of 600 V for robust operation.
- The device has a surge current rating of 225 A to handle peak loads.
- Maximum gate trigger current is 10 mA, allowing precise control triggering.
- With a low gate trigger voltage of 1.5 V, it offers easy activation in circuits.
- It supports a maximum holding current of 35 mA ensuring stable conduction.
- Rated for operation in temperatures from -40°C up to 150°C for harsh environments.
- Compliance with RoHS standards guarantees reduced hazardous substances.
Product Description
Littelfuse SV6016L2TP is a high-performance SCR thyristor with a 600 V repetitive peak reverse voltage and 16 A rated average on-state current. It comes in a TO-220L package type for through-hole mounting, designed to be durable and reliable for industrial electronics use.
The device features a maximum gate trigger current of 10 mA and a maximum gate trigger voltage of 1.5 V, allowing for low-power gate activation and efficient switching control. It supports a surge current rating of 225 A, enabling it to handle transient overload conditions without damage.
Operating temperature range from -40°C to 150°C makes this component suitable for demanding environments, including industrial, manufacturing, and power management applications. The maximum holding current of 35 mA ensures stable on-state operation.
Littelfuse SV6016L2TP complies with RoHS environmental standards, ensuring minimal hazardous material content and eco-friendly production processes. This thyristor is widely used in power control circuits, motor controllers, and electronic switching applications where efficiency and reliability are critical.
The device's three-pin design facilitates easy integration into existing PCB layouts with through-hole mount configuration. It belongs to the SVxx16xx series that is known for durability and consistent performance in power electronics.
Its robust construction supports applications in industrial power converters, heating controls, and automated manufacturing systems. The moderate voltage and high surge current ratings make it versatile for various medium power electronic systems.
For engineers and designers, Littelfuse SV6016L2TP offers a dependable solution combining efficiency, thermal performance, and environmental compliance. Explore EnvMart’s semiconductor and Thyristor component categories for more power control devices suitable for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this thyristor is 150°C.
This model has a surge current rating of 225 A, allowing it to handle peak loads effectively.
The rated average on-state current for this thyristor is 16 A.
It supports a repetitive peak reverse voltage of 600 V, providing robust operation.
The maximum gate trigger current for this thyristor is 10 mA, allowing for precise control triggering.
This thyristor comes in a TO-220L package type, suitable for through-hole mounting.
The minimum operating temperature for this thyristor is -40°C, making it suitable for harsh environments.
The maximum gate trigger voltage for this model is 1.5 V, facilitating easy activation in circuits.
The maximum holding current for this thyristor is 35 mA, ensuring stable conduction.
This thyristor complies with RoHS standards, ensuring reduced hazardous substances in its production.
This model features a three-pin design, facilitating easy integration into existing PCB layouts.
It is commonly used in power control circuits, motor controllers, and electronic switching applications.
