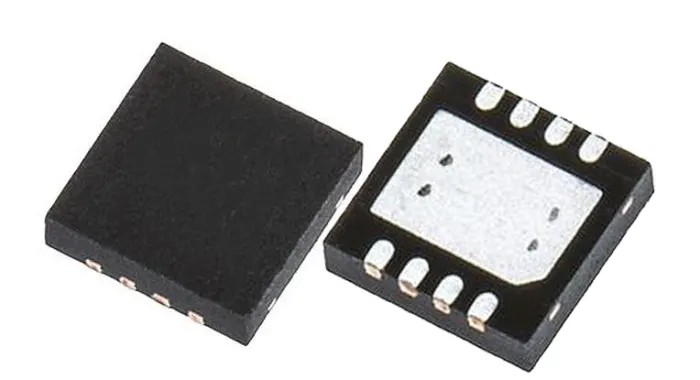

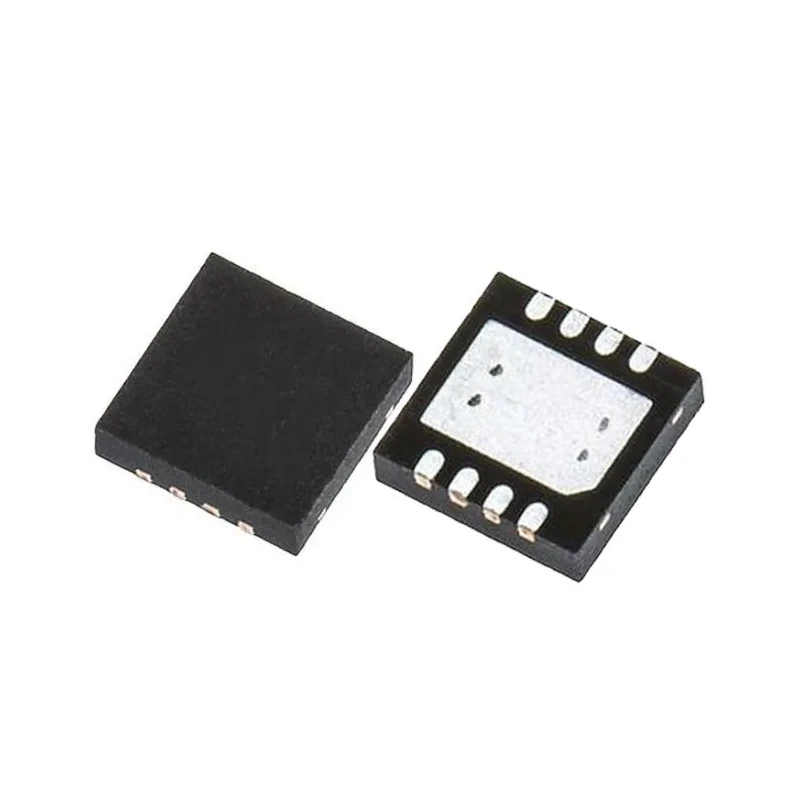

STMicroelectronics Operational Amplifier 50 MHz Gain Bandwidth, 8-Pin DFN Surface Mount, 2.2-5.5V TSV792IQ2T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.6mm |
| Length | 2.15mm |
| Model | TSV792IQ2T |
| Width | 2.15mm |
| Mount Type | Surface |
| Series | TSV792 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.2V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 20 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 75 pA |
Key Features
- Operates with supply voltages from 2.2V to 5.5V ensuring flexibility in power design.
- Single channel configuration designed for high performance amplification.
- Offers low input bias current of 20 pA for sensitive signal applications.
- Compact dimensions measuring 2.15mm by 2.15mm with a 0.6mm height thickness.
- Meets RoHS compliance and automotive standard AEC-Q100 for industrial robustness.
- High slew rate of 30 V/μs for fast signal response times.
- Wide operating temperature range from -40°C to 125°C suitable for harsh environments.
- Output current capability up to 40mA enabling drive of various loads.
Product Description
The STMicroelectronics TSV792IQ2T is a high-performance operational amplifier designed to meet demanding industrial and automotive applications. Featuring an 8-pin DFN surface mount package, it delivers a gain bandwidth product of 50 MHz, making it suitable for precision analog signal processing tasks.
Operating over a wide voltage range of 2.2 V to 5.5 V, this amplifier is versatile for various low-power systems. Its single-channel configuration simplifies design integration, while the low input bias current of 20 pA and input offset voltage of 700 μV ensure high signal fidelity.
With a high slew rate of 30 V/μs, it effectively handles fast-changing signals. The device supports an output current up to 40 mA, providing adequate drive to loads in embedded and industrial systems. It complies with RoHS directives and meets the automotive AEC-Q100 standard, demonstrating reliability for automotive electronics.
Physically compact at 2.15 mm x 2.15 mm x 0.6 mm, the TSV792IQ2T fits densely packed PCB layouts. Its broad operating temperature range from -40°C to 125°C allows it to function in extreme environments such as automotive under-hood electronics or industrial automation equipment.
Operates from 2.2 V to 5.5 V supply voltages. Single-channel, 8-pin DFN surface mount package. Gain Bandwidth Product of 50 MHz. Input bias current 20 pA and input offset voltage 700 μV. Slew rate of 30 V/μs for rapid response.
Output current capability 40 mA. RoHS compliant and automotive AEC-Q100 qualified. Operating temperature range -40°C to 125°C. Compact dimensions: 2.15mm by 2.15mm by 0.6mm. Perfect for power electronics, automation, and microcontroller applications.
This Operational Amplifier is an excellent choice for industrial automation, power management, instrumentation, and automotive electronics. Its combination of high performance and small footprint makes it suited for embedded designs requiring precision and reliability.
Explore more semiconductor and amplifier products in the Electronics & Electricals category at EnvMart to find components tailored to your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 50 MHz, making it suitable for precision analog signal processing tasks.
It operates with supply voltages ranging from 2.2 V to 5.5 V, providing flexibility for various low-power systems.
This operational amplifier can provide an output current capability of up to 40 mA, allowing it to drive various loads effectively.
The dimensions of the TSV792IQ2T are 2.15 mm x 2.15 mm with a height of 0.6 mm, making it compact for dense PCB layouts.
It features a low input bias current of 20 pA, which is beneficial for sensitive signal applications.
The maximum operating temperature for this operational amplifier is 125°C, suitable for harsh environments.
It has a high slew rate of 30 V/μs, enabling fast signal response times for dynamic applications.
Yes, it meets RoHS compliance and the automotive standard AEC-Q100, ensuring reliability for automotive electronics.
The input offset voltage for this model is 700 μV, which helps maintain high signal fidelity in applications.
This operational amplifier is packaged in an 8-pin DFN surface mount configuration, facilitating easy integration into designs.
It is designed with a single-channel configuration, simplifying design integration for various applications.
This model is suitable for industrial automation, power management, instrumentation, and automotive electronics due to its high performance and compact size.
